BIGLUX—Mobile Solar Trailer Manufacturer For 10+ Years

Mobile CCTV Trailer with Backup generator 1
Mobile CCTV Trailer with Backup generator 2
Mobile CCTV Trailer with Backup generator 1
Mobile CCTV Trailer with Backup generator 2

Mobile CCTV Trailer with Backup generator

50L fuel tank backup generator Solar Powered Large Capacity Batteries Surveillance Trailer

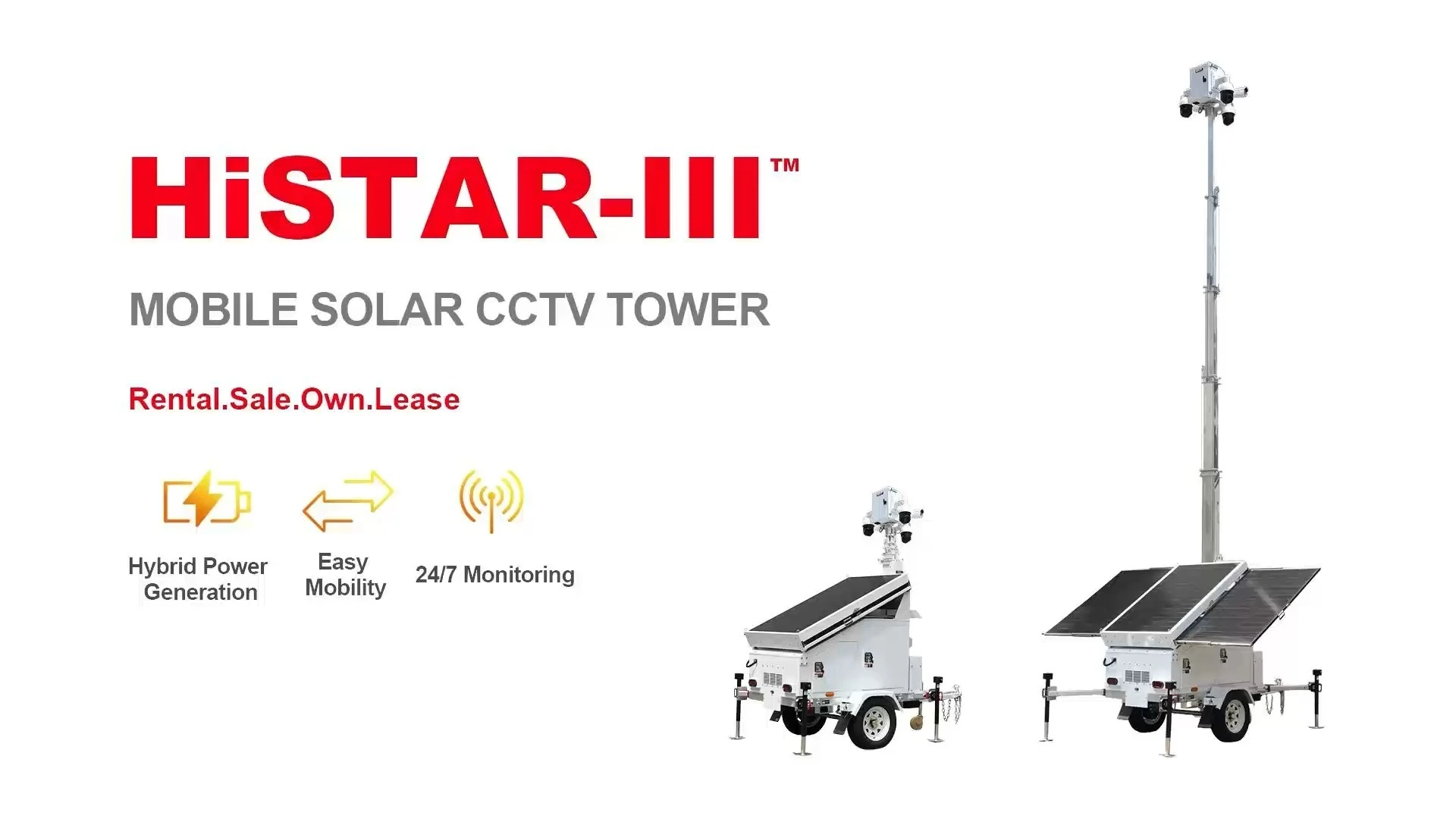

HiStar-III mobile surveillance trailer is a fully mobile security unit that delivers rapid, flexible protection without the need for permanent power or internet. They are designed for temporary security needs or remote deployments where traditional cameras aren’t practical.

Key components of solar surveillance trailers include:

  • High-definition cameras with options for thermal or panoramic lenses
  • Backup generators keep the system from going offline
  • Telescopic mast for wide-area visibility
  • Solar panels with battery storage for continuous uptime
  • Cellular connectivity for live video transmission
  • Visible deterrents such as lights, sirens, and loudspeakers

Surveillance trailers are ideal for construction projects, city events, parking lots, utility sites, and other high-risk environments. They help security teams protect assets, deter threats, and respond to incidents in real time.

5.0
AC Charger:
YES
Camera:
PTZ or bullet cameras as an option
Solar Panel:
3 x 450W Solar panels
Lead_Time:
30days
Place of Origin:
China
design customization
Chariging time
Around 9 hours under good sunlight condition
Recommended Loading
70Kg
Lifting
Electrical or Manual
Diesel generator
YES
PoE Switch
8 port POE Switch
Solar panel design
Bi-facial design
Router
4G/5G Router

Mobile Surveillance Trailer with Backup Generator

HiStar-III is a high performance Solar Powered CCTV Trailer. It delivery quick, off-grid security solution in remote area, construction site and

Mobile CCTV Trailer with Backup generator 3
Our in-house designers and engineers have produced countless great designs for customers from different industries
未标题-3 (10)

CONFIGURATIONS:

Solar Panel: 1pcs 460W, LONGi MonoCrystalline solar panel

Battery: 1pcs 200Ah 12V lithium batteries with 2400Wh

Lamp: 2pcs 50W LED lights with different lens

Output: 15000lm in total, dimmable

CCT: standard 5000K (other available)

Light efficiency: 150lm/W

Controller: 40A MPPT,95% Efficiency

Mast: Steel Q235,Square Telescopic type,4.5 m,3 Sections, Manual Winch Lifting, recommend load 5-50kg Load

From the light to the end, it is approx 4.1 meter

Base: Durable Base,4× Forklift Holes

Charging Time: 4.4 hours with good sunshine

Running Time: 19.2 hours for 100W with full charge

Weight: 350kg

Base weight: 250kg

Weight with sands: approx 800kg

Mobile CCTV Trailer with Backup generator 5
High brightness led lights with 15000lm.
未标题-2 (2)
Energy saving, dimmable functions according to applications.

Some details of the Block Mobile Solar Light Tower 100W

Mobile CCTV Trailer with Backup generator 7
The solar panel at top is 360 degree rotation and 90 degree tilt.
未标题-3 (12)
The solar panel at top is 360 degree rotation and 90 degree tilt. It can satisfy different latitudes and different locations.
未标题-3 (14)
LFP Lithium battery with 4000 cycles at 80% DOD, long life span.
未标题-2 (5)
MPPT controller with approx 95% high efficiency.
未标题-2 (4)
There are 4 1000kg/each for HIAB hooks. This Block Mobile Solar light tower 100W is small but stable enough for your applications.
未标题-3 (13)
There are doors for pouring sands to keep more stable. Hot dip galvanized forklift base which has longer using life. And no worry about destory the powder of steel.
Mobile CCTV Trailer with Backup generator 13
COMPANY STRENGTH

The 100W mobile solar light tower is small than trailer version. It is easily being relocated and can be widely used. But it is strong and durable. Trapezoidal construction lower the center of gravity, the base cover 1 sqm area ,catch the ground tightly to keep stable again. The weight of base is 250kg, together with sands in the base, it is approx 800kg. It's could keep the unit in stable situation.


If more details, please contact us. Biglux cooperates with reliable suppliers, choose high quality materials and pays attention to details. Hope we can be your partner here.
