BIGLUX- Mobile Solar Trailer And Solar Generator Manufacturer For 10+Years

Diesel Genset Solar Hybrid CCTV Tower

Hybrid 5kw diesel genset mobile solar cctv tower for sport event rental

Solar Panel:

4 x 460W Monocrystalline Silicon

Battery:

19200Wh lead acid batteries

Controller:

40A MPPT, 95% Efficiency

Mounting Box:

With box easy for cameras installation

Spring Cable:

2*cat6+ 2*supply

Genset:

5kW diesel or petrol with charger and hybrid system

Mast:

6.5 meter galvanized telescopic mast

Lifting:

manual winch lifting

Trailer:

US/AU/EU standard hitch and backlights

Forklift Holes:

2 at back

Charging Time:

8.8 hours by sun

Inverter:

Optional

Model:

HS4604G-9EH

Inquiry

Write a Review

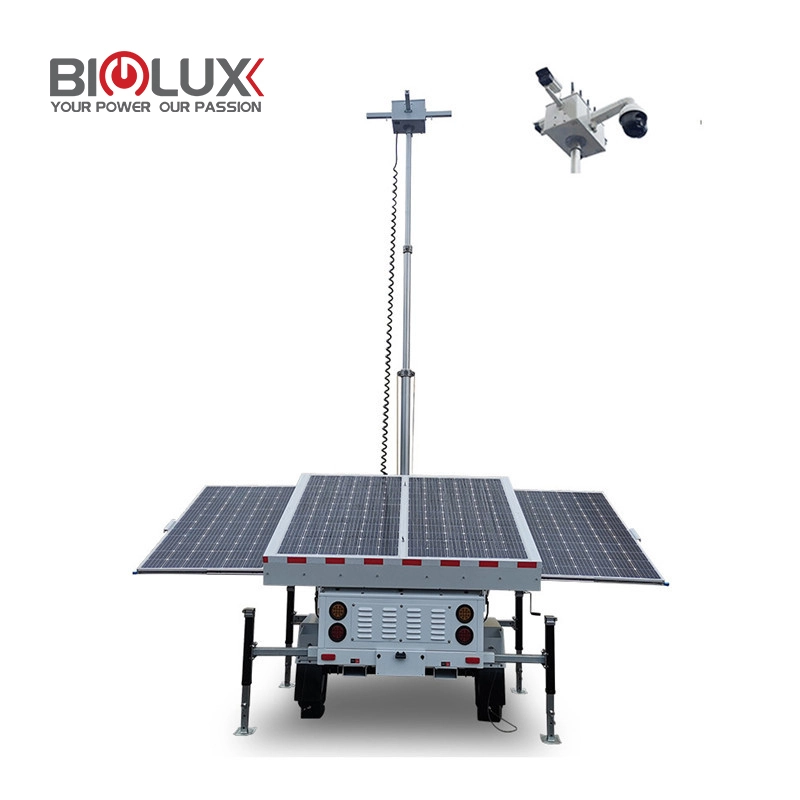

Diesel Genset Solar Hybrid CCTV Tower

Biglux 5kw diesel genset solar cctv tower with hybrid system for sport event, not only be selling but also can be rental. Some customer do not want to spend too much money to buy a cctv tower, they can choose rent. It can be used for different sport events. Like boxing match event set up, baseball event set up, behind the scenes set up etc. With 5kw diesel genset, if there is no enough sunshine, people can use the genset as back up to make sure 24/7 working status.

CONFIGURATIONS:

Solar Panel: 4pcs 460W, LONGi MonoCrystalline solar panel.

Battery: 8pcs 200Ah 12V lead acid batteries with 19200Wh capacity

Mounting box: With mounting box for easy connections of cameras, for example, you can connect 4 cameras, 2 ptz and 2 bullet.

Spring cables: 2 cat6 and 2 power supply cables combined together in the spring cables.

Controller: 40A MPPT, 95% Efficiency; with hybrid system for the genset.

Genset: 5kW/kVA genset of Diesel or petrol with charger;

While detecting power is enough, the genset work automatically.

Mast: Steel Q235,Square Telescopic type,6.5 m, 6 Sections, Manual Winch Lifting, recommend load 5-50kg Load

Charging Time: 8.8 hours with good sunshine

Running Time: with full charge of batteries, it can support 120W continuous working 128 hours at 80% DOD, while support 85 hours for 180W devices.

Drawer type design with good sliders, saving space and protecting the solar panels

With mounting box and spring cables, you can put a POE switch in the mounting box for more cameras connections

PTZ cameras, Bullet cameras, etc, cameras with different functions could be installed easiy.

Diesel Genset Solar Hybrid CCTV Tower 10

Even led lights, cameras, warning lights, and speakers can be added together accoring to your applications.

Diesel Genset Solar Hybrid CCTV Tower 11

Diesel Genset Solar Hybrid CCTV Tower 12

If more details of Diesel Genset Solar Hybrid CCTV Tower, please contact us. BIGLUX's mobile solar diesel power CCTV towers are recognized by the majority of consumers. They have novel designs and fine workmanship. And they are quality and affordable. Because we always adhere to the 'quality first', product quality is fully guaranteed. BIGLUX is highly recommended by our trustworthy partners.
