OEM & ODM Solar Cctv Trailer Price List | BIGLUX

Battery:
6 × 200Ah,DC12V,14400W·h
Controller:
60A MPPT,95% Efficiency,Hybrid
Spring Cable:
2 × Cat6 + 2 × Supply
Trailer:
US/EU/AU Standard,Ball Hitch,Single Axle,Manual Outrigger
Place of Origin:
China
Inquiry

Product details of the solar cctv trailer


Quick Detail

solar cctv trailer is trusted by customers because of their high quality and excellent performance. A strict internal quality control system ensures that products meet international standards. The product follows the international market trends and thus meets the constant changing needs of customers.


Product Description

BIGLUX Mobile Solar Power will show you product's specific details below.

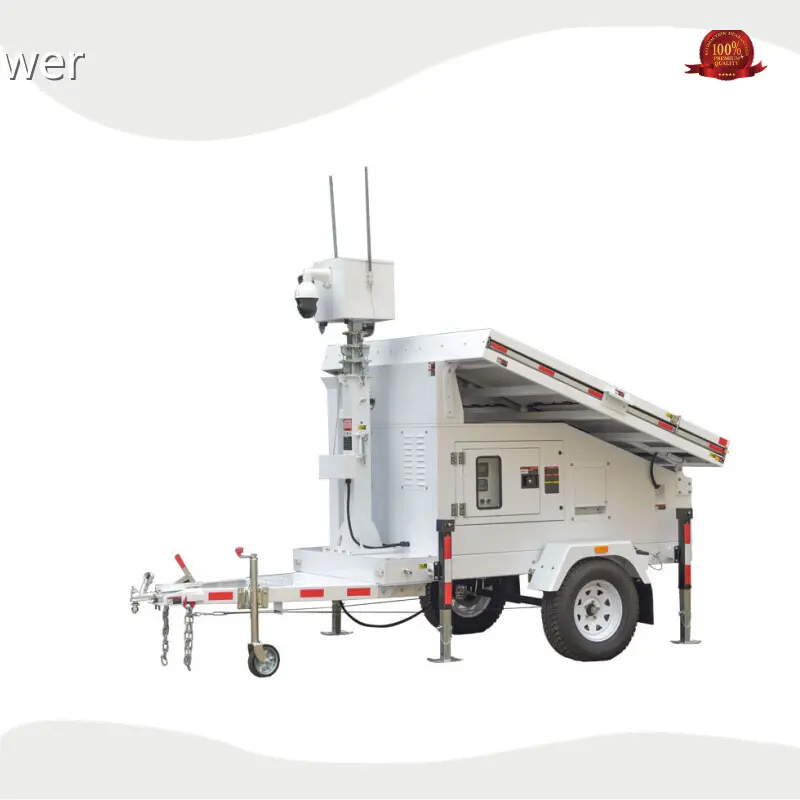

1380w off grid hybrid solar surveillance tower HS4603G-6.5MH for security

Biglux 1380w off grid hybrid solar surveillance tower HS4603G-6.5MH is good for security your job site, withing 3kw gasoline genset, with EPA emission standards for North America. The control panel includes the controller of the hybrid system, press AUTO, when the battery is low, the generator will start charging itself. The generator is placed on the slider, pull out to move, easy to maintain and disassemble.

Configurations:

Solar Panel: 3* 460W, Monocrystalline Silicon

Battery: 6*200Ah,DC12V, 14400W·h lead acid batteries

Spring Cable: 2 × Cat6 + 2 × Supply

Gasoline Genset: 3kW/3kVA,AC220V/110V,EPA

Lampls: 2*100W led lights with 150lm/W, total 30000lm

Mast: Steel Q235, Square Telescopic type, 6.5 m, 5 Sections, Manual Winch Lifting,70kg Load,117kph Windproof

Trailer: Trailer:US/EU/AU Standard,Ball Hitch,Single Axle,Manual Outrigger

Charging Time: 8.8 hours with good sunshine

Running Time: 20 days for 120w

The generator is placed on the slider, pull out to move, easy to maintain and disassemble.

 There is a hybrid mould on the mppt controller, the button in the middle of the red box, as long as the light is on, it means it will start itself.

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 11

Doing assembly of the off grid hybrid solar surveillance tower in the workshop

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 12

The volume of off grid hybrid solar surveillance tower would be larger than our regular tower. Becausse the genset has been included, we have to enlarge the trailer size.

Good qualit sliders:

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 13

Led lights details, it is 2*100w led lights,3000lms.

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 14

Mudguard details

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 15

Mudguard details

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 16

Smoke  exhaust pipe

OEM & ODM Solar Cctv Trailer Price List | BIGLUX 17

The basic principle for Biglux 1380w off grid hybird solar surveillance tower HS4603G-6.5MH is good for security as following:

The controller (hybrid module) is connected to the battery voltage port of the solar controller.

Once the battery voltage falls below the set value, then the unit controller will automatically start the generator.

The output of the generator is already connected to the battery charger, which is connected to the battery pack.

The alternating current from the generator will be converted to direct current through the battery charger and flushed into the battery pack.

If you want to know more details about Biglux HS4603G-6.5MH 1380w off grid hybrid solar surveillance tower for security, please call us or email us. We will look forward to hearing from you.
