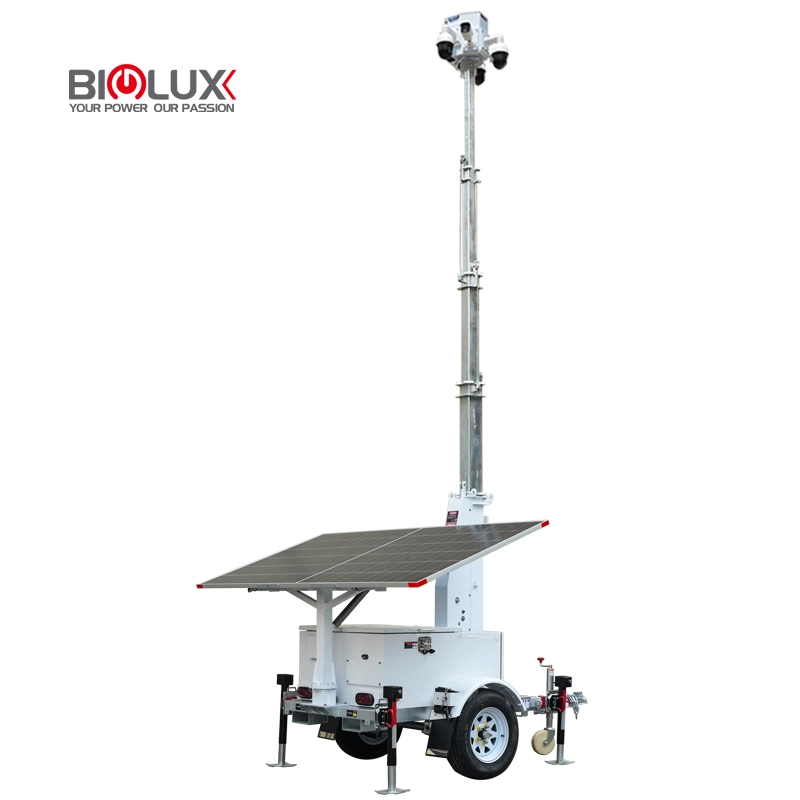

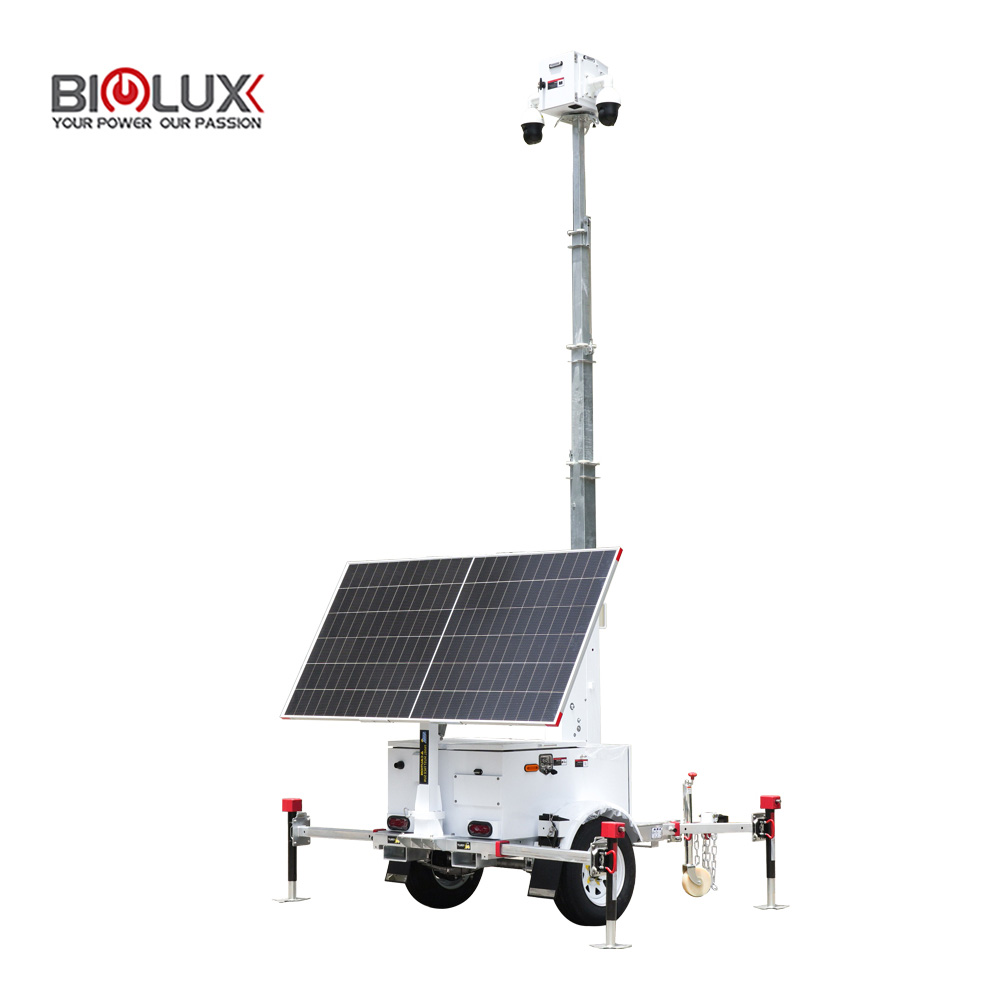

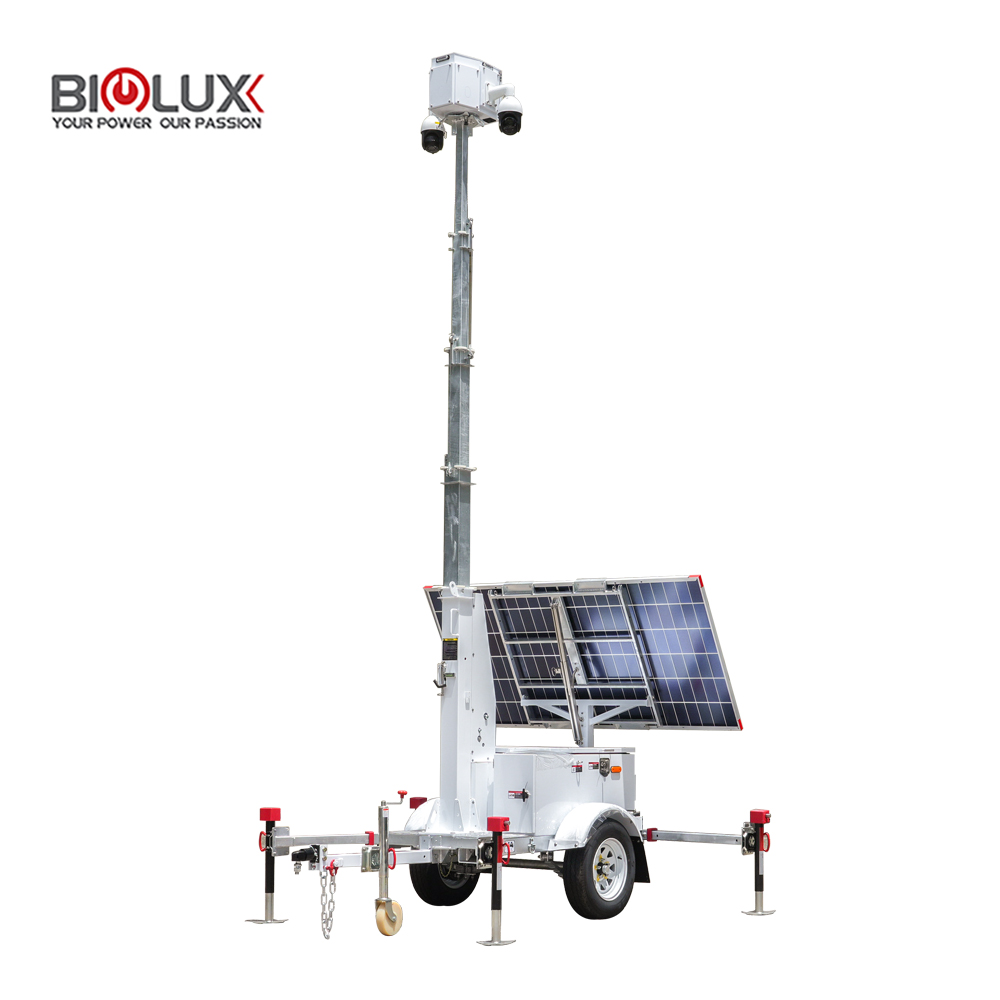

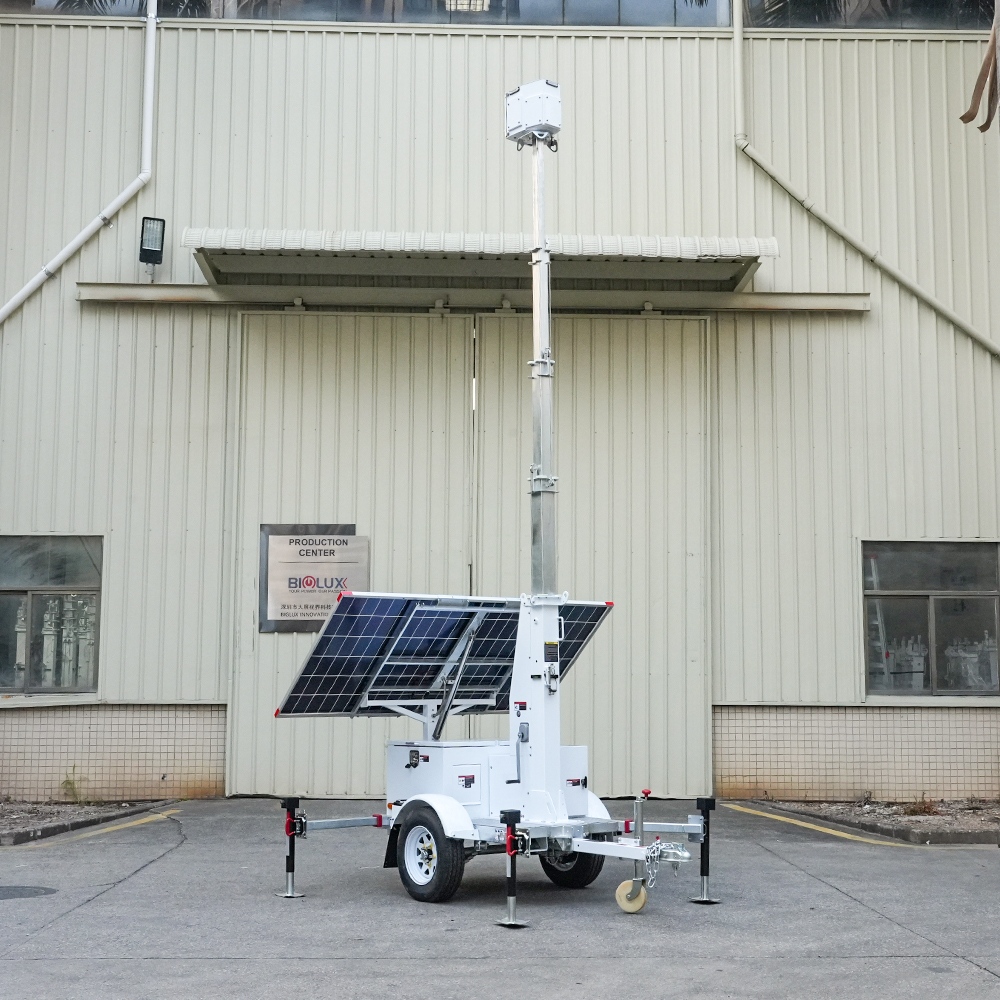

HiSITE Compact Solar CCTV Trailer | Agile Off-Grid Security

Our video content intuitively presents product introductions, functions, and on-site application scenarios, helping you quickly grasp core value at a glance.

The HiSITE compact solar CCTV trailer is tailored for small-scale, space-constrained scenarios:

• Small construction job sites (narrow work zones)
• Temporary pop-up event security (fairs, local markets)
• Small parking lots (retail stores, community centers)
• Remote rural property perimeters (limited access areas)
• Utility substation monitoring (compact footprint fits restricted yards)

1. Compact & Agile Mobile Design (Space-Saving Advantage)

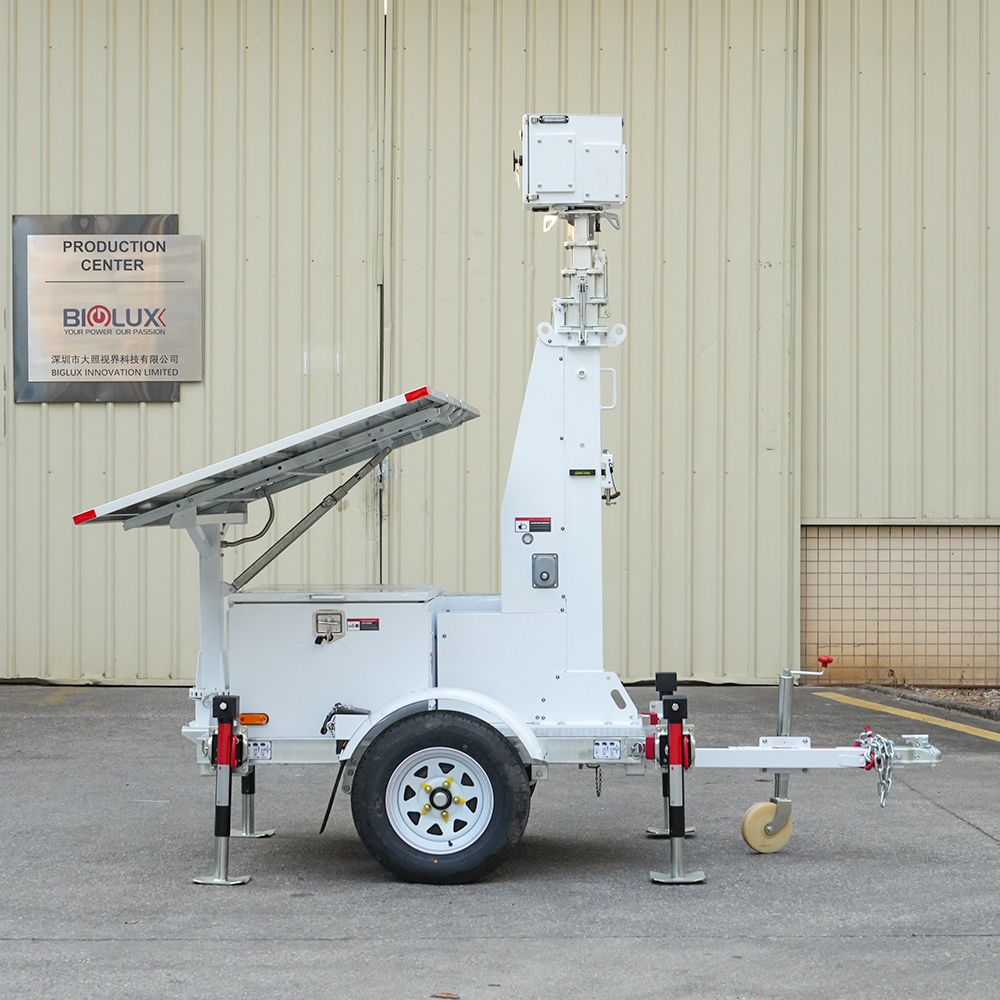

Built for tight spaces, the HiSITE mobile solar CCTV trailer features a condensed chassis  – much smaller than conventional solar security trailers—making it maneuverable in narrow construction lanes, small parking lots, or constrained event perimeters. Key mobility highlights:

Lightweight gross weight: 850KG (Basic Version) / 880KG (Pro Version) for easy towing via standard pickup trucks

Efficient logistics: 8 units fit in a 20' container, 18 units in a 40' container (low shipping costs for bulk orders)

Quick setup: Foldable outriggers and manual mast operation enable deployment in 15 minutes (no heavy equipment needed)

Perfect for "compact mobile security solutions"—a top search term for small-business or temporary-site users.

2. High-Efficiency Bifacial Solar Power (Dual-Sided Energy Capture)

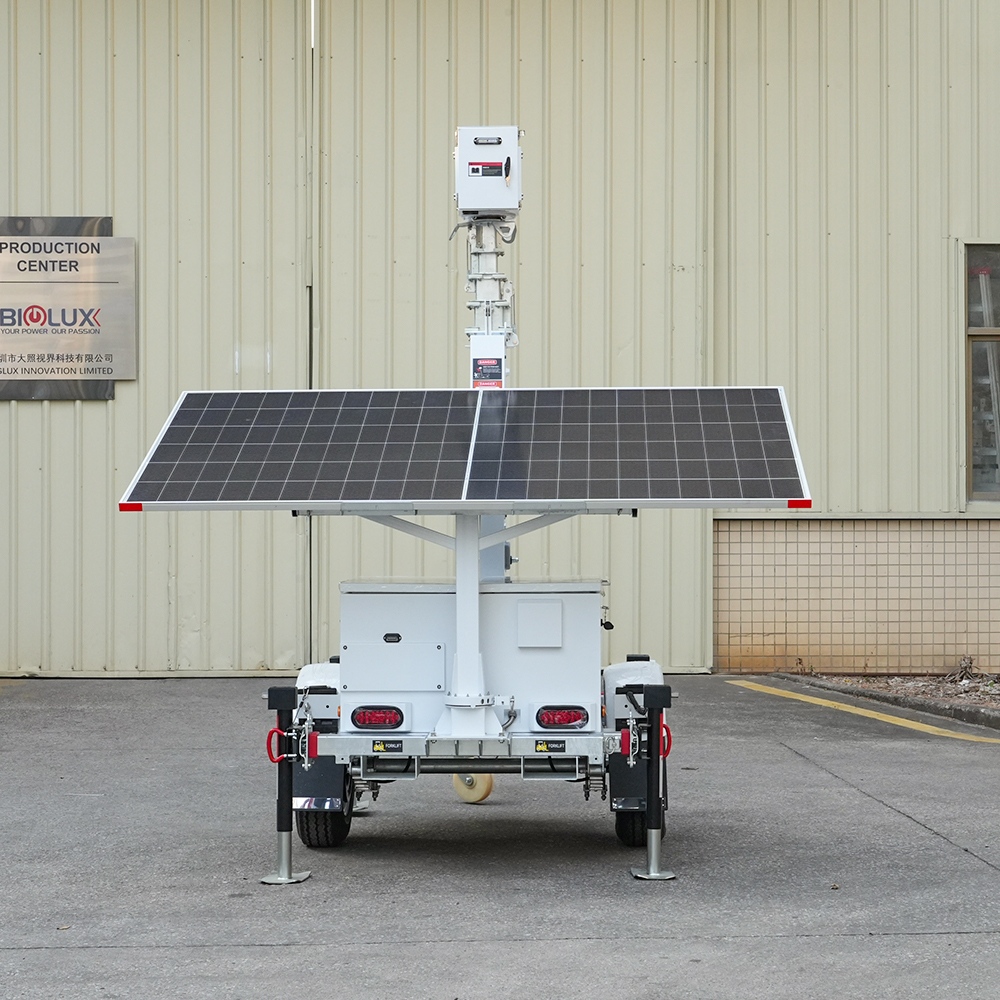

Equipped with a 1×600W bifacial solar panel (manual 0°–60° rotation + 30°–60° tilting), the HiSITE trailer maximizes sunlight absorption from both front and rear panels—boosting energy capture by 25% vs. single-sided panels. It offers two power configurations (aligned with your site load needs):

Basic Version (GEL Battery): 6000WH capacity, 8-hour solar charging time, 72-hour backup under 60W load

Pro Version (LFP Battery): 7168WH capacity, 8.5-hour solar charging time, 72-hour backup under 80W load

Universal 1.5kW AC charger (110V/230V) for optional grid backup

All systems run on DC 24V (with 48V/45V options) – ensuring "off-grid solar security" reliability in remote or power-free locations.

3. 6.5M Durable Telescopic Mast (Stable, Long-Lasting Coverage)

The HiSITE trailer's 6.5M telescopic mast is constructed from hot-dip galvanized steel (zinc coating for corrosion resistance)—built to withstand harsh outdoor conditions. Features include:

Manual lifting winch for easy height adjustment

Built-in wiring (no exposed cables) to prevent tampering or damage

Stable support for the 350° rotatable CCTV box (maximizing surveillance range)

Ideal for "low-maintenance solar CCTV mast" applications—reducing upkeep costs for long-term deployments.

4. 360° Comprehensive Surveillance & Deterrence

The 6-sided, back-opened CCTV box (350° rotatable) enables full-site coverage, while integrated features deliver proactive security:

Blue/white strobe light for instant visual deterrence of unauthorized activity

Optional accessories: Cameras, NVR, 4G router, and loudspeaker (customizable for your site needs)

Seamless connectivity (4G/Wi-Fi/IP) for remote monitoring—aligning with "remote solar surveillance" high-search trends

Perfect for detecting intrusions, monitoring small construction zones, or securing temporary event perimeters.

5. All-Weather Rugged Performance

Engineered to operate in extreme environments, the HiSITE trailer meets "all-weather solar security" standards:

Working temperature range: -20℃ to 55℃ (adapts to frigid winters or scorching summers)

Weather-resistant construction (sealed wiring, durable chassis) for dust, rain, and humidity resistance

Long service life: Hot-dip galvanized mast and heavy-duty components reduce replacement costs

As a cost-effective, agile solar surveillance trailer, the HiSITE delivers:

• Much smaller footprint than standard models (fits tight spaces)
• Bifacial solar efficiency for reliable off-grid operation
• Low logistics costs (high container packing density)
• Customizable configurations (Basic/Pro versions + optional accessories)

Invest in the HiSITE compact mobile solar CCTV trailer—your agile, eco-friendly security solution for small-scale sites that demand big performance.

Our specialized packaging protects your products intact, and our precise logistics guarantees their safe, on-time global delivery.

* Sample Shipment: 1 solar CCTV tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.

 * Bulk Shipping: 8 units can be loaded into a 20GP container. 18 units fit perfectly into a 40HQ container.
