High definition surveillance cameras with mobile trailer with solar generator off grid solar system for working site security monitoring
Mobile surveillance trailer with solar generator tower specification:
Base System
Brand: | BIGLUX |
Name: | Solar CCTV trailer |
Model: | HS4603G-6M |
Material: | Steel Q235 |
Powder: | Outdoor Type |
Transport: | 2300×1600×2200 (mm) |
Operate: | 3200×3400×6200 (mm) |
Weight: | 1150kg / 2550lb |
System Voltage: | DC24V |
Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
Solar Panel: | 3 × 460W |
Battery System
GEL: | 6 × 200Ah,Free-main,Deep-cycle |
Voltage: | DC12V |
Series & Parallel: | 2 in series, then parallel |
Power Capacity: | 14400W·h |
CCTV System
Box: | Square type |
Device: | Switch |
Control System
Solar Controller: | MPPT,60A |
Efficiency: | 95%+ |
Detection & Protection: | Short-Circuit,Overload,High Voltage |
Whole Machine: | Battery Isolator,Device on-off |
Mast System
Body: | Aluminum Alloy 6063,Hard Anodized |
Type: | Round Telescopic |
Height: | 6m / 20ft |
Section: | 4 |
Spring Cable: | 2 × Cat6 + 2 × Power Supply |
Lifting Method: | Manual Winch |
Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
Windproof: | 117km/h / 73mph |
Trailer System
Standard: | US / AU / EU |
Tow Hitch: | 50mm / 2'' Ball Type |
Trailer Light: | 7 Pin |
Outrigger: | 4 × Manual Galvanized |
Warranty: | 2 years |

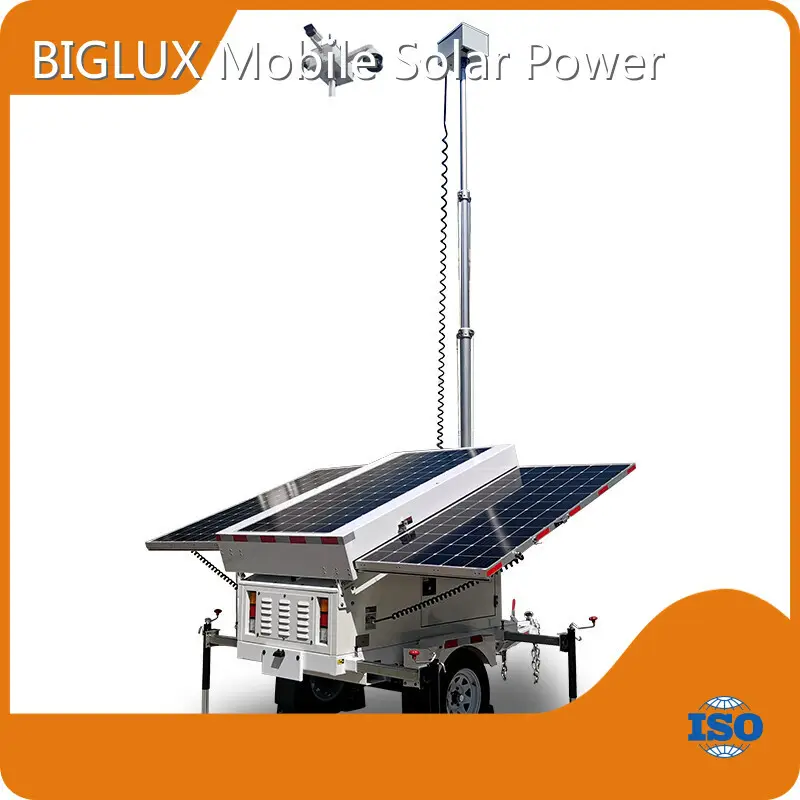

Mobile surveillance trailer with solar generator tower photo for reference.
Marketing News
While panel prices rose in 2021, the cost of solar power continued to fall
Global solar prices fell by an average of 13 per kilowatt-hour from 2020 prices, as about two-thirds of new renewable capacity installed last year was cheaper than the lowest-cost fossil fuel alternatives.
Global solar levelled kilowatt-hour costs (LCOE) fell 13 per cent last year, despite sharp increases in material costs and panel prices.
This is partly because many large solar projects around the world have long lead times and contractual clauses that limit costs, according to a new report released this week by the International Renewable Energy Agency (IRENA). The result is a global solar cost of $0.048 / KWH, IRENA's research suggests. In 2021, China's solar LCOE again reached its lowest level of $0.034 / KWH; Australia's solar LCOE has fallen sharply, to $0.042 / KWH, 21% cheaper than in 2020. Japan, meanwhile, fell 17% year on year to $0.086 per KWH.
India offers the second cheapest solar energy in the world at $0.035 / KWH, which can be attributed in part to the country's lowest PV project cost of $590 / KWH of installed power generation capacity, 6% lower than the price of Chinese solar farms. Solar power plant investment costs declined in most major global markets in 2021, but pre-war policy uncertainty in Ukraine increased project expenses by 17% Yoy, resulting in a solar LCOE of $1.117 / KWH.
Project costs in Spain also rose by 3%, reflecting the highly competitive unsubsidized power plants that were connected to the grid in 2020 (but not on the same scale last year), when average project development costs were $916 / kW and LCOE was $0.048 / KWH. Last year, Vietnam reported a solar LCOE of $0.046 per KWH, while the cost per unit of power in the U.S. was $0.055 and in Turkey $0.064.
The report's authors noted that last year's suppressed solar price increases could affect the market this year, leading to a 3 to 5 per cent rise in project costs in the world's 10 largest solar markets, or $20 to $60 per kilowatt installed. This represents a 2 to 4 per cent increase in the cost of utility-scale solar power globally and a 2 per cent increase in the cost of solar power globally.
But the document also notes that this year's spike in the price of fossil fuels, particularly natural gas, means significant cost savings from the solar capacity added last year -- and accumulated so far. "It is still worth noting that more efforts have not been made over the past nine months to accelerate the deployment of renewable power generation in 2022," the report said.
IRENA estimates that new solar capacity added last year reduced the cost of electricity generation by about $11.3 billion compared with today's fossil fuel costs, including $1.3 billion in savings in non-OECD countries. The report adds that at current fossil fuel prices, new solar power in these countries between 2010 and last year could save about $2.7 billion a year.
IRENA's top figure says that almost two-thirds (163GW) of the new clean electricity capacity added in 2021 was installed at a lower cost than the cheapest fossil fuel alternatives.
BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years.
If you have any interested Mobile surveillance trailer with solar generator tower, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.
Looking forward to hearing form you!
Company Advantages
· Stringent quality testing for BIGLUX mobile security camera tower will be carried out at the final production stage. They include EN12472/EN1888 testing for the amount of nickel released, structural stability, and CPSC 16 CFR 1303 lead element test.
· The product naturally has the advantage of an orderly internal structure and stable chemical composition, crystal form, and physical properties.
· BIGLUX INNOVATION LTD is a professional company engaged in mobile security camera tower with highly advanced technology.
Company Features
· BIGLUX INNOVATION LTD started with mobile security camera tower production.
· BIGLUX has made a great success in improving the performance of mobile security camera tower.
· Doing the best to provide mobile security camera tower with highest quality is the aim of BIGLUX. Get quote!
Application of the Product
Multiple in function and wide in application, mobile security camera tower can be used in many industries and fields.
BIGLUX Mobile Solar Power insists on providing customers with one-stop and complete solution from the customer's perspective.
