Mobile CCTV Tower 4 Days for 80W Mobile CCTV Tower BIGLUX Brand
Product details of the mobile CCTV tower
Product Information
BIGLUX mobile CCTV tower captures the attention of customers with its functional and aesthetic design. Enhanced product quality is guaranteed with systematic quality improvement activities. The product features high economic value and wide market prospect.
Hikvision high definition cameras with mobile solar generator trailer 6 meters mast for security monitoring easy to deploy
Mobile cctv tower with solar generator trailer specification：
Base System
| Brand: | BIGLUX |
| Name: | Solar CCTV Trailer |
| Model: | HS3802G-6M |
| Material: | Steel Q235 |
| Powder: | Outdoor Type |
| Dimension: | Length×Width×Height |
| Transport: | 1900×1500×1100 (mm) |
| Operate: | 2900×2500×6200 (mm) |
| Weight: | 800kg / 1764lb |
| System Voltage: | DC24V |
| Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel: | 2 × 380W,Monocrystalline Silicon |
| Voltage: | DC42V |
Battery System
| GEL: | 4 × 150Ah,Free-main,Deep-cycle |
| Voltage: | DC12V |
| Series & Parallel: | 2 in series, then parallel |
| Power Capacity: | 7200W·h |
CCTV System
| Box: | Square type |
| Device: | Switch |
Control System
| Solar Controller: | MPPT,Hybrid 30A |
| Efficiency: | 95%+ |
| Detection & Protection: | Short-Circuit,Overload,High Voltage,High Temperature |
| Timer: | Dusk & Dawn |
| Whole Machine: | Battery Isolator,Device on-off |
Mast System
| Body: | Aluminum Alloy 6063 Hard Anodized |
| Type: | Round Telescopic |
| Height： | 6m / 20ft |
| Section: | 4 |
| Spring Cable: | 2 × Cat6e + 2 × Power Supply |
| Lifting Method: | Manual Winch |
| Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof: | 117km/h / 73mph |
Trailer System
| Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Axle: | Single Suspension |
| Outrigger: | 4 × Manual Galvanized |
Accessories
| OperationManual | Parts Manual | Controller Manual | Allen Wrench | Hex Wrench |

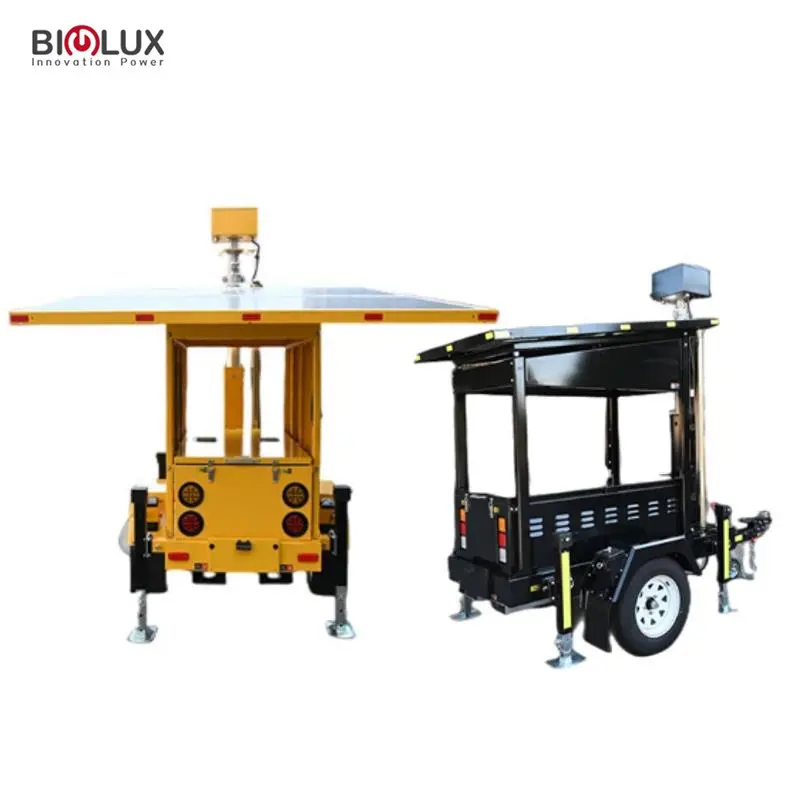

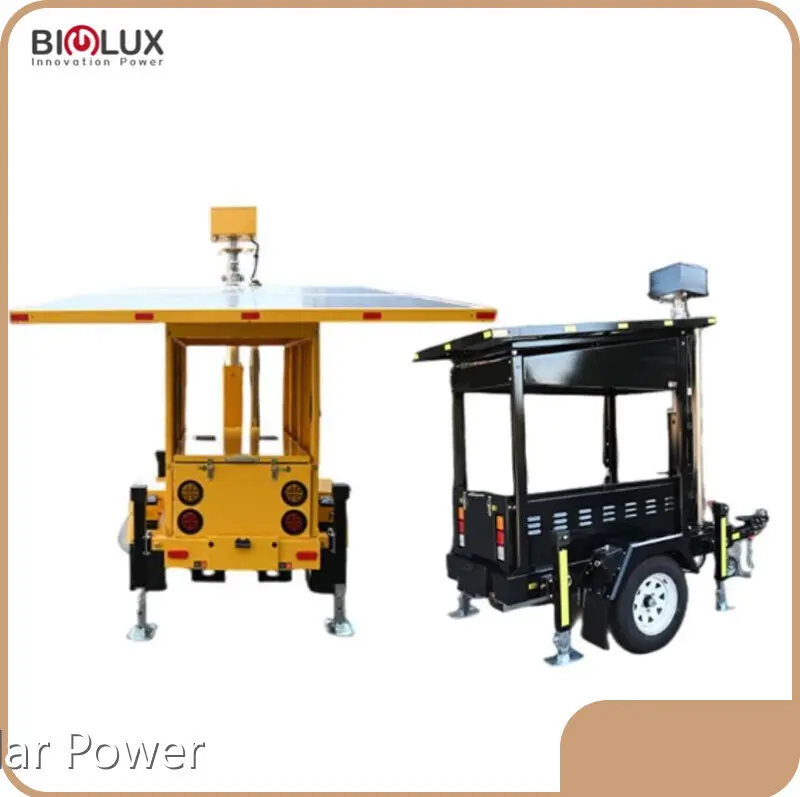

Mobile cctv tower with solar generator trailer photo for reference.
