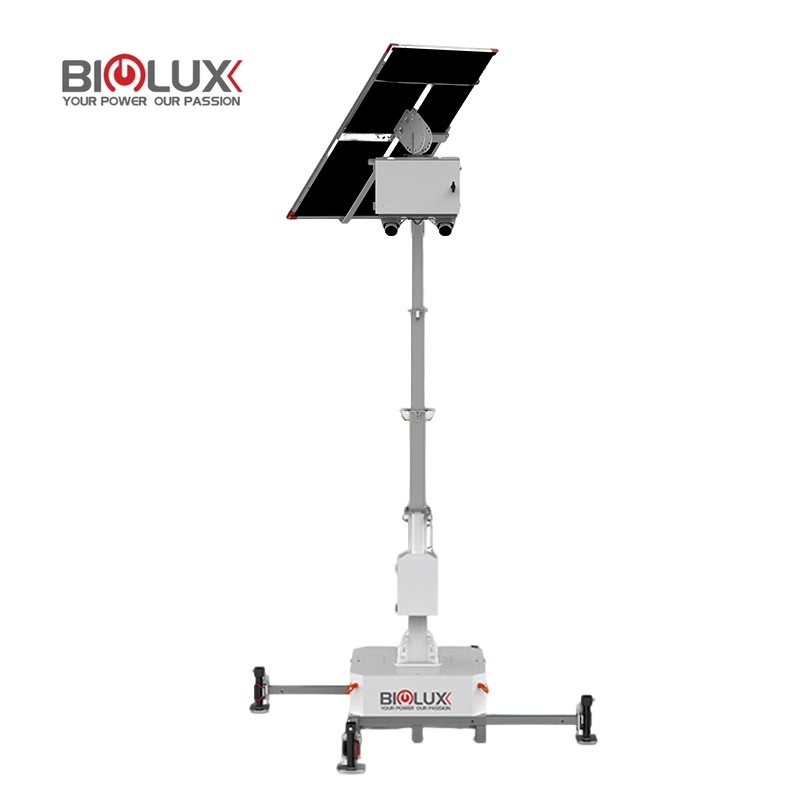

Mobile CCTV Tower with 4m Telescopic Mast and PTZ Security Camera
- Product Type: HiGuard Portable Solar Surveillance Tower, a smart solution designed for rental scenarios, delivering solar-powered outdoor security.
- Solar Panel: 450W double-sided monocrystalline panel, ensures high power generation with no “power anxiety”.
- Flexible Deployment: Solar panels support 180° rotation + 90° tilt, maximizing sunshine exposure for flexible setup.
- CCTV Box: Integrates 2560Wh lithium battery, features temperature-controlled cooling fan and optional AC input.
- Camera Mounting: Quick-install plate with DC24V/48V output, enables easy camera setup.
- Telescopic Mast: 4m height, hot-dip galvanized (anti-rust), provides broad vision for long-term outdoor use.
- Forklift Base: Facilitates easy movement, with lifting rings for handling.
- Rental-Centric Advantages: Free installation, low maintenance, cost-effective, and efficient—perfect for flexible rental and outdoor security demands.
Video Description
Products Ddtails
Solar Panel
The solar panel of the system features four core specifications: 450W power output (for stable energy supply), double-sided monocrystalline structure (to enhance light absorption), higher power generation efficiency (compared to conventional panels), and no power anxiety guarantee (for continuous energy support).
It offers four main benefits: ✔ reliable power supply (450W output meets daily energy needs), ✔ enhanced energy production (double-sided design captures more sunlight), ✔ efficient energy conversion (higher power generation reduces energy waste), and ✔ worry-free usage (no power anxiety suits long-term outdoor scenarios).
The flexible adjustment function of the solar panel supports two key mechanical features: 180° rotation (for horizontal direction adjustment) and 90° tilt (for vertical angle adjustment), along with flexible deployment capability (to adapt to different installation sites) and maximum sunshine exposure design (to optimize light utilization).
It offers three main benefits: ✔ versatile angle adjustment (180° rotation & 90° tilt fits various terrains), ✔ easy site adaptation (flexible deployment saves installation time), and ✔ optimal energy harvest (maximum sunshine exposure boosts power generation).
CCTV Box
The CCTV box is equipped with four essential components: 2560Wh lithium battery (for energy storage), integrated MPPT controller (to regulate charging efficiency), optional AC input (for alternative power supply), and temperature-controlled cooling fan (to maintain internal temperature stability).
It offers four main benefits: ✔ long-lasting energy storage (2560Wh battery supports extended operation), ✔ efficient charging (integrated MPPT controller improves energy conversion), ✔ flexible power options (optional AC input adapts to different power sources), and ✔ stable performance (temperature-controlled fan prevents overheating).
Camera Mounting Plate
The camera mounting plate provides three key installation features: front/rear/bottom mounting positions (for multi-directional camera setup), quick installation design (to simplify assembly process), and DC 24V/48V output (to supply power for cameras).
It offers three main benefits: ✔ flexible camera placement (multi-position mounts fit different surveillance needs), ✔ time-saving setup (quick installation reduces labor costs), and ✔ compatible power supply (DC 24V/48V output matches most CCTV cameras).
Telescopic Mast
The telescopic mast has four core characteristics: 4m height (for elevated surveillance), hot-dip galvanized coating (with anti-rust performance), broader vision coverage (due to elevated height), and long-term outdoor use capability (adapt to harsh outdoor environments).
It offers four main benefits: ✔ extended surveillance range (4m height expands viewing angle), ✔ durable outdoor use (hot-dip galvanized coating resists rust), ✔ comprehensive monitoring (broader vision covers larger areas), and ✔ long service life (suitable for long-term outdoor deployment).
Forklift Base
The forklift base is designed with four practical features: forklift-compatible structure (for easy moving), 4 lifting rings (for safe hoisting), hollow base (for sand/gravel filling to enhance stability).
It offers four main benefits: ✔ convenient mobility (forklift base enables easy relocation), ✔ safe handling (4 lifting rings ensure secure hoisting), ✔ stable placement (hollow base with sand/gravel filling prevents tipping).
Products Specifications
| Product | HiGUARD Solar Surveillance Tower | |
| Solar Panel | 1 × 450W | |
| Panel Adjustment | 90°tiltable, 180°rotatable | |
| MPPT Controller | Epever / Victron | |
| Battery | 2560Wh, 1 × 200Ah DC12.8V | |
| Power Output | DC12V/24V/48V | |
| Mast & Height | 4 Sections, 4M, Hot-Dip Galvanized | |
| Mast Lifting | Manual Winch | |
| Outriggers | Optional | |
| Base | Hollow, Metal | |
| Lifting Ring | 4 × | |
| Optional Accessories | AC Charger, 4G Router, Loud Speaker, Cameras | |
| Charging Time | 4.8 hours | |
| Running Time | 72 hours on 30W | |
| Dimension(In Transit) | 1100*1100*2255mm | |
| Dimension(On Deployment) | 1100*1100*4410mm | |
| Weight | 400kgs | |
| QTY in 20' / 40' | 12 units / 26 units | |
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Industry, Rental, Job Site, and so on. | |
Cusstomized Color
Applications
Packaging & Logistics
Packaging Details
* Sample Shipment: 1 solar cctv tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 12 units can be loaded into a 20GP container. 26 units fit perfectly into a 40HQ container.
Logistics Highlights
We handle every step with precision-from using forklifts to load the well - packed solar surveillance towers onto trucks, to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
Company Profile
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.
FAQ
Can I customize the LOGO and colors on your solar trailer?
Yes, Color and LOGO can be customized.
Does this Higuard include a camera?
No, it doesn't. Generally, customers prefer to install cameras locally. To ensure a plug - and - play experience, we provide DC outputs of 24V/48V and ample CCTV box space for installation. Of course, if needed, we also offer Hikvision cameras and pre -installation services.
What are the standards for the electrical components of HiGUARD?
Our solar panels, MPPT controllers, batteries, switches, etc., are from well - known brands and all comply with various certifications such as CE and FCC.
What's the production lead time?
Standard sample is generally shipped within 2 weeks, batch orders is generally about 1 month. Please kindly consult our sales team for specifics.
How many cameras can this HiGUARD power?
The specific quantity depends on the power of the camera. Generally, our customers install one PTZ camera or 2 - 3 turret - type cameras. We have installation plates on the bottom, front and back of the box for customers to install.
Can the 4m mast be extended to 6 - 7m?
Not recommended. Due to the limited base area of HiGuard, excessive height may cause unstable center of gravity and safety hazards. 4m is the optimal height. For height extension, please choose our HiSolo model and consult our sales team for details.
What's the warranty period?
2-year standard warranty. During the warranty period, if any product failures occurs, we will provide technical support and free replacement parts.
