High Quality Solar Cctv Trailer for Military Base
Product details of the solar cctv trailer
Quick Detail
BIGLUX solar cctv trailer is designed by our proficient professionals who are full of years of experiences. The optimum quality and excellent performance makes the product the most sought-after product. BIGLUX INNOVATION LTD's superior customer service increases the professionalism and effectiveness of customer interactions.
Product Introduction
Our solar cctv trailer are perfect in every detail.
Video Description
Products Details

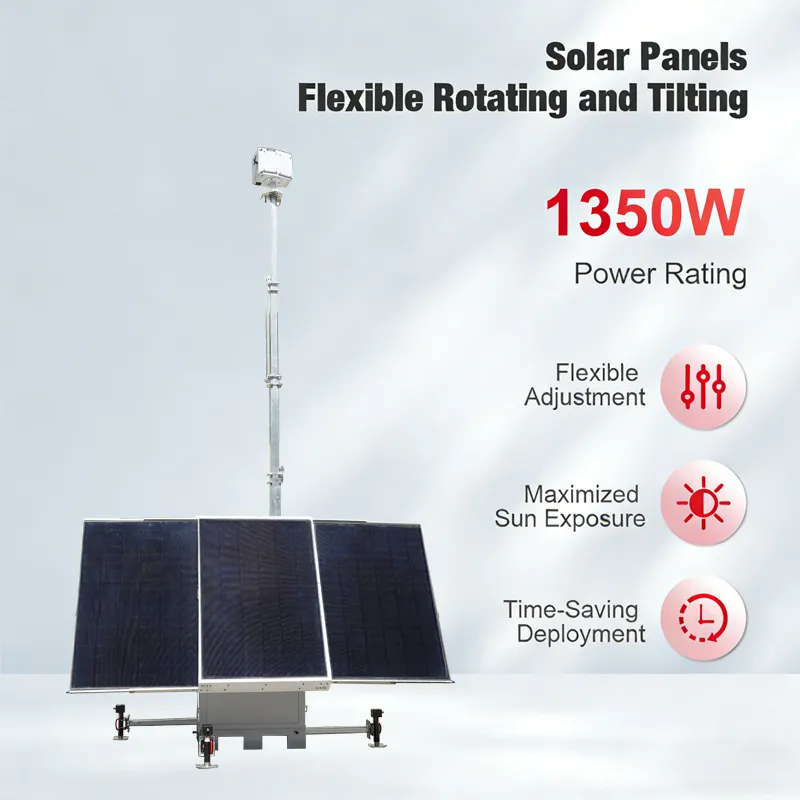

1. High-Power Solar Panels
High-Power Solar Panels: Equipped with 3×450W bifacial solar panels for higher efficiency. Features a foldable triple-panel design for easy deployment, same-direction panels to boost power generation, and electric angle adjustment adaptable to different latitudes.
2. Large-Capacity Battery
Large-Capacity Battery: Boasts a 15kWh high-capacity lithium battery. Comes with an independent battery compartment for enhanced safety and individual BMS protection for each battery and ensures sustained runtime even on rainy days.

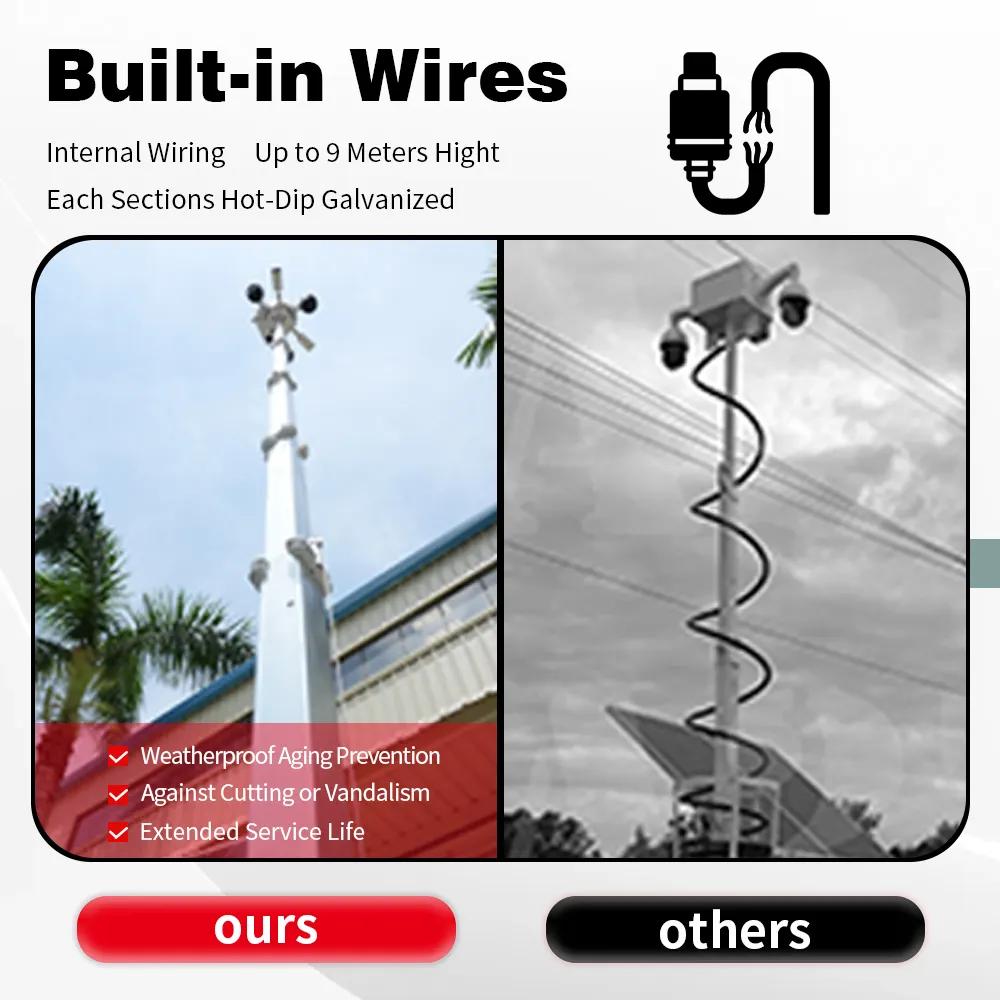

3. Built-in Wires
Vandalism Protection: Features multi-layer doors against theft and vandalism, embedded hinges with no exposed screws, and wires inside the mast to avoid intentional cutting.
4. Hot-Dip Galvanized
Rust Resistance: Utilizes hot-dip galvanized telescopic mast base and outriggers (zinc coating average thickness ≥100 μm) and outdoor powder-coated shell, offering rust-proof performance in long-term humid environments.
5. Waterproof
Waterproof Performance: Adopts an independent electrical and battery compartment design. With semi-sealed structure for direct water drainage and glue and rubber strip sealing, it prevents water seepage even in heavy rain.
6. Easy Maintenance
Easy Maintenance: Designed with three openable shell doors, an accessible electrical cabinet door, a 350° rotatable and back-opened CCTV box, and a built-in 8-port POE for plug-and-play use.
Products Specifications
| Product | HiCUBE Mobile Solar Surveillance Trailer Tower | |
| Models | BL3P-L7EHCS0B | BL3P-L7EHCS0P |
| Solar Panel Type | 0°-60° Electrical | |
| Solar Panel Wattage | 3×450W, Bifacial | 3×450W, Bifacial |
| Controller | 30A MPPT with remote battery monitoring | 35A MPPT with remote battery monitoring |
| Battery | LFP, 10240WH, DC 48V | LFP, 15360WH, DC 48V |
| CCTV Box | 350° Rotatable, 6-sided, back-opened, included 8-Port POE Switch, with blue&white strobe light, for surveillance system | |
| Cables | Built-in composite cable: Network Cable + Power Cable | |
| Telescopic Mast | 6.5 Meters, Electric Lifting System, Hot-dip Galvanized Steel, Built-In Wiring | |
|
Battery AC Charger
|
2.5kW AC 110V/230V | |
| Trailer Type | US/EU/AU Standard, Single Axle, Foldable Tow Bar, With Forklift Holes And Lift Rings | |
| Included Accessories | 8-Port POE Switch | |
| Working Temperature | -20°C-55℃ | |
| Solar Charging Time | 9 hours (estimated) | 9.6 Hours (Estimated) |
| Battery Backup Time | 72 Hours Under 114W Load | 72 Hours Under 170W Load |
| Optional Devices | Cameras, NVR, 4G Router, Loud Speaker | |
|
Extended Dimensions
|
3225*3600*6962mm
|
3225*3600*6962mm
|
|
Retracted Dimensions
|
1315*1385*2840mm
|
1315*1385*2840mm
|
| Gross Weight | 945KG | 990KG |
| Container Loading | 20GP:8 units, 40HQ: 18 Units | |
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Temporary Security, Traffic Monitoring, Rental, Job Site, and so on. | |
Packaging & Logistics
Packaging Details
* Sample Shipment: 1 solar CCTV tower sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 8 units can be loaded into a 20GP container. 18 units fit perfectly into a 40HQ container.
Logistics Highlights
We handle every step with precision—from using forklifts to load the well-packed solar surveillance towers onto trucks to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
Company Profile
BIGLUX is an integrated mobile solar solution manufacturer covering R&D, design, and manufacturing. Relying on cutting-edge solar trailer and tower technology, we integrate solar energy and battery systems to develop energy-efficient solar light towers, solar CCTV towers, and mobile power solutions.
These products are widely applied in commercial and industrial scenarios such as construction sites, outdoor parking lots, sports events, military bases, and emergency support, effectively meeting off-grid power needs. With decades of industry experience, our projects span North America, the Middle East, Europe, and beyond.
As a trusted growth partner, we are committed to providing low-maintenance, high-value assets to drive customers' operational success.
FAQ
Q: Can I customize the logo and colors on HiCUBE Tower?
A: Yes, color and logo can be customized.
Q: Does the solar trailer include a CCTV system?
A: No. Most clients prefer buying a bare tower and installing cameras locally. Our CCTV box is equipped with POE for easy connection, plus DC 24V/48V and AC 220V/110V options to ensure plug-and-play. We also offer Hikvision cameras and pre-installation service if needed.
Q: Can it operate at sub-zero temperatures in winter?
A: Yes. Our towers have multiple low-temperature solutions, such as thermal insulation cotton, battery heating pads, low-temperature lithium-sodium batteries, and a methanol fuel generator system. For specific solutions, please consult our sales engineers for recommendations.
Q: What's the production lead time?
A: A standard sample is generally shipped within 4 weeks; batch orders are generally about 6 weeks. Please kindly consult our sales team for specifics.
Q: How many cameras can the HiCUBE solar trailer hold?
A: Maximum 6 cameras. Actually, it depends on local sunlight conditions, solar panel power rating, battery capacity and camera power consumption. Please kindly consult our sales team for specifics.
Q: Is there a lithium battery option?
A: Yes. In addition to standard GEL batteries, we also provide lithium battery options, but the corresponding unit price and shipping costs will increase.
Q: What's the warranty period?
A: 2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
