BIGLUX Brand Manual Winch Lifting Solar Security Trailer US/EU/AU Standard Factory
Product details of the solar security trailer
Product Introduction
BIGLUX solar security trailer is designed by experienced professionals who make use of superior quality raw materials. With the functions that meet user need, the product has a good practical value. The popularity and the reputation of BIGLUX have improved rapidly over the years.
High definition camera installed on mobile trailer 6 to 9 meters mast with solar generator for security monitoring
Mobile surveillance trailer together with solar generator specification：
Base System
| Brand: | BIGLUX |
| Name: | Solar CCTV Trailer |
| Model: | HS4602G-6M |
| Material: | Steel Q235 |
| Dimension: | Length×Width×Height |
| Transport: | 1900×1500×1100 (mm) |
| Operate: | 2900×2500×6200 (mm) |
| Weight: | 800kg / 1764lb |
| System Voltage: | DC24V |
| Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel: | 2 × 460W Monocrystalline Silicon |
| Voltage: | DC42V |
Battery System
| GEL: | 4 × 200Ah，Free-main，Deep-cycle |
| Voltage: | DC12V |
| Series & Parallel: | 2 in series, then parallel |
| Power Capacity: | 9600W·h |

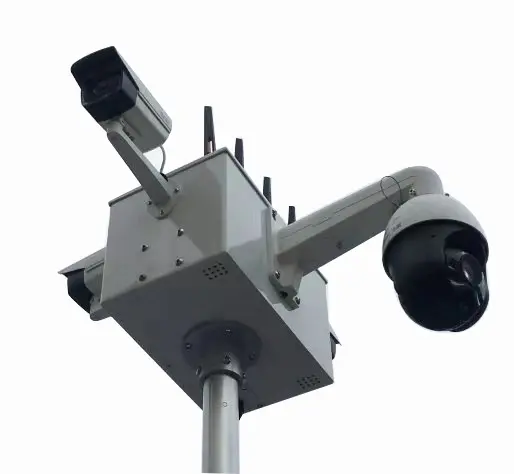

CCTV System
| Box: | Square type |
| Device: | PoE Switch |

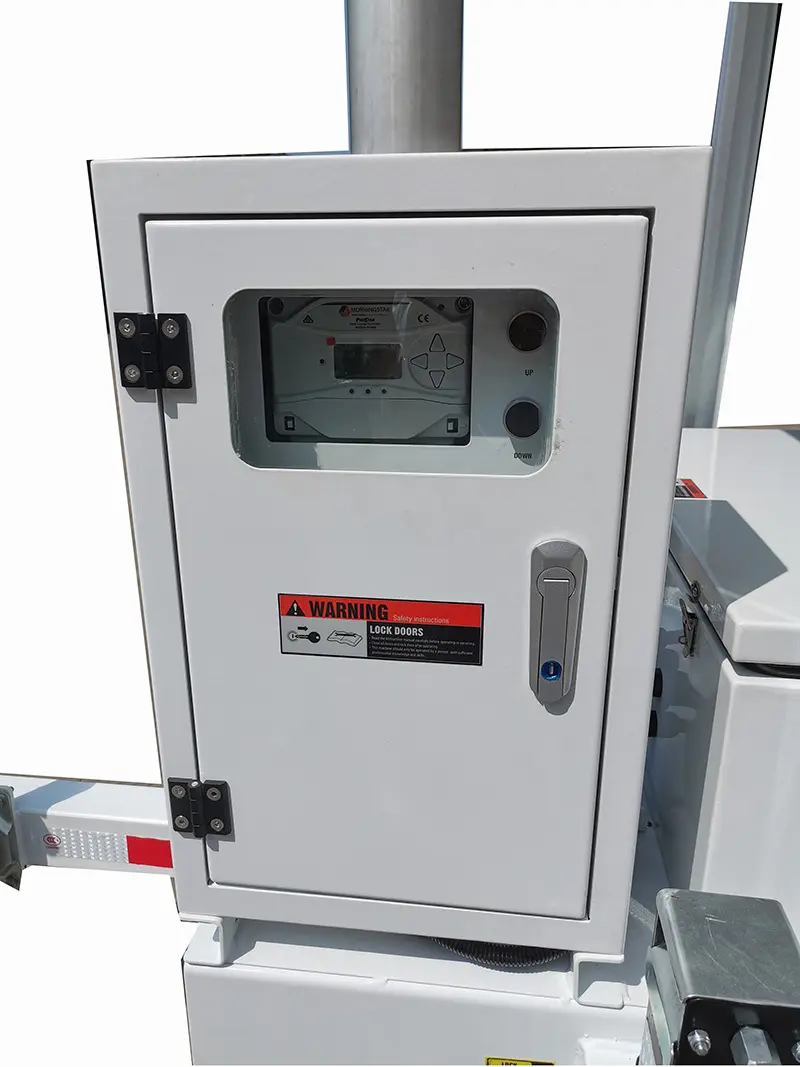

Control System
| Solar Controller: | MPPT,Hybrid，30A |
| Efficiency: | 95%+ |
| Detection & Protection: | Short-Circuit，Overload，High Voltage，High Temperature |
| Whole Machine: | Battery Isolator,Device on-off |
Mast System
| Body: | Aluminum Alloy 6063,Hard Anodized |
| Type: | Round Telescopic |
| Height： | 6m / 20ft |
| Section: | 4 |
| Spring Cable: | 2 × Cat6e + 2 × Power Supply |
| Lifting Method: | Manual Winch |
| Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof: | 117km/h / 73mph |
Trailer System
| Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Outrigger: | 4 × Manual Galvanized |
| Warranty: | 2 years |

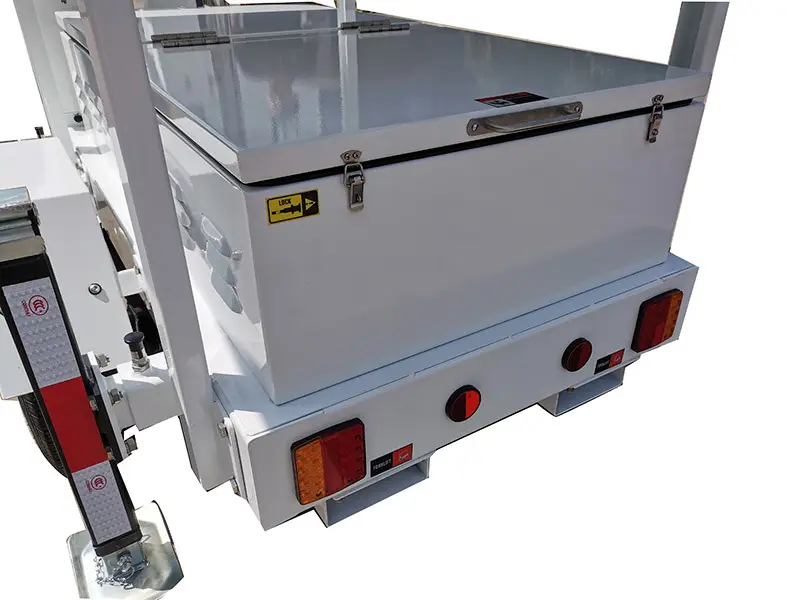

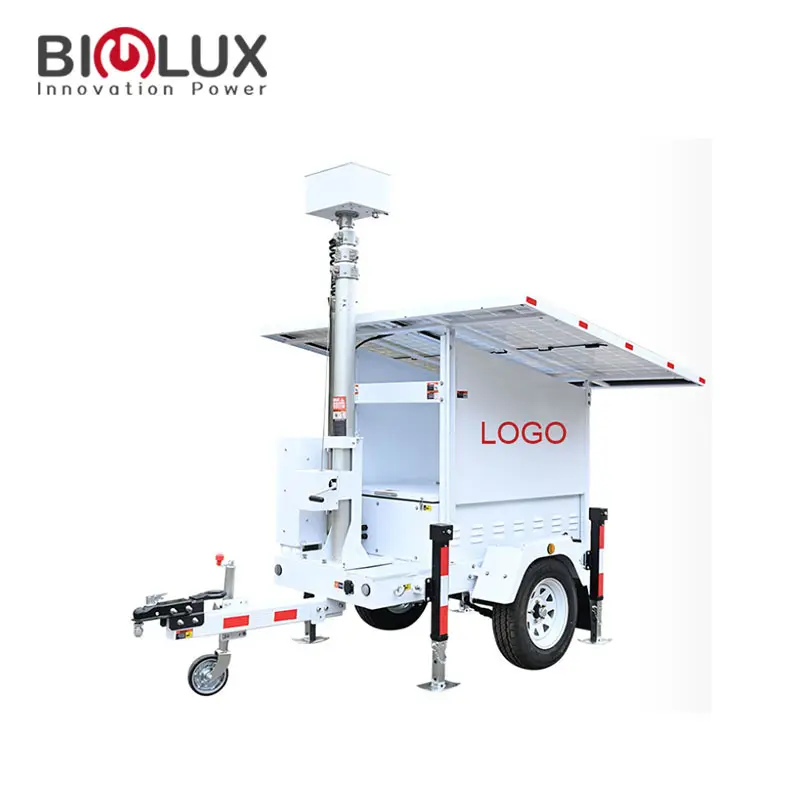

Mobile surveillance trailer together with solar generator photo for reference
