Security surveillance cameras with solar generator trailer off grid solar system for security monitoring during working station
Security surveillance cameras with solar generator trailer specification:
Base System
Brand: | BIGLUX |
Name: | Solar CCTV Trailer |
Model: | HS4603G-6M |
Material: | Steel Q235 |
Dimension: | Length×Width×Height |
Transport: | 2300×1600×2200 (mm) |
Operate: | 3200×3400×6200 (mm) |
Weight: | 1150kg / 2550lb |
System Voltage: | DC24V |
Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
Solar Panel: | 3 × 460W Monocrystalline Silicon |
Voltage: | DC42V |
Battery System
GEL: | 6 × 200Ah,Free-main,Deep-cycle |
Voltage: | DC12V |
Series & Parallel: | 2 in series, then parallel |
Power Capacity: | 14400W·h |
CCTV System
Box: | Square type |
Device: | Switch |
Control System
Solar Controller: | MPPT,60A |
Efficiency: | 95%+ |
Detection & Protection: | Short-Circuit,Overload,High Voltage,High Temperature |
Mast System
Body: | Aluminum Alloy 6063,Hard Anodized |
Type: | Round Telescopic |
Height: | 6m / 20ft |
Section: | 4 |
Spring Cable: | 2 × Cat6 + 2 × Power Supply |
Lifting Method: | Manual Winch |
Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
Windproof: | 117km/h / 73mph |
Trailer System
Standard: | US / AU / EU |
Tow Hitch: | 50mm / 2'' Ball Type |
Trailer Light: | 7 Pin |
Axle: | Single Suspension |
Outrigger: | 4 × Manual Galvanized |
Accessories
Operation Manual | Parts Manual | Controller Manual | Allen Wrench |

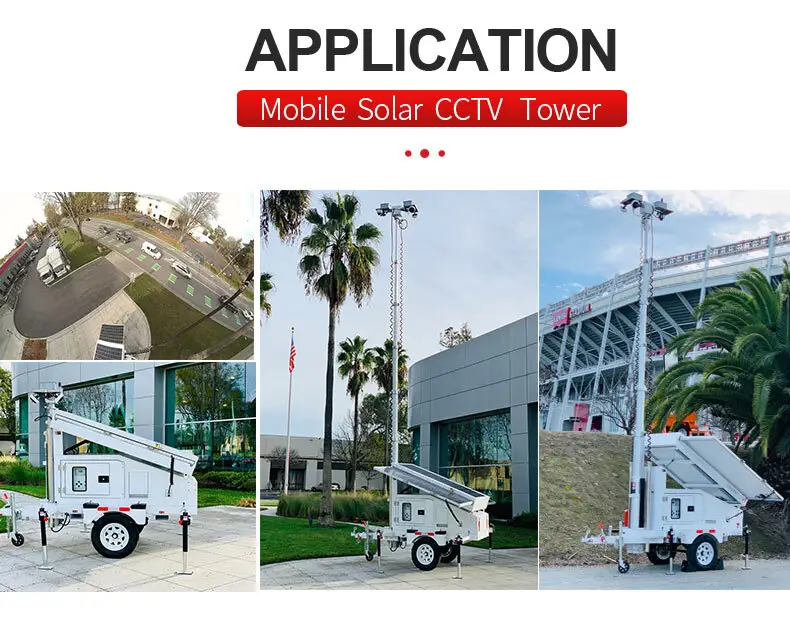

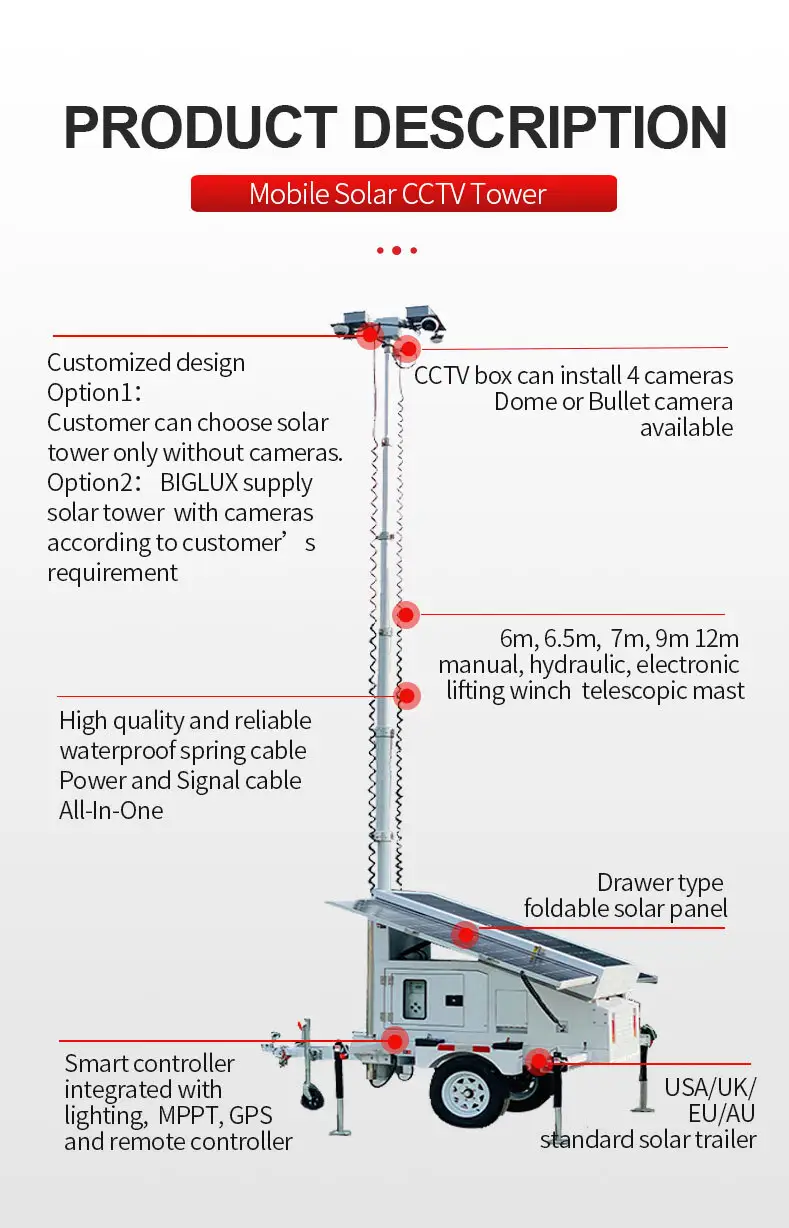

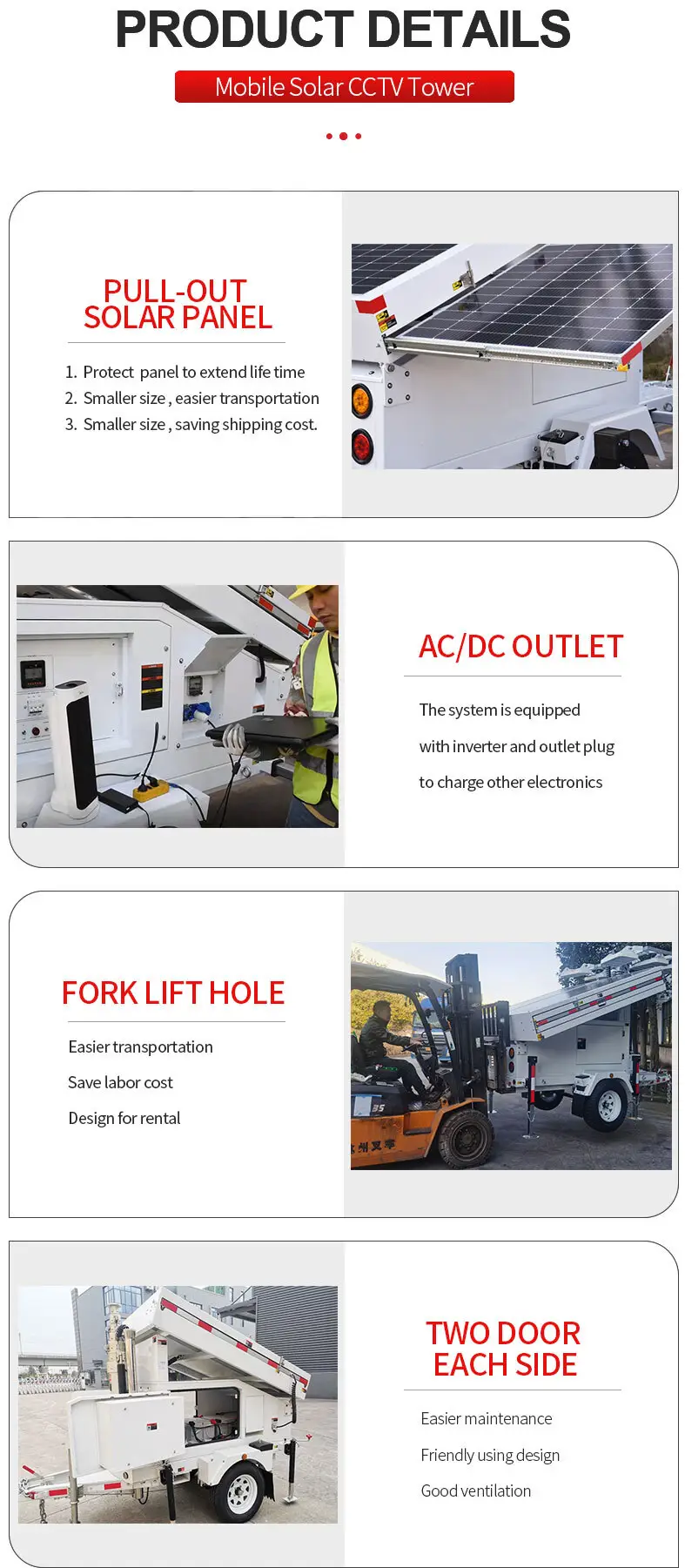

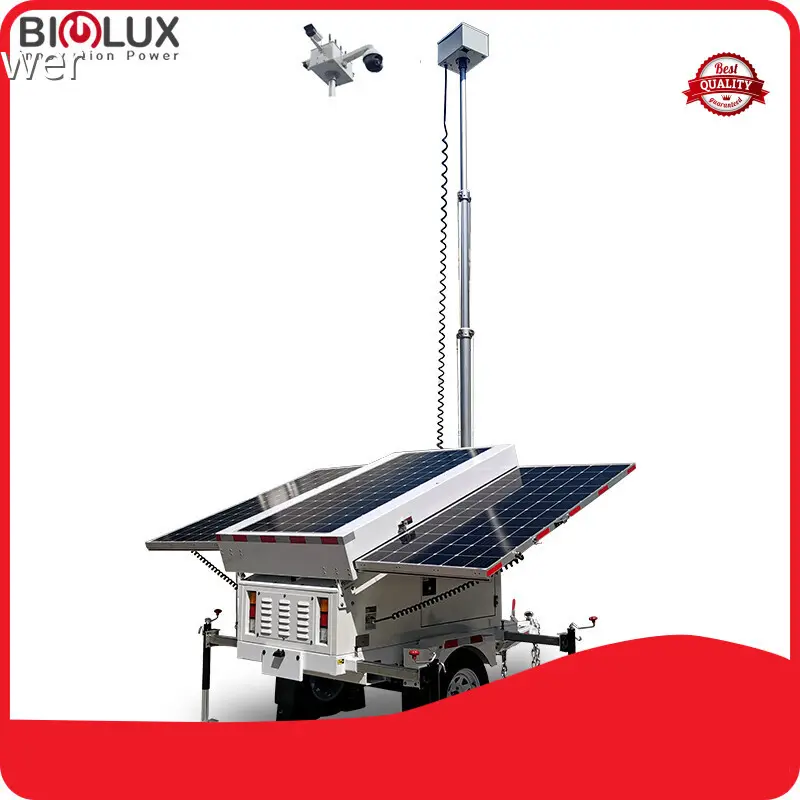

Security surveillance cameras with solar generator trailer photo for reference.
