BIGLUX- Mobile Solar Trailer And Solar Generator Manufacturer For 10+Years

BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 1
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 2
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 3
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 4
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 5
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 1
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 2
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 3
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 4
BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory 5

BIGLUX Brand 2 × Cat6 + 2 × Supply 40A MPPT Mobile CCTV Tower Switch Factory

Battery:
4 × 200Ah,DC12V,9600W·h
Controller:
40A MPPT,95% Efficiency
Mounting Box:
Mounting box, Switch
Spring Cable:
2 × Cat6 + 2 × Supply
Mast:
Aluminum Alloy,Round Telescopic type,6 m,4 Sections
Inquiry



Wireless Internet 4G Wifi Remote Control CCTV Camera Solar power mobile surveillance Trailer For Security Monitoring



Solar energy for mobile surveillance trailer specification:



Base System

Brand: BIGLUX
Name: Solar CCTV Trailer
Model:  HS4602G-6M
Powder: Outdoor Type
Dimension: Length×Width×Height
Transport: 1900×1500×1100 (mm)
Operate: 2900×2500×6200 (mm)
Weight: 800kg / 1764lb
System Voltage: DC24V
Work Temperature: -35℃~50℃ / -31℉~122℉

Solar System

Solar Panel: 2 × 460W Monocrystalline Silicon
Voltage: DC42V

Battery System

GEL: 4 × 200Ah,Free-main,Deep-cycle
Voltage: DC12V
Series & Parallel: 2 in series, then parallel
Power Capacity: 9600W·h

CCTV System

Box: Square type
Device: Switch

Control System

Solar Controller:  MPPT,Hybrid,30A
Efficiency: 95%+
Detection & Protection: Short-Circuit,Overload,High Voltage,High Temperature

Mast System

Body: Aluminum Alloy 6063
Type: Round Telescopic
Height: 6m / 20ft
Section: 4
Spring Cable: 2 × Cat6e + 2 × Power Supply
Lifting Method:  Manual Winch
Recommended Loading: 5kg ~ 50kg / 11lb ~ 110lb
Windproof: 117km/h / 73mph

Trailer System

Standard: US / AU / EU
Tow Hitch: 50mm / 2'' Ball Type
Outrigger: 4 × Manual Galvanized
Warranty: 2 years

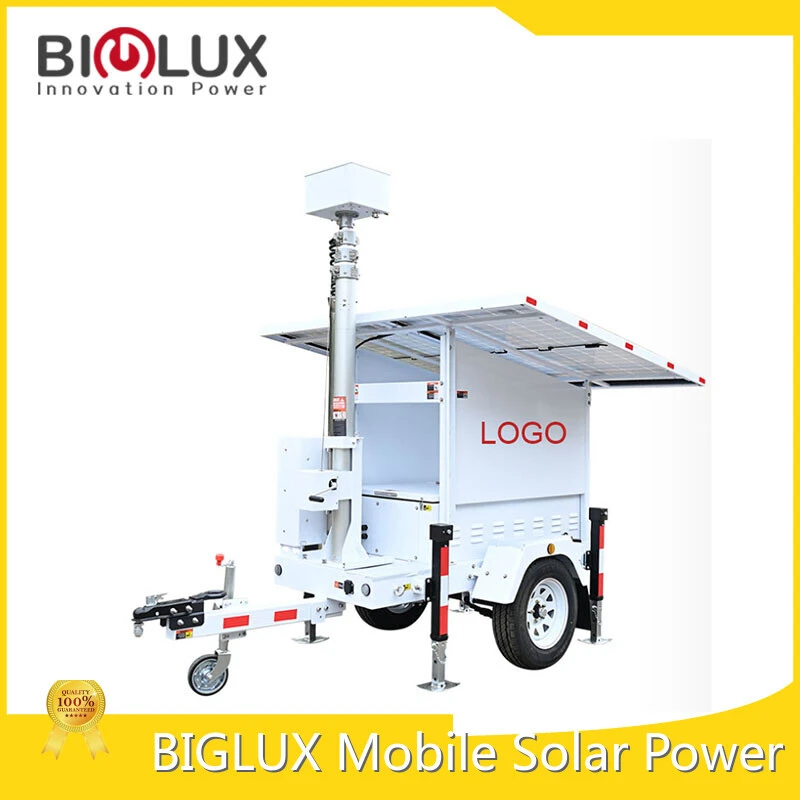

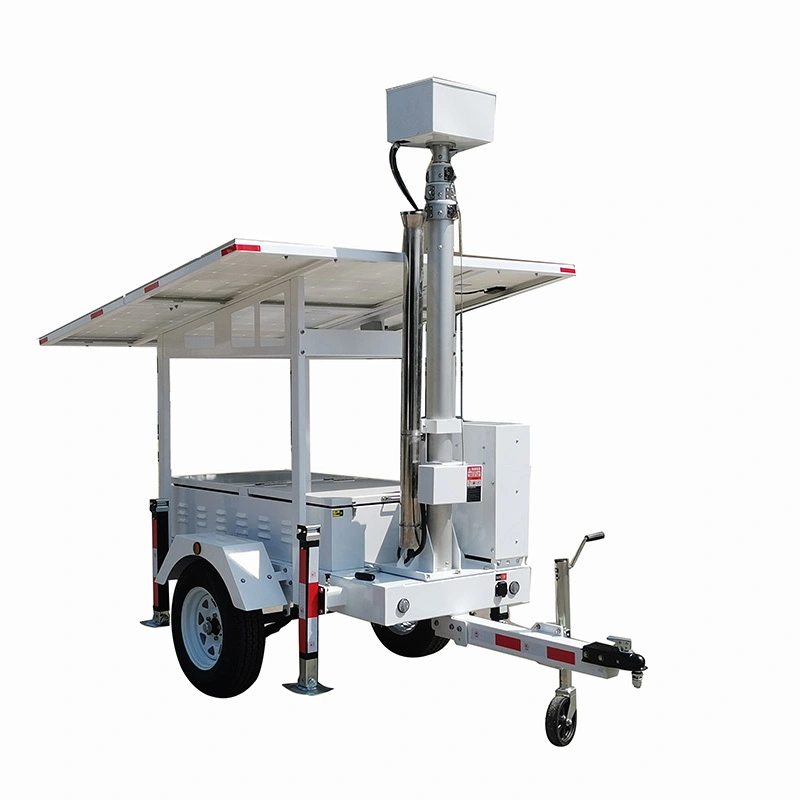

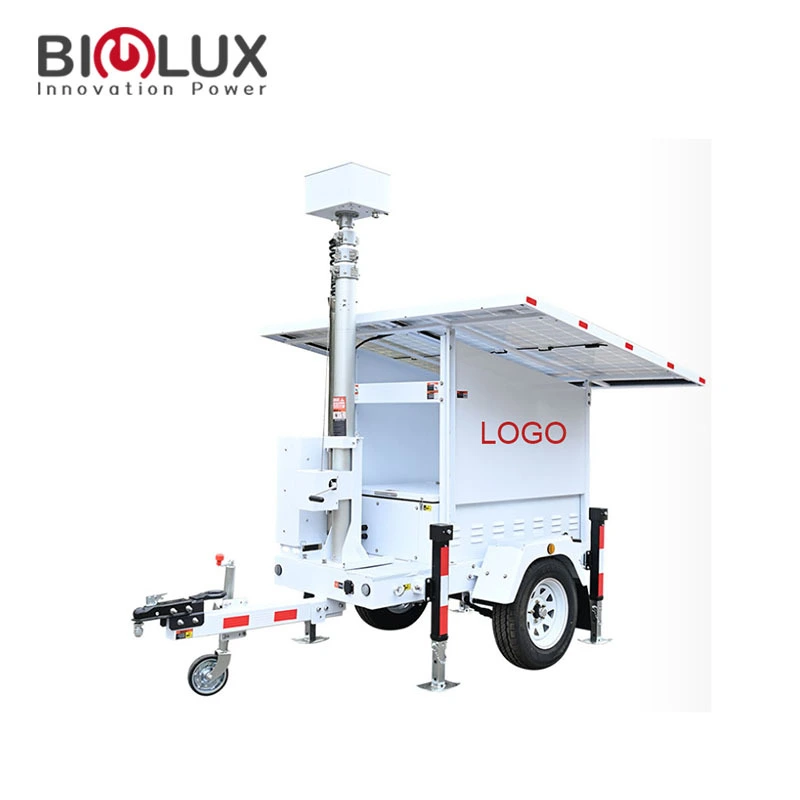

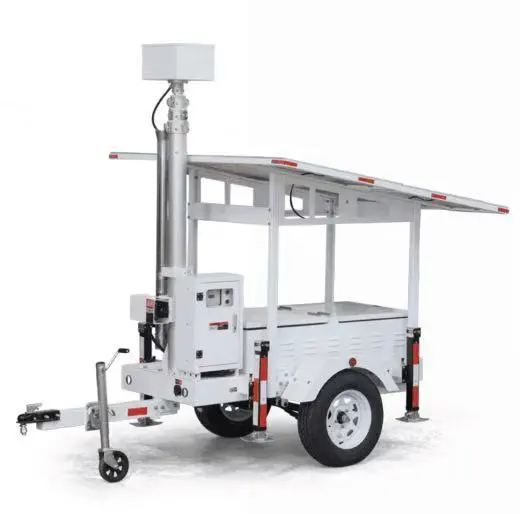

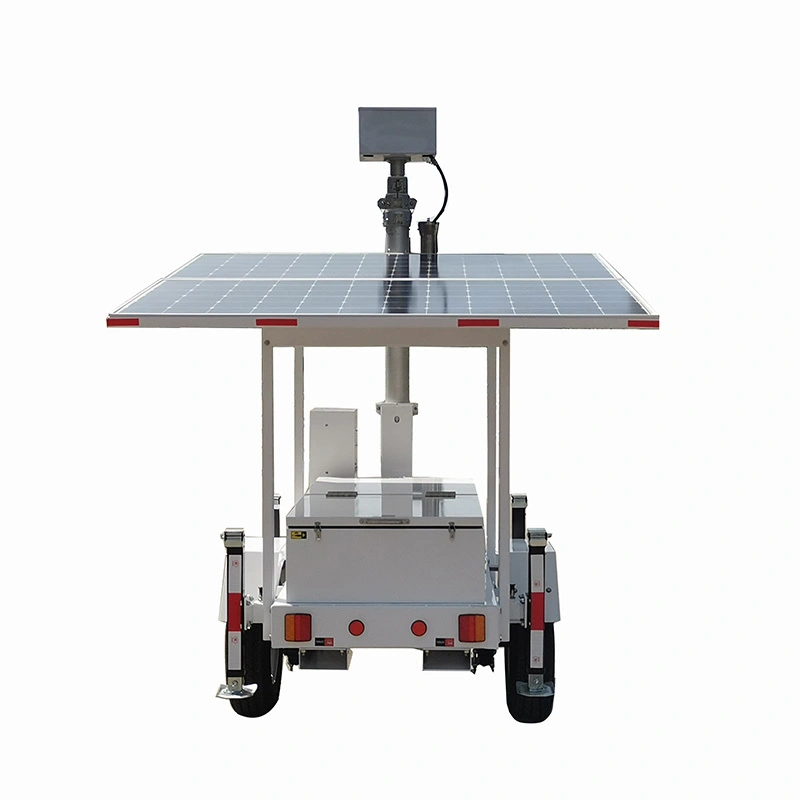

Solar energy for mobile surveillance trailer photo for reference.

Solar trailer 1

Research shows that recycling technology is the key to sustainable development of solar energy



A recent new study on the environmental impact of renewable energy sources has found that the use of solar energy can greatly affect our lives, including health, resource consumption and environmental damage. In particular, the study points out that more work needs to be done to establish a comprehensive recycling of late photovoltaic products.



Detailed life-cycle measurements of solar products have been made by relevant research institutions, comparing their impacts in different categories with those produced by other renewable energy technologies, fossil fuels or nuclear power.



The research institute shows that the impact of current solar products is much lower than that of all coal and gas generation (including carbon capture), slightly lower than that of wind, and slightly higher than that of nuclear, just by comparing carbon dioxide emissions. The research group also says solar power offers more opportunities to reduce carbon emissions over a longer period of time.



There is a new technology on the market, but it is difficult to measure at the moment, it has the potential to have a greater impact on human health, and the ease of processing gives it the potential for very low emissions and environmental impact.



The research institute was surprised to find that almost all photovoltaic material manufacturing is concentrated in China, which also proves from the side that China, as a developing country, has made great contributions to human health and the environment. It is also an example that many developed countries should learn from and cooperate with.



Recycling remains a major challenge for the industry, so much work is needed to develop newer technologies to recover more reusable materials from late-stage solar products.



With the continuous progress of recyclable technology, the solar industry can achieve significant development, so that we human beings can realize the protection of the environment, and the harmony between man and nature.



As BIGLUX’s mission, we will contribute to a better world by renewable solar energy.



BIGLUX has many different solar generator products, welcome you to contact us if you are interested Solar energy for mobile surveillance trailer. Or just click here to view our website directly https://www.bigluxled.com to get right solutions.




Company Advantages

· BIGLUX mobile CCTV tower is manufactured in compliance with the industry defined norms and guidelines.

· The product meets the requirements of testing after many time trials.

· The product is energy saving. It spends the minimum amount of energy to complete its tasks. It accounts for reduced energy bills.


Company Features

· BIGLUX INNOVATION LTD enjoys a reputable position in the industry. We have been acting as an active manufacturer and supplier of mobile CCTV tower for years.

· Aiming at the competitive industry, BIGLUX has successfully established its own development technology.

· At BIGLUX INNOVATION LTD, you can get quality assurance and professional service. Check it!


Application of the Product

The mobile CCTV tower produced by our company is widely recognized by customers and widely used in field.

Through problem analysis and reasonable planning, we provide our customers with an effective one-stop solution to the actual situation and needs of customers.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
