6 × 200Ah 117kph Windproof BIGLUX Brand Mobile CCTV Tower
Product details of the mobile CCTV tower
Quick Detail
BIGLUX mobile CCTV tower is assured with an invincible quality. The product has value beyond its function and features. As well, clientele can purchase this product from us at low market prices.
Product Introduction
More detailed information on mobile CCTV tower is shown for you at below.
Mobile surveillance trailer with mobile solar generator system trailer together with high definition camera for security monitoring
9 meters mast with mobile solar cctv trailer specification：
Base System
| Brand | BIGLUX |
| Name | Mobile Solar CCTV Trailer |
| Model | HS3803G-7.5M |
| Material | Steel Q235 |
| Transport | 2300×1600×2200 (mm) |
| Operate | 3200×3400×7000 (mm) |
| Weight | 1250kg / 2756lb |
| System Voltage | DC24V |
| Work Temperature | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel | 3 × 380W Monocrystalline Silicon |
| Voltage | DC42V |
Battery System
| GEL | 6 × 200Ah，Free-main，Deep-cycle |
| Voltage | DC12V |
| Series & Parallel | 2 in series, then parallel |
| Power Capacity | 14400W·h |
CCTV System
| Box | Square type |
| Device | PoE Switch |
Control System
| Solar Controller | MPPT，60A |
| Efficiency | 95%+ |
| Detection & Protection | Short-Circuit，Overload，High Voltage，High Temperature |
Mast System
| Body | Steel Q235 Galvanized |
| Type | Square Telescopic |
| Height | 6.5m / 21ft |
| Section | 5 |
| Spring Cable | 2 × Cat6 + 2 × Power Supply |
| Lifting Method | Manual Winch |
| Recommended Loading | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof | 117km/h / 73mph |
Trailer System
| Standard | US / AU / EU |
| Tow Hitch | 50mm / 2'' Ball Type |
| Trailer Light | 7 Pin |
| Axle | Single Suspension Bump Brake |
| Outrigger | 4 × Manual Galvanized |
Accessories
| Operation Manual | Parts Manual | Controller Manual | Allen Wrench | Hex Wrench |

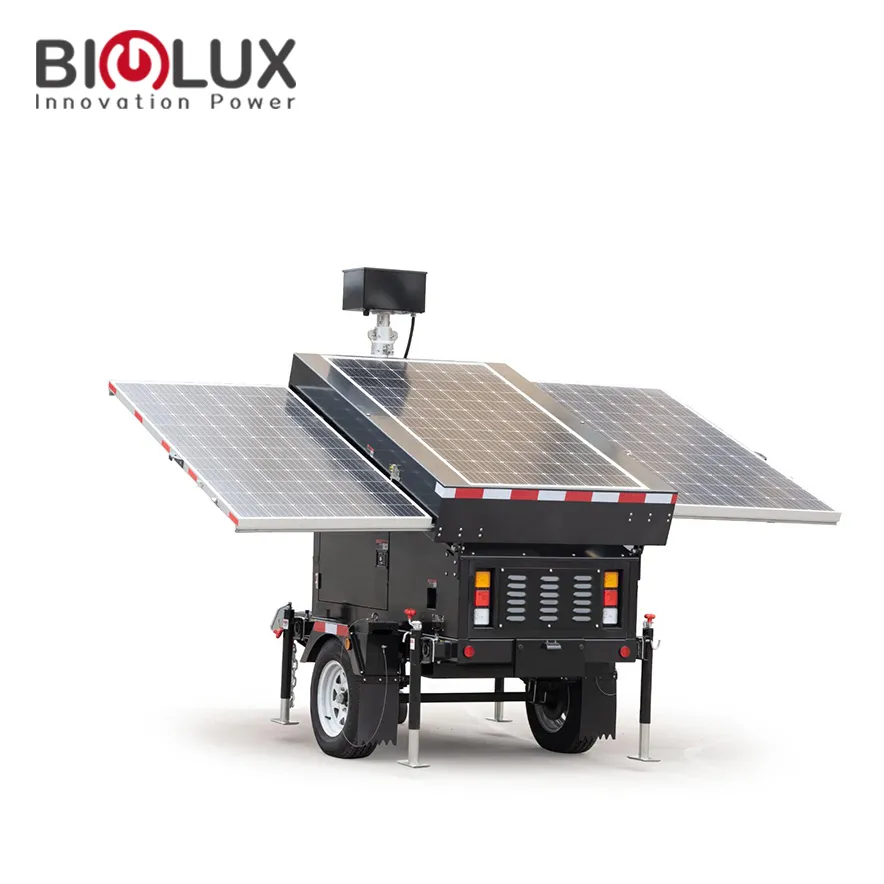

9 meters mast with mobile solar cctv trailer photo for reference.
