2 × Cat6 + 2 × Supply Switch Mobile Security Camera Tower BIGLUX Brand
Hikvision high definition cameras with mobile solar generator trailer 6 meters mast for security monitoring easy to deploy
Mobile cctv tower with solar generator trailer specification：
Base System
| Brand: | BIGLUX |
| Name: | Solar CCTV Trailer |
| Model: | HS3802G-6M |
| Material: | Steel Q235 |
| Powder: | Outdoor Type |
| Dimension: | Length×Width×Height |
| Transport: | 1900×1500×1100 (mm) |
| Operate: | 2900×2500×6200 (mm) |
| Weight: | 800kg / 1764lb |
| System Voltage: | DC24V |
| Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel: | 2 × 380W,Monocrystalline Silicon |
| Voltage: | DC42V |
Battery System
| GEL: | 4 × 150Ah,Free-main,Deep-cycle |
| Voltage: | DC12V |
| Series & Parallel: | 2 in series, then parallel |
| Power Capacity: | 7200W·h |
CCTV System
| Box: | Square type |
| Device: | Switch |
Control System
| Solar Controller: | MPPT,Hybrid 30A |
| Efficiency: | 95%+ |
| Detection & Protection: | Short-Circuit,Overload,High Voltage,High Temperature |
| Timer: | Dusk & Dawn |
| Whole Machine: | Battery Isolator,Device on-off |
Mast System
| Body: | Aluminum Alloy 6063 Hard Anodized |
| Type: | Round Telescopic |
| Height： | 6m / 20ft |
| Section: | 4 |
| Spring Cable: | 2 × Cat6e + 2 × Power Supply |
| Lifting Method: | Manual Winch |
| Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof: | 117km/h / 73mph |
Trailer System
| Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Axle: | Single Suspension |
| Outrigger: | 4 × Manual Galvanized |
Accessories
| OperationManual | Parts Manual | Controller Manual | Allen Wrench | Hex Wrench |

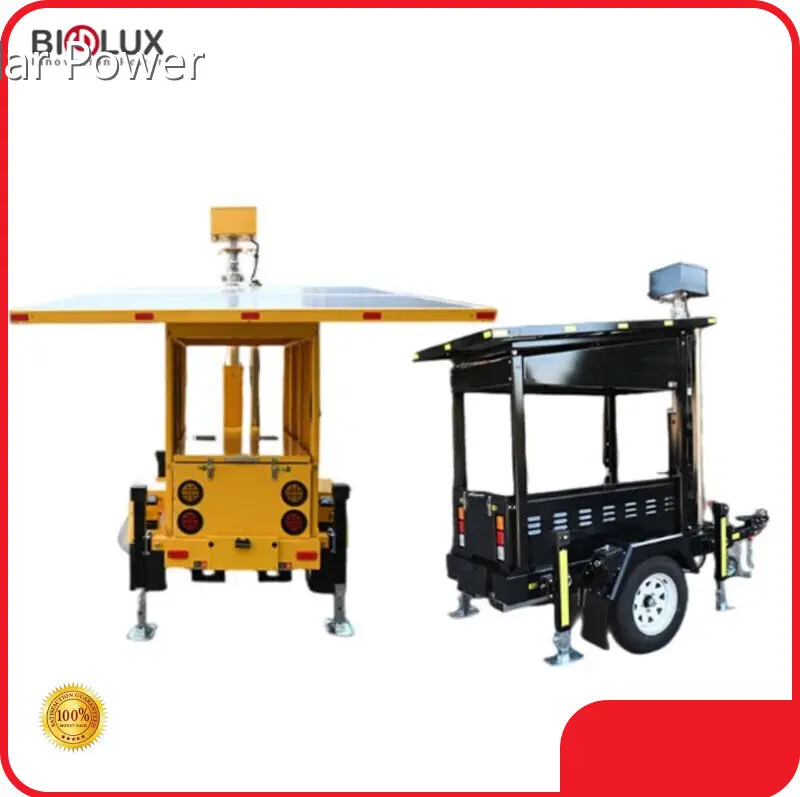

Mobile cctv tower with solar generator trailer photo for reference.
