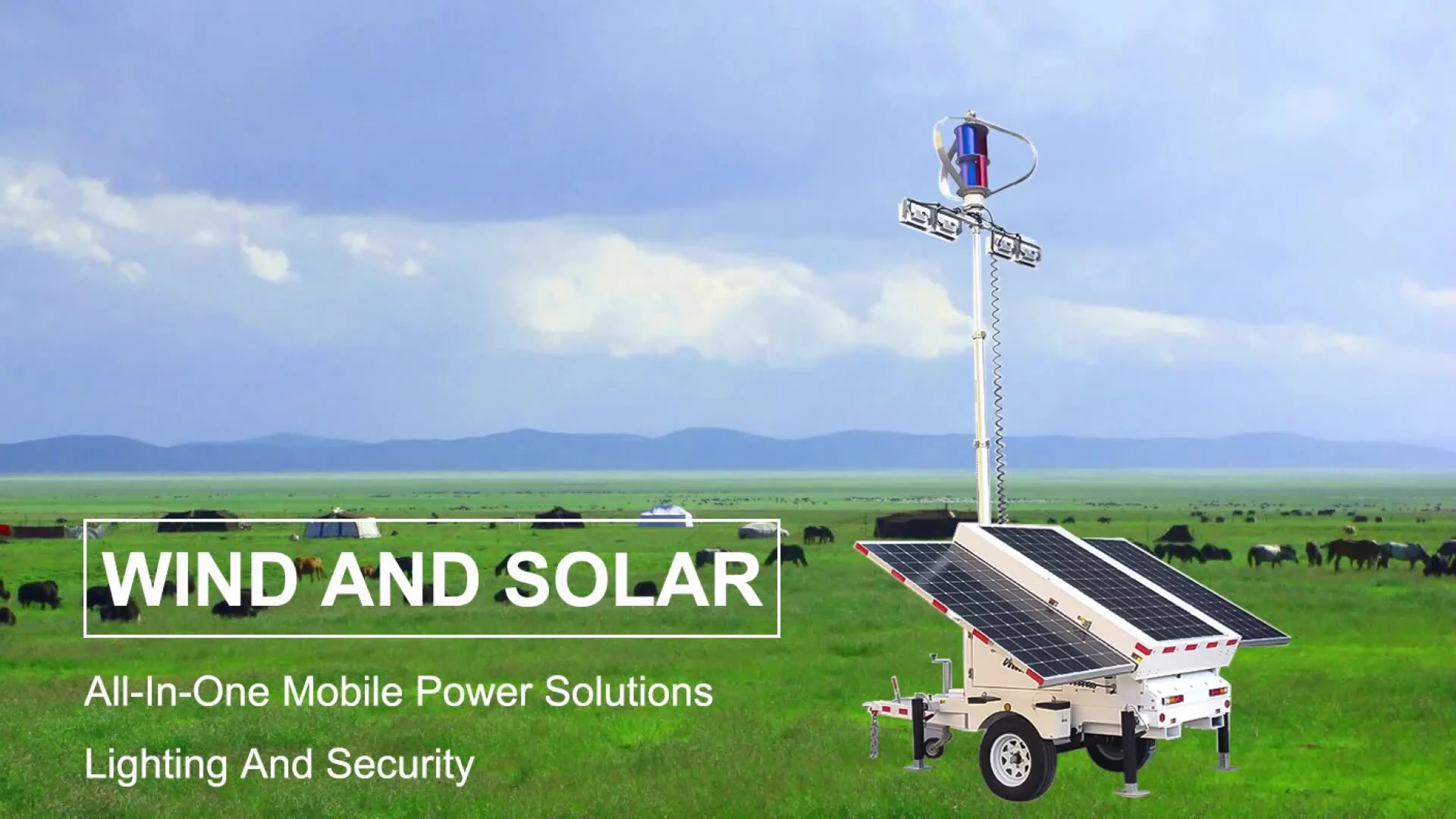

    Mobile Wind Solar Hybrid Light Tower 400W

    Wind solar hybrid power generation system is mainly composed of wind turbines, solar photovoltaic cells, controllers, batteries, inverters, AC and DC loads, etc. The system uses the array of solar cells and wind turbines (convert alternating current into direct current) to store the electric energy emitted into the battery. When the device needs electricity, the inverter converts the direct current stored in the battery into alternating current and sends it to the AC load through the transmission line. Or the directy to the DC load devices. It is the wind turbine and solar cell array two kinds of power generation equipment together to generate electricity.

    CONFIGURATIONS:


    -3* 460W, Drawer type foldable Monocrystalline Silicon solar panels

    -6*200Ah,DC12V, 14400W·h GEL batteries

    -95% Efficiency smart MPPT controler

    -4*100W led lights with 150lm/W, total 60000lm

    -Steel Q235, Square Telescopic type, 6.5 m, 5 Sections, Electric Winch Lifting, recommend load: 5-70kg;

      Aluminium telescopic mast available; 5 secition 8.5 meter and 9 section 9 meter heavy duty mast available; with 360 degree rotation by electric control.

    -500W aluminium wind turbine

    -US/EU/AU Standard, Ball Hitch, single Axles, 4pcs Manual Outriggers, safety chains

    Charging Time: 8.8 hours by solar

    Running Time: 19.2 hours at 80% DOD


    Spring cables with power supply for the led lights. If cameras installed, cat6 spring cables available too.

    Dialux simulations for some projects avaialble:

    If a project requires lighting illumination details. Please sent the site information and the illumination requirement. We will help provide simulation to decide wattage, quantity and installation height of the light towers based on the light brightness and beam angle.

    Diesel or petrol generator as backup available :


    If you require more electricity power based on cloudy or rainy days, and prefer to have a generator as backup. We can match for you and build a separate room with good ventilation.

    As well a hybridy system matched for the generator works automatically if the electricity is not enough.

    Mobile Wind Solar Hybrid Light Tower 400W 10


    Different colors available for your choice

    Mobile Wind Solar Hybrid Light Tower 400W 11

    Doing assembly in workshop for the Mobile Wind Solar Hybrid Light Tower 400W


    Advantages of the Mobile Wind Solar Hybrid Light Tower:

    1. High cost performance

    Since ordinary street lights must be powered by buried cables, the construction cost of power supply lines for street lights is very high on roads that are more than three kilometers away from the power point. With the extension of kilometers, a booster system is also required. The cost of power supply lines for street lamps is high, and the power consumption on the lines is also high. The wind-solar hybrid street light does not require transmission lines, does not consume electricity, and has obvious economic benefits.

    2. Energy saving and emission reduction, saving environmental protection, without a large amount of electricity bills in the later period.

    A resource-saving and environment-friendly society is becoming the general trend. Compared with traditional street lights, wind-solar hybrid street lights use renewable solar and wind energy in nature as energy, do not consume any non-renewable energy, and do not emit polluting gases into the atmosphere, resulting in zero pollution emissions. In the long run, the protection of the environment is self-evident, and it also eliminates the cost of a large amount of electricity bills in the later period.

    3. The cable laying project is exempted from the construction of a large number of power supply facilities.

    The operation procedures of the mains lighting project are complicated, and the basic works such as excavation of cable trenches, laying of hidden pipes, threading in pipes, and backfilling require a lot of labor. At the same time, large quantities of electrical equipment such as transformers, power distribution cabinets, and switchboards also consume a lot of financial resources. The wind-solar hybrid street light does not. Each street light is a separate individual, no need for laying cables, no need for large-scale electrical equipment, saving manpower and financial resources.

    4. Individual damage does not affect the overall situation, and is not affected by large-scale power outages.

    Since conventional street lights are connected by cables, it is likely to affect the entire power supply system due to individual problems. This is not the case with wind-solar hybrid light-emitting circuit lights. Distributed independent power generation system, individual damage will not affect the normal operation of other street lights, even if there is a large-scale power outage, it will not affect the lighting, and the uncontrollable loss is greatly reduced.

    If more details required for Mobile Wind Solar Hybrid Light Tower 400W, welcome to contact Biglux.
