Very popular mobile solar light tower with 6*100W LED lights off grid solar system same as World Cup Qatar 2022 Stadium Parking Lot
Mobile solar light tower with solar generator specification:
Base System
Name: | Solar Light Trailer |
Model: | HL4603L-7H-6004 |
Material: | Steel Q235 |
Transport: | 2200×1650×2200 (mm) |
Operate: | 3100×3500×7000 (mm) |
Weight: | 1150kg / 2535lb |
System Voltage: | DC24V |
Work Temperature: | -35℃~60℃ / -31℉~140℉ |
Solar System
Solar Panel: | 3 × 460W,Monocrystalline Silicon |
Voltage: | DC39V |
Battery System
LFP: | 600Ah,BMS |
Voltage: | DC25.6V |
Power Capacity: | 15360W·h |
Light System
LED: | 6 × 100W,Outdoor LED flood light |
CRI | 3000K |
Protection Class: | IP66 |
Fixture Efficiency | 150Lm/W |
Beam angle: | 60° X 90°, 80°,110° optional |
Voltage: | DC24V |
Control System
Solar Controller: | MPPT |
Efficiency: | 95%+ |
Detection & Protection: | Short-Circuit,Overload,High Voltage,High Temperature |
Mast System
Body: | Steel Q235,Galvanized |
Type: | Square,Telescopic |
Height: | 6.5m / 21ft |
Section: | 5 |
Rotation: | Vertical 90° Electric |
Spring Cable: | Power Supply |
Lifting Method: | Hydraulic |
Recommended Loading: | 5kg ~ 70kg / 11lb ~ 154lb |
Windproof: | 117km/h / 73mph |
Trailer System
Standard: | US / AU / EU |
Tow Hitch: | 50mm / 2'' Ball Type |
Trailer Light: | 7 Pin |
Axle: | Single Suspension |
Outrigger: | 4 × Manual Galvanized |
Charger System
Rated Power: | 2kW / 2kVA |
Input Voltage: | AC240V / AC120V |
Charging Efficiency: | 85% |
Charging Circuit: | 60A |
Charging Time: | 10 hours |
Terminal & Socket: | 1 × DC12V + 1 × DC24V,1 × AC240V / AC120V |

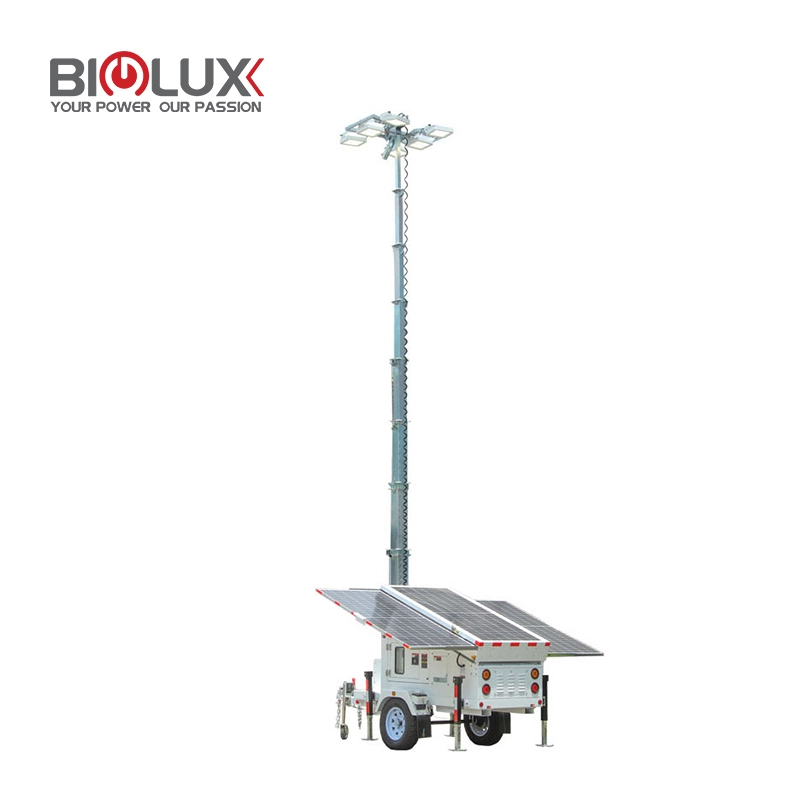

Mobile solar light tower with solar generator photo for reference.
Marketing News
Portable off-grid solar systems
The BIGLUX Portable battery solar system is designed for harsh and remote environments.
BIGLUX Portable Solar system solutions are designed for the oil and gas industry, which requires off-grid power in remote and extremely cold areas. This portable off-grid solar system is specifically designed for cold and harsh environments.
While most batteries don't perform well in extremely cold areas, BIGLUX found a manufacturer of military-grade casings that make the company's batteries. The box contained batteries and heating.
Off-grid solar systems are designed and developed so that off-grid solar system solutions can be easily shipped and deployed anywhere. According to BIGLUX, technical challenges include how to make the structure smaller and lighter without compromising sturdiness and performance, and how to reduce the number of components without making the panels vulnerable to strong winds. After many trials, designers have designed different products that can adapt to different scenarios.
Countries around the world have pledged to reduce carbon emissions while also protecting economies that rely heavily on natural fossil fuel resources. Canada, for example, recently released its Autumn 2022 economic Statement, introducing an investment tax credit (ITC) for clean technologies, which will help stimulate the transition to net-zero energy and give Canadian companies an edge. The clean tech tax credit will be available to those who invest in net-zero technology, battery storage. A new 30% Canadian tax credit will apply to renewable energy production and storage, as well as low-carbon heating and zero-emission investments.
According to government officials, BIGLUX's products and technologies will accelerate the transition of the North American economy to net zero. At the same time, such technologies are highly welcomed in the United States and other European and American countries, so many countries are encouraging and developing such technologies in order to protect the environment and reduce the use of fossil fuels.
Like the Canadian Government's Scientific Research and Experimental Development Program. Reduce tax incentives for products with innovative and environmentally friendly technologies and develop such technologies to protect the environment and reduce the use of fossil fuels. The tax is done by both the federal and provincial governments. The costs of promoting the product and technology mainly include staff costs, salaries, materials, and fees paid to contractors and third parties.
Being recognized by the government is invaluable, and BIGLUX will continue to innovate and make our own contribution to protecting the world's environment and reducing the use of fossil fuels.
BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years.
If you have any interested mobile solar light tower with solar generator, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.
