Switch 3 × 460W Mobile Solar Security Trailer 2 × Cat6 + 2 × Supply Ball Hitch BIGLUX Brand

High definition security camera with mobile solar trailer off grid solar system for outdoor security monitoring

Mobile solar trailer with CCTV camera specification：

Base System

Brand:BIGLUX

Name:Solar CCTV Trailer

Model: HS4603G-6M

Material:Steel Q235

Powder:Outdoor Type

Dimension:Length×Width×Height

〓 Transport: 2300×1600×2200 (mm)

〓 Operate: 3200×3400×6200 (mm)

Weight:1150kg / 2550lb

System Voltage:DC24V

Work Temperature:-35℃~50℃ / -31℉~122℉

Solar System

Solar Panel:3 × 460W ▲Monocrystalline Silicon

Battery System

GEL:6 × 200Ah ▲Free-main▲Deep-cycle

Voltage:DC12V

Series & Parallel:2 in series, then parallel

Power Capacity:14400W·h

CCTV System

Box:Square type

Device:Switch

Control System

Solar Controller: MPPT▲60A

Efficiency:95%+

Detection & Protection:Short-Circuit▲Overload▲High Voltage▲High Temperature

Mast System

Body:Aluminum Alloy 6063 ▲Hard Anodized

Type:Round Telescopic

Height：6m / 20ft

Section:4

Spring Cable:2 × Cat6 + 2 × Power Supply

Lifting Method: Manual Winch

Recommended Loading:5kg ~ 50kg / 11lb ~ 110lb

Windproof:117km/h / 73mph

Trailer System

Standard:US / AU / EU

Tow Hitch:50mm / 2'' Ball Type

Trailer Light:7 Pin

Outrigger:4 × Manual Galvanized

Warranty:2 years

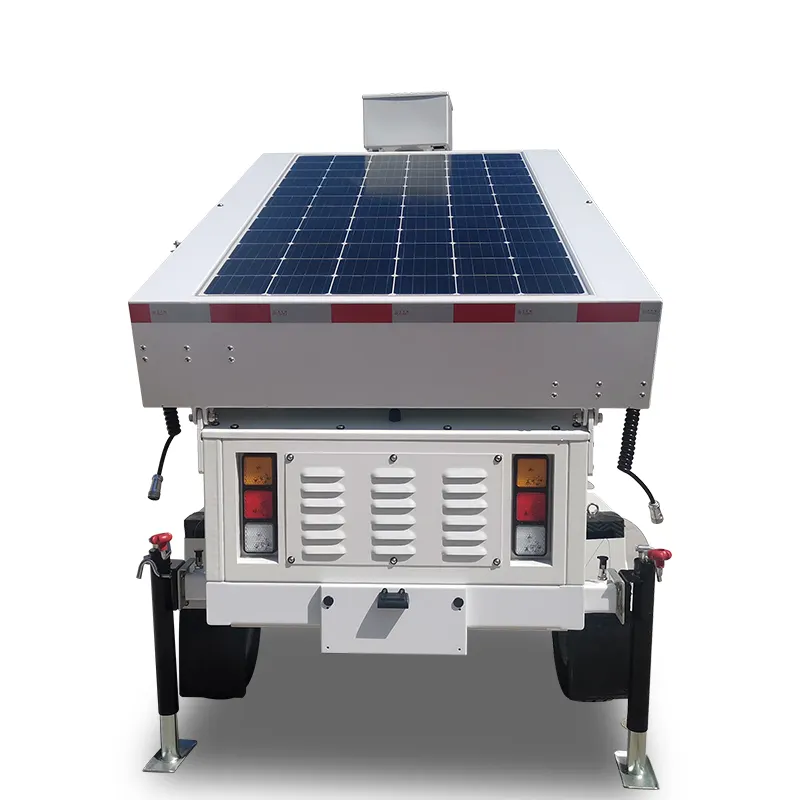

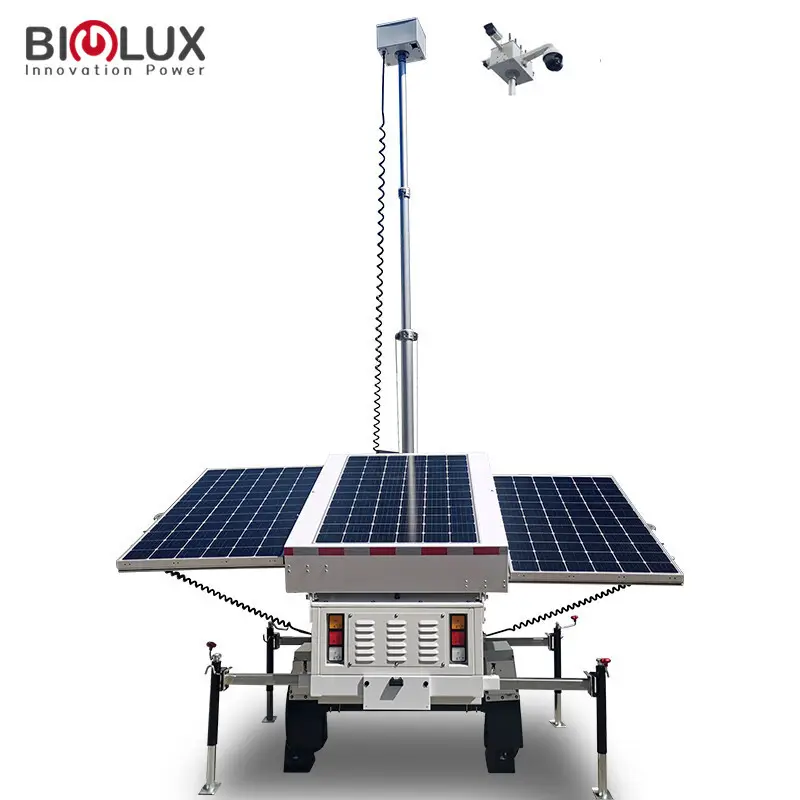

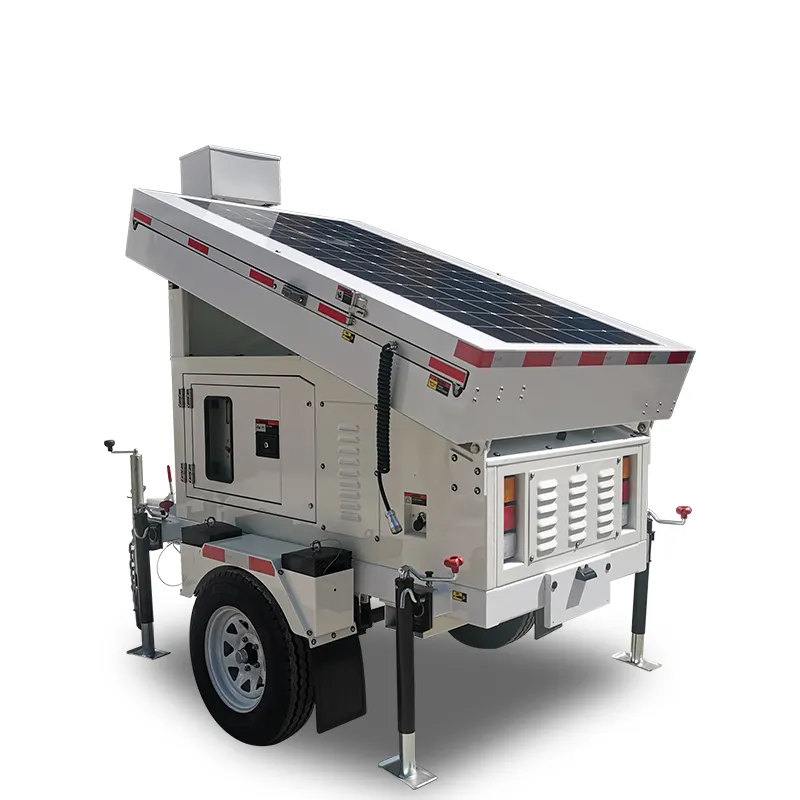

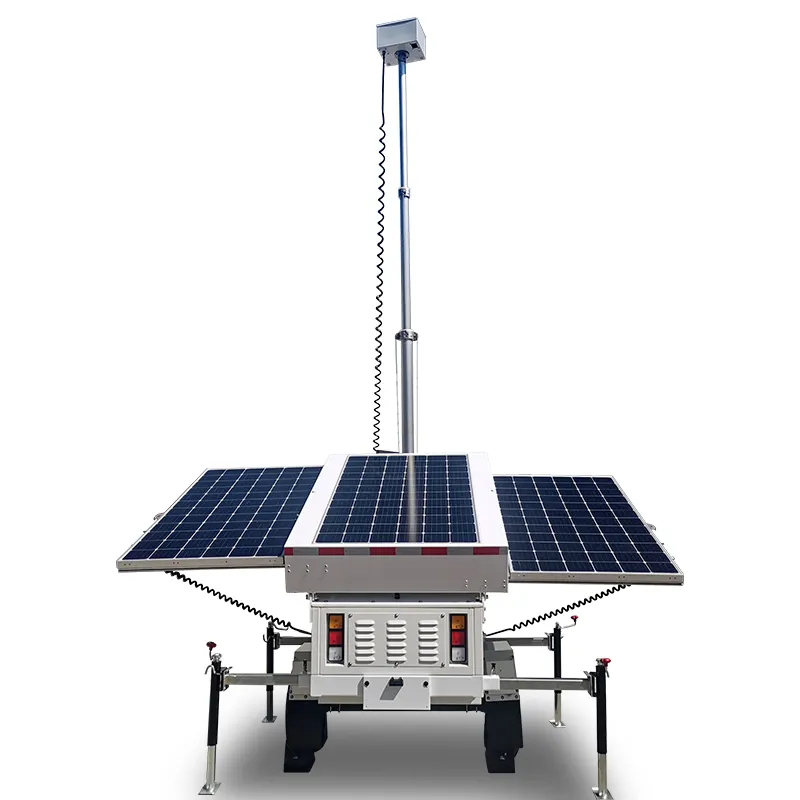

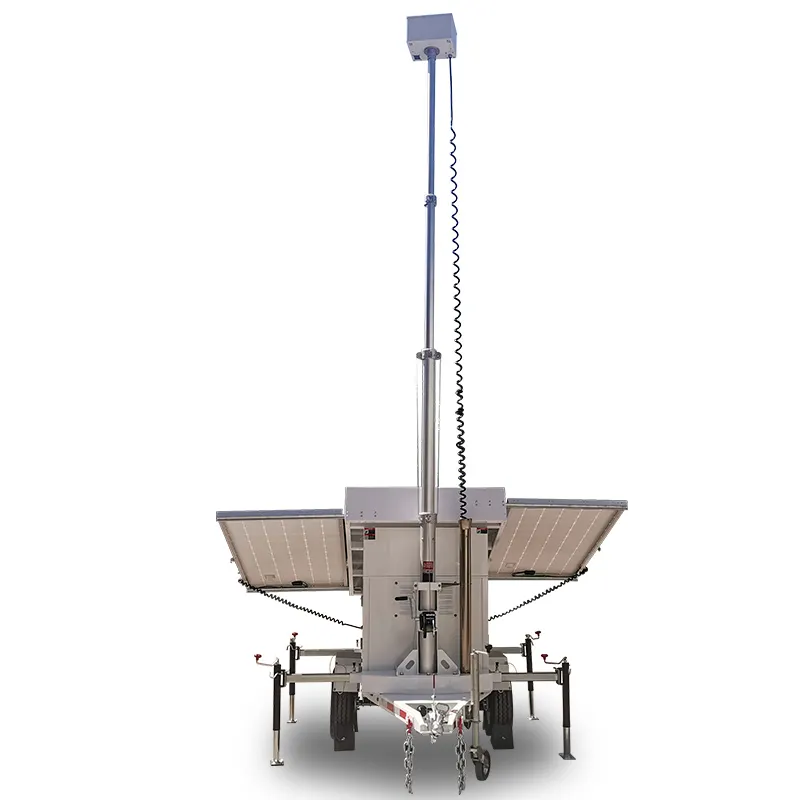

Mobile solar trailer with CCTV camera photo for reference.

Marketing News

A normal global supply chain is one of the key factors to reduce the manufacturing cost of solar modules.

Citing a study by relevant institutions, it was found that the global supply chain of solar energy has saved more than $67 billion in solar production costs per country.

The world is deploying and installing renewable energy sources, such as solar power, at an unprecedented rate in an attempt to reduce carbon emissions and protect the environment. According to a recent report by a research group, the total installed capacity of solar power in all countries is approaching 1 TW, with 250 GW expected to be installed this year alone.

New solar energy sources are likely to play a crucial role in achieving the future goal of sustainable, low-carbon energy, especially if production prices remain as low as they have been for the past 40 years. The global solar supply chain has saved more than $67 billion in solar production costs for all countries, according to the research institute. The study also found that if some countries engaged in supply chains adjust their policies to limit the free flow of goods, talent and capital, the overall production cost of solar products would rise significantly by 2030. This is the inevitable result of the globalization of supply chains.

The study is the first to calculate the cost of a global supply chain for the solar industry, the institute said, but comes at a time when many countries are introducing policies to control renewable energy supply chains for the benefit of domestic manufacturers. Take the tariffs imposed by the Trump administration in 2019, when the US Trade Representative announced higher tariffs on Chinese goods, including from 25 percent to 30 percent on $250 billion worth of Chinese imports. These policies complicate the accelerated deployment of renewable energy, such as solar, by raising production costs. But in June, the Biden administration announced a 24-month tariff exemption for solar products made in Cambodia, Malaysia, Thailand and Vietnam.

According to the research, international cooperation is the key to solving global climate change, and such trade protection policies will hurt every supply chain country and cause climate targets to be delayed.

According to the research results of relevant institutions, the global price of solar products will be about 25% higher by 2030 if every country relies on its own manufacturing, compared with a future with global supply chains. It will also greatly slow the pace of people's efforts to protect the environment to achieve carbon emissions.

For the three largest exporters of solar products, China, the United States and Germany, the savings from a global solar supply chain are $36 billion in China, $24 billion in the United States and $7 billion in Germany, according to the research group. If all three countries adopt protectionist policies at the same time, the price of solar panels will be significantly higher. It is estimated that China will rise by 54 per cent, the US by 107 per cent and Germany by 83 per cent.

If we are really serious about tackling climate change, then every national policy maker needs to promote cooperation in global value chains and scale up cooperation in low-carbon energy technologies.

As with the mission of our company, Using renewable solar energy to contribute to the goodness of the world.

BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years.

If you have any interested mobile solar trailer with CCTV camera, please feel free to contact us to get the right solution.
