BIGLUX- Mobile Solar Trailer And Solar Generator Manufacturer For 10+Years

Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 1
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 2
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 3
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 4
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 5
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 6
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 7
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 1
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 2
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 3
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 4
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 5
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 6
Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 7

Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8...

Battery:
4 × 200Ah,DC12V,9600W·h
Controller:
40A MPPT,95% Efficiency
Mounting Box:
Mounting box, Switch
Running Time:
4 Days for 80W
Inquiry
Warranty
2 years

Company Advantages

· BIGLUX portable solar power systems trailer has a high-efficiency integrated circuit, which can provide the stable driving current for the LED bead and prevent it from damage.

· This product helps reduce the concentration of particulate matter such as suspended particles, bacteria, fungi parasites, viruses.

· The product is highly appreciated and consistently meets the needs of the customers.



High definition surveillance cctv cameras together with mobile solar cctv trailer off grid solar system for security monitoring



High definition surveillance mobile solar cctv trailer specification:

Base System

Brand: BIGLUX
Name: Solar CCTV Trailer
Model:  HS4602G-6M
Material: Steel Q235
Powder: Outdoor Type
Transport: 1900×1500×1100 (mm)
Operate: 2900×2500×6200 (mm)
Weight: 800kg / 1764lb
System Voltage: DC24V
Work Temperature: -35℃~50℃ / -31℉~122℉

Solar System

Solar Panel: 2 × 460W,Monocrystalline Silicon
Voltage: DC42V

Battery System

GEL: 4 × 200Ah,Free-main,Deep-cycle
Voltage: DC12V
Series & Parallel: 2 in series, then parallel
Power Capacity: 9600W·h

CCTV System

Box: Square type
Device: Switch

Control System

Solar Controller:  MPPT,Hybrid 30A
Efficiency: 95%+
Detection & Protection: Short-Circuit,Overload,High Voltage,High Temperature

Mast System

Body: Aluminum Alloy 6063 Hard Anodized
Type: Round Telescopic
Height: 6m / 20ft
Section: 4
Spring Cable: 2 × Cat6e + 2 × Power Supply
Lifting Method:  Manual Winch
Recommended Loading: 5kg ~ 50kg / 11lb ~ 110lb
Windproof: 117km/h / 73mph

Trailer System

Standard: US / AU / EU
Tow Hitch: 50mm / 2'' Ball Type
Trailer Light: 7 Pin
Outrigger: 4 × Manual Galvanized
Axle: Single Suspension

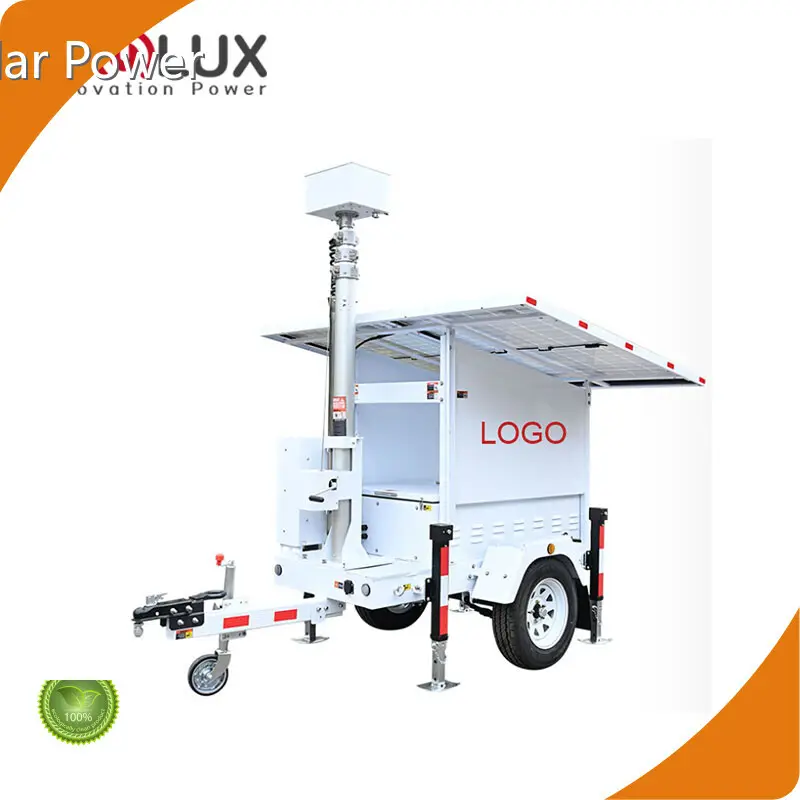

High definition surveillance mobile solar cctv trailer photo for reference.

Portable Solar Power Systems Trailer 9600W·h Portable Solar Power Systems Trailer 4 Days for 8... 8



Marketing News



General methods for improving lithium-ion battery life



Researchers have developed a widely applicable and versatile electrode process. It can be applied to a range of conventional anodes to improve their stability.



Related studies show that the charge and discharge cycle of lithium-ion battery will lead to the change of anode volume and reduce the battery capacity and cycle life. Now, researchers at a related research institute have developed a new way to strengthen the anode and tweak it to make it last longer.



Over time, charging and discharging can cause the nanoparticles in the anode to crack and accumulate near the electrode electrolyte, the agency said. This can cause electrical disconnection, reducing the amount of charge the anode can store or transfer. To solve this problem, researchers at related institutions developed a method that allows the anode to adjust to changes in volume by encapsulating the nanoparticles in an elastic mesh structure.



The researchers show how they used a conventional anode containing silicon nanoparticles, held together by a polymer binder, while adapting to the mesh structure.



The Spaces between the nanoparticles were then filled with a RGO solution, which dried to form a network that held the nanoparticle silicon particles together and prevented them from breaking. In addition, the network provides a conductive path for the electrons, allowing the nanoparticles to bind to the lithium.



The researchers used a novel technique to coat the anode with reduced graphene oxide. The RGO coating acts as a seed layer and is used to deposit a protective layer consisting of zinc oxide and magnesium and gallium metal oxides added to it. It provides the structural stability of the anode.



The researchers say the technology maintains a high storage capacity after 500 cycles, which could extend battery life. This technology will provide more sufficient power for electric vehicles that can travel long distances on a single charge, and will also make positive contributions to the development of new energy.



As with the mission of our company, Using renewable solar energy to contribute to the goodness of the world.



We work with a lot of mining companies to provide them with mobile solar light tower, mobile solar cctv tower, or mobile solar power station.



If you have any interested High definition surveillance mobile solar cctv trailer, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.




Company Features

· With a business focused on manufacturing portable solar power systems trailer, BIGLUX INNOVATION LTD supports worldwide customers by providing the highest quality product and services.

· We have owned a large customer base, among whom are from America, Australia, Germany, South Africa, and so on. Our success with these clients goes back to long-term connections and timely communication. We have increased customer base in recent years. The customer retention rate has increased by 5%, mainly because we continuously maximize customer’s lifetime values during cooperation. As the business has grown, we have got new customers from a wider mixture of places. We are known through clients' word of mouth, and the customer base is becoming larger.

· As the driving force of BIGLUX, portable solar power systems trailer plays an important role in the market. Contact!


Product Details

With the pursuit of perfection, BIGLUX Mobile Solar Power exerts ourselves for well-organized production and high-quality portable solar power systems trailer.


Application of the Product

The portable solar power systems trailer of BIGLUX Mobile Solar Power can be used in many industries.

BIGLUX Mobile Solar Power has established a professional technical team. They can provide customers with targeted processes and solutions. Based on this, the problems of customers can be better solved.


Product Comparison

Compared with other same kind of products in the market, BIGLUX Mobile Solar Power's portable solar power systems trailer is equipped with the following outstanding advantages.


Enterprise Advantages

Rich in talent, BIGLUX Mobile Solar Power gathers a group of professional talents who are engaged in R&D, technology, marketing, and management.

With a comprehensive service guarantee system, BIGLUX Mobile Solar Power is committed to providing sound, efficient and professional services. We strive to achieve win-win cooperation with customers.

With the corporate spirit of 'integrity, proactive service and excellence', our company is devoted to becoming a world-class company with global competitiveness. We are willing to cooperate with you sincerely to create a better future!

After the official establishment in our company has continuously explored and developed for years. Now, we have accumulated a large amount of management experience to guide our daily business activities.

In recent years, BIGLUX Mobile Solar Power has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
