Portable Solar Generator Trailer 4 Days for 80W 2 × 460W Portable Solar Generator Trailer US/E...
Product details of the portable solar generator trailer
Product Information
Over the years, complex designs that might not be attempted by other firms, BIGLUX INNOVATION LTD has been created and verified using portable solar generator trailer. The product is durable and has a long service life. The product is getting more and more popularity, which means that it has a great market potential.
High definition surveillance cctv cameras together with mobile solar cctv trailer off grid solar system for security monitoring
High definition surveillance mobile solar cctv trailer specification：
Base System
| Brand: | BIGLUX |
| Name: | Solar CCTV Trailer |
| Model: | HS4602G-6M |
| Material: | Steel Q235 |
| Powder: | Outdoor Type |
| Transport: | 1900×1500×1100 (mm) |
| Operate: | 2900×2500×6200 (mm) |
| Weight: | 800kg / 1764lb |
| System Voltage: | DC24V |
| Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel: | 2 × 460W，Monocrystalline Silicon |
| Voltage: | DC42V |
Battery System
| GEL: | 4 × 200Ah，Free-main，Deep-cycle |
| Voltage: | DC12V |
| Series & Parallel: | 2 in series, then parallel |
| Power Capacity: | 9600W·h |
CCTV System
| Box: | Square type |
| Device: | Switch |
Control System
| Solar Controller: | MPPT,Hybrid 30A |
| Efficiency: | 95%+ |
| Detection & Protection: | Short-Circuit,Overload,High Voltage,High Temperature |
Mast System
| Body: | Aluminum Alloy 6063 Hard Anodized |
| Type: | Round Telescopic |
| Height： | 6m / 20ft |
| Section: | 4 |
| Spring Cable: | 2 × Cat6e + 2 × Power Supply |
| Lifting Method: | Manual Winch |
| Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof: | 117km/h / 73mph |
Trailer System
| Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Outrigger: | 4 × Manual Galvanized |
| Axle: | Single Suspension |

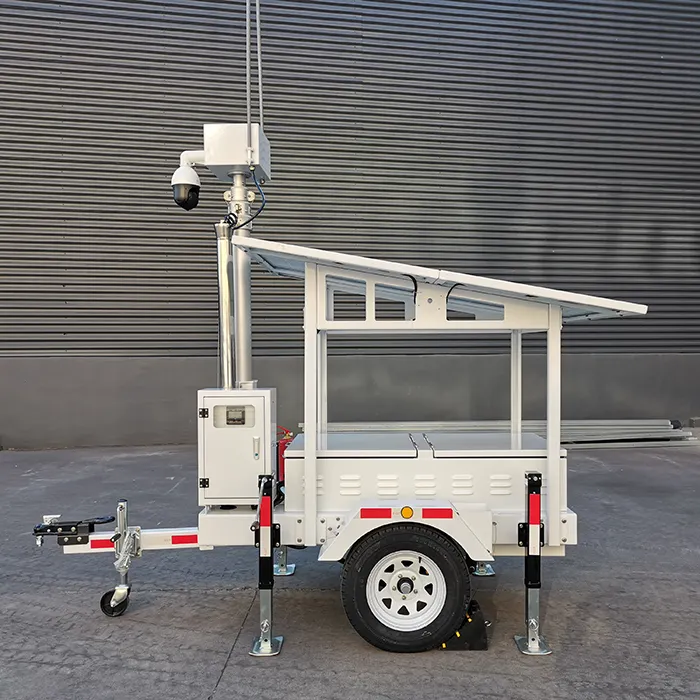

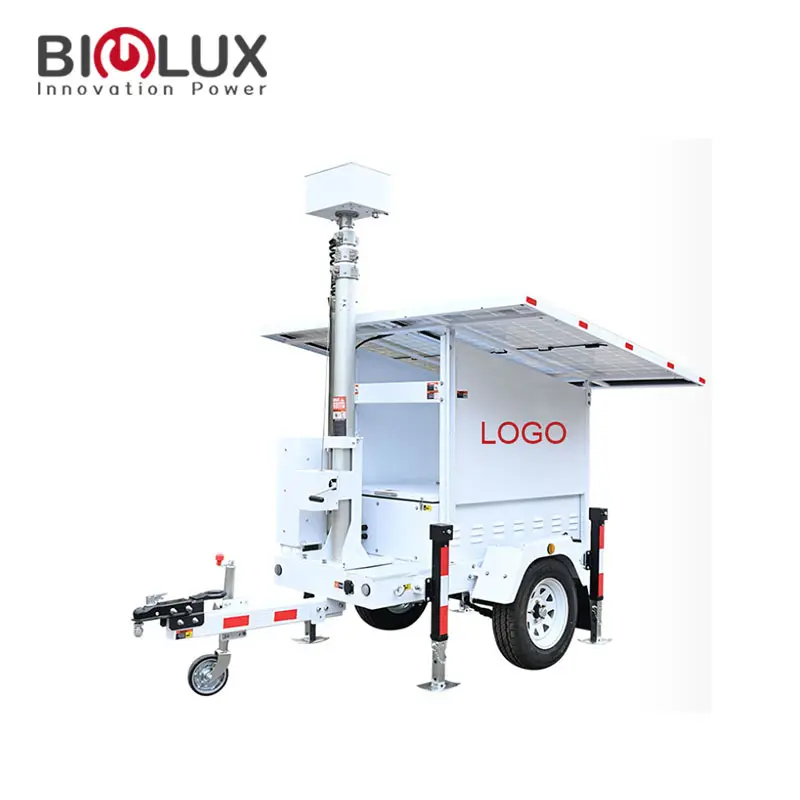

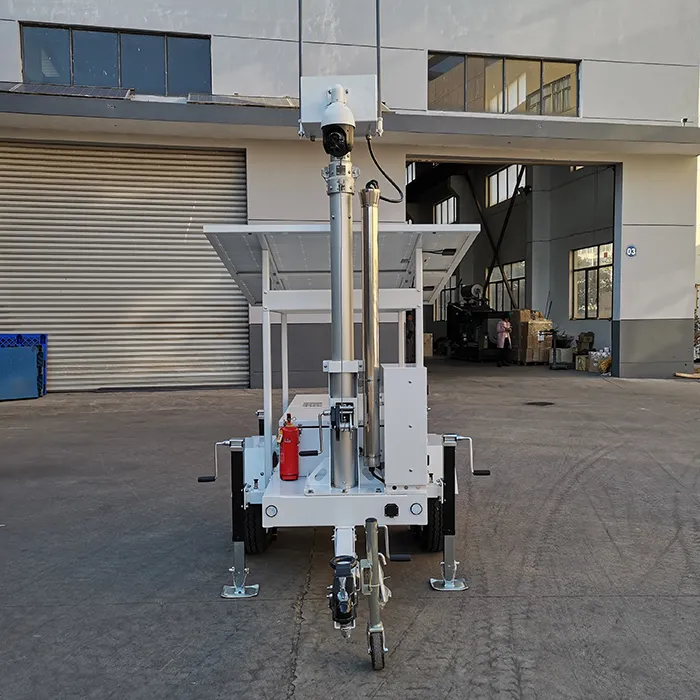

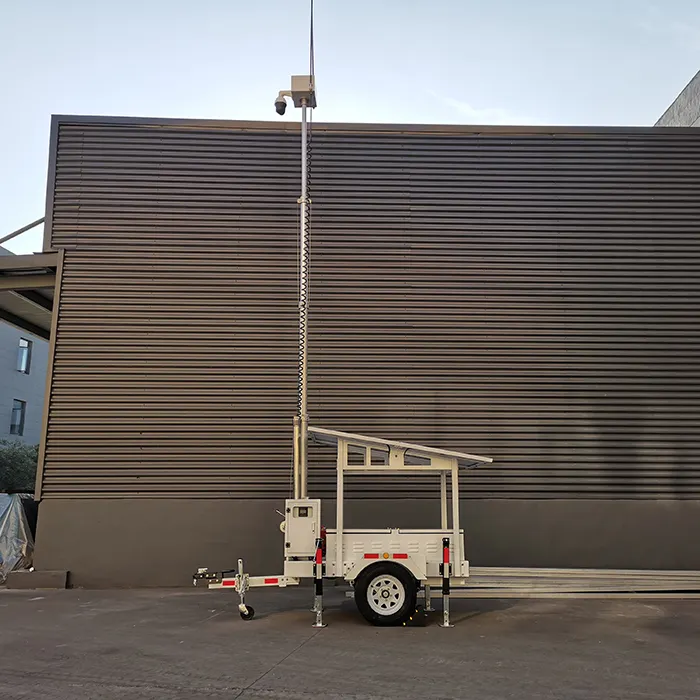

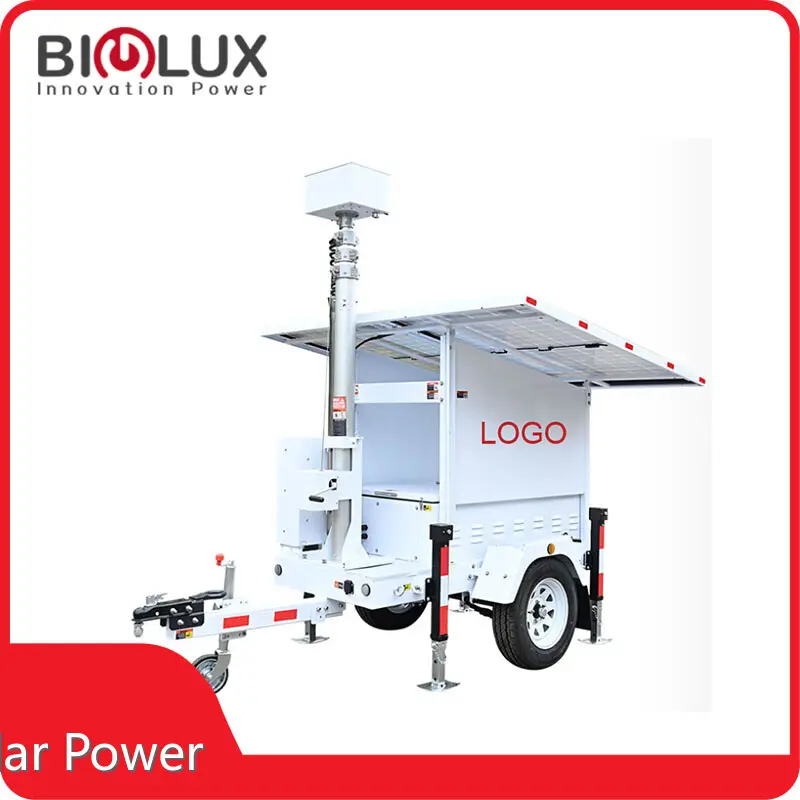

High definition surveillance mobile solar cctv trailer photo for reference.
Marketing News
General methods for improving lithium-ion battery life
Researchers have developed a widely applicable and versatile electrode process. It can be applied to a range of conventional anodes to improve their stability.
Related studies show that the charge and discharge cycle of lithium-ion battery will lead to the change of anode volume and reduce the battery capacity and cycle life. Now, researchers at a related research institute have developed a new way to strengthen the anode and tweak it to make it last longer.
Over time, charging and discharging can cause the nanoparticles in the anode to crack and accumulate near the electrode electrolyte, the agency said. This can cause electrical disconnection, reducing the amount of charge the anode can store or transfer. To solve this problem, researchers at related institutions developed a method that allows the anode to adjust to changes in volume by encapsulating the nanoparticles in an elastic mesh structure.
The researchers show how they used a conventional anode containing silicon nanoparticles, held together by a polymer binder, while adapting to the mesh structure.
The Spaces between the nanoparticles were then filled with a RGO solution, which dried to form a network that held the nanoparticle silicon particles together and prevented them from breaking. In addition, the network provides a conductive path for the electrons, allowing the nanoparticles to bind to the lithium.
The researchers used a novel technique to coat the anode with reduced graphene oxide. The RGO coating acts as a seed layer and is used to deposit a protective layer consisting of zinc oxide and magnesium and gallium metal oxides added to it. It provides the structural stability of the anode.
The researchers say the technology maintains a high storage capacity after 500 cycles, which could extend battery life. This technology will provide more sufficient power for electric vehicles that can travel long distances on a single charge, and will also make positive contributions to the development of new energy.
As with the mission of our company, Using renewable solar energy to contribute to the goodness of the world.
We work with a lot of mining companies to provide them with mobile solar light tower, mobile solar cctv tower, or mobile solar power station.
If you have any interested High definition surveillance mobile solar cctv trailer, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.
