Product details of the mobile solar security trailer

Product Information

What mobile solar security trailer features is incredibly impressive. The product is of top quality and has reliable performance at competitive prices. Customers can inform us their any reasonable improvements for our outer packing for mobile solar security trailer.

Solar Genset Hybrid Trailer With CCTV System

The CCTV system for surveillance with remote control function is very convenient for security and management. You can choose multi functional cameras. The system will work as a smart robot to watch and record the enviornment, take videos for you and even can warn if there is invasion. You no need to hire or arrange safe guards to stay there all the time. However, if the system combine with Biglux solar genset hybrid trailer, you will find the whole system become more smarter. It is self powered, because of solar system. And mobile for much more convenient for remote areas or the locations far from city electricity power, such as construction site, mine areas, wild reaserch areas, etc. With solar and genset prepared, you don't worry power lacking. The hybrid system can make sure your trailer work in 24/7/365.

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 6

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 7

CONFIGURATIONS:

Solar Panel: 4pcs 460W, Monocrystalline Silicon

Battery: 8pcs 200Ah,DC12V, 19200W·h GEL batteries

Controller: 95% Efficiency smart 40A MPPT controller

Genset Backup: 5kW/kVA diesel genset generator with charger and hybrid system. While electricity is not enough be detected, the genset will work automatically.

Different height telescopic mast for your you, and the Steel Q235, Square Telescopic type, 6.5 m, 5 Sections version with Manual Winch Lifting is popular for the cameras, the recommend load is 5-60kg.

Trailer: US/EU/AU Standard, Ball Hitch, Single/Double Axles, 4pcs Manual Outriggers, as well as safety chains.

Charging Time: 8.8 hours by solar; approx 4 hours by diesel

Running Time: after full charge of batteries, the running time is 128 hours for 120W, 10 hours for 1500W at 80% DOD

1) We can match the cameras for you, for example PTZ, bullet cameras, with router, NVR, SD card in cameras, etc.

2) Or better you match the CCTV system locally with exact applications.

With mounting box and junction connectors, as well as spring Cable of 2* Cat6 + 2* Supply for easy connections of your cameras.

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 8

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 9

Drawer design of the solar panels

There is a drawer frames for the solar panels. You can pull them out when deploying the Solar Genset Hybrid Trailer With CCTV System; and pull in while transporting or storage. The matched slider and lock are in good quality to make sure thousands times of using.

AC/DC OUTLET AVAILABLE

The inverters can be available with loutlet plug to charge other devices

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 10

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 11

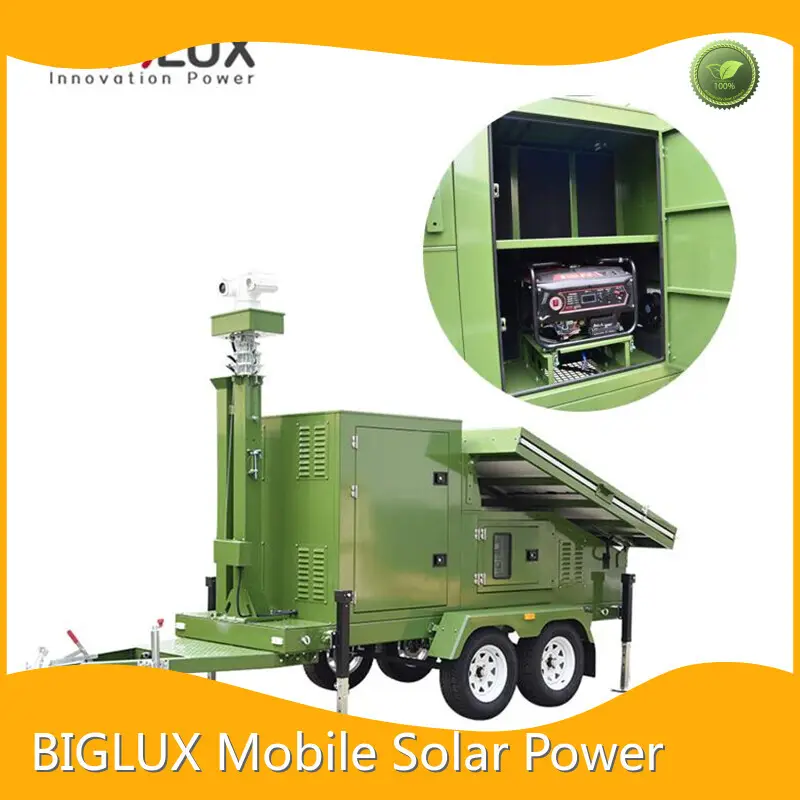

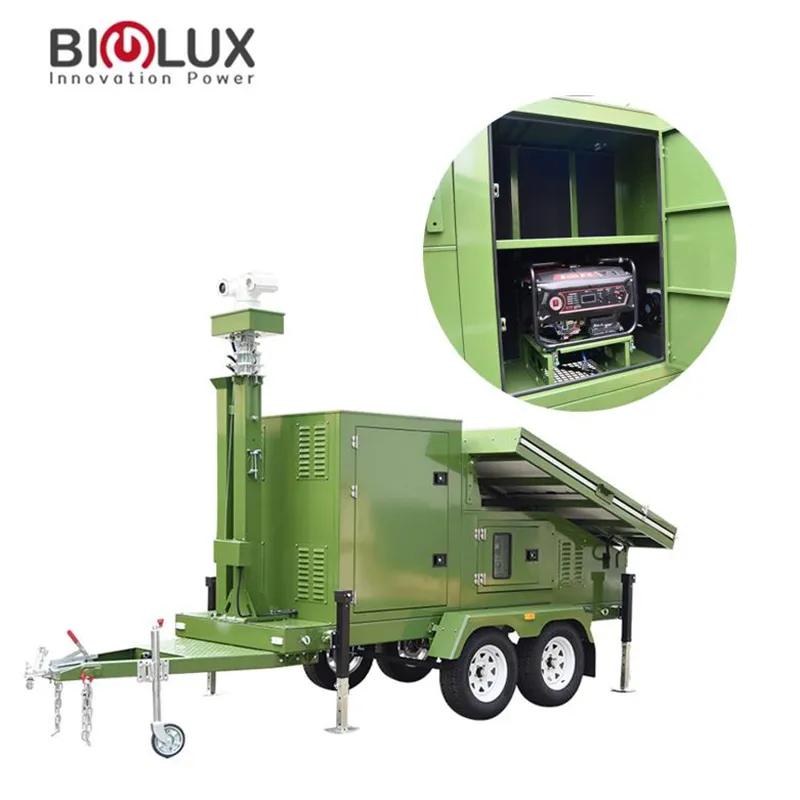

Backup Genset with petrol or diesel genset

The genset generator as backup if there are days of rainy or cloudy in winter. Or if constant higher wattage devices will be used for some time. The backup can make sure no power lacking.

There is a fan and shutter in the genset room for better ventilation.

Mobile Solar Security Trailer Mobile Solar Security Trailer Manufacture 12

Usually when the weight if over 2000kg, double axles trailer will be recommeded, or needing larger space for hold other devices in the trailer, we can make it with more axles.

Flexibility should be a key priority when choosing a CCTV solution for your event or temporary applications. Biglux Solar Genset Hybrid Trailer With CCTV System is Rapid deployment and a portable solution for you. If more details required, please feel free to contact.
