Creative Rapid Deployment Cctv Tower for Sale for Public Security

Product details of the rapid deployment cctv tower for sale

Product Introduction

With the support of a well-developed manufacturing facility, BIGLUX rapid deployment cctv tower for sale is manufactured according to the requirement of standardization production. Our integrated QC system ensures that every product is complete as promise. With robust growth in sales, the product is believed to embrace a promising application in the future.

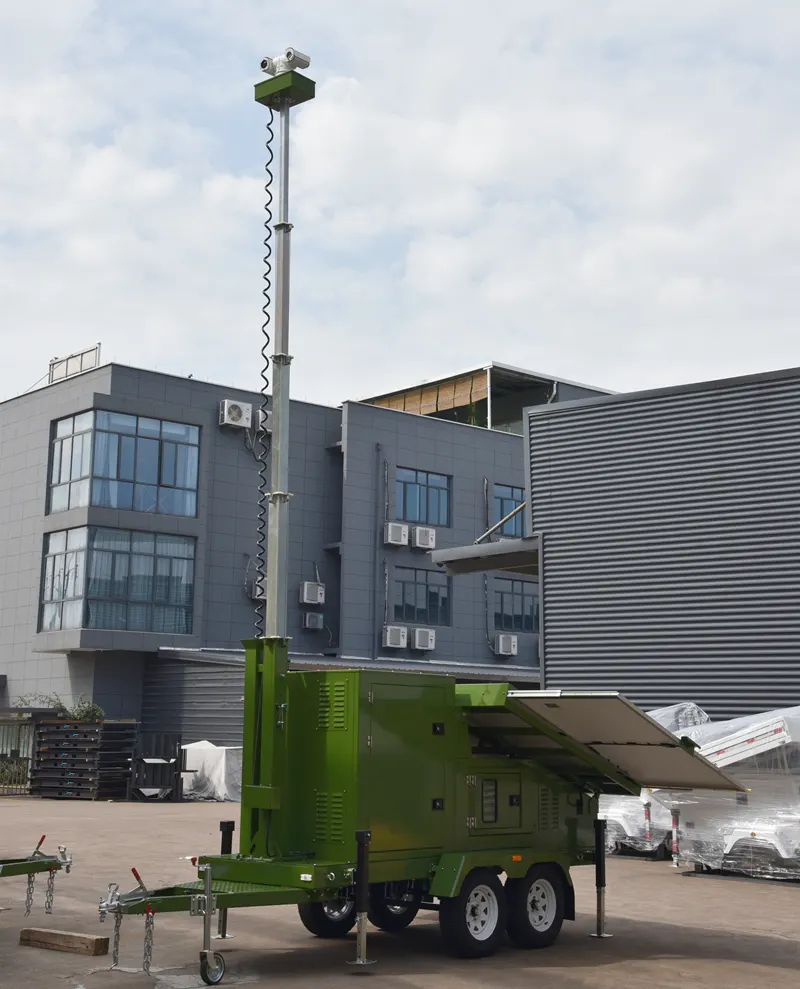

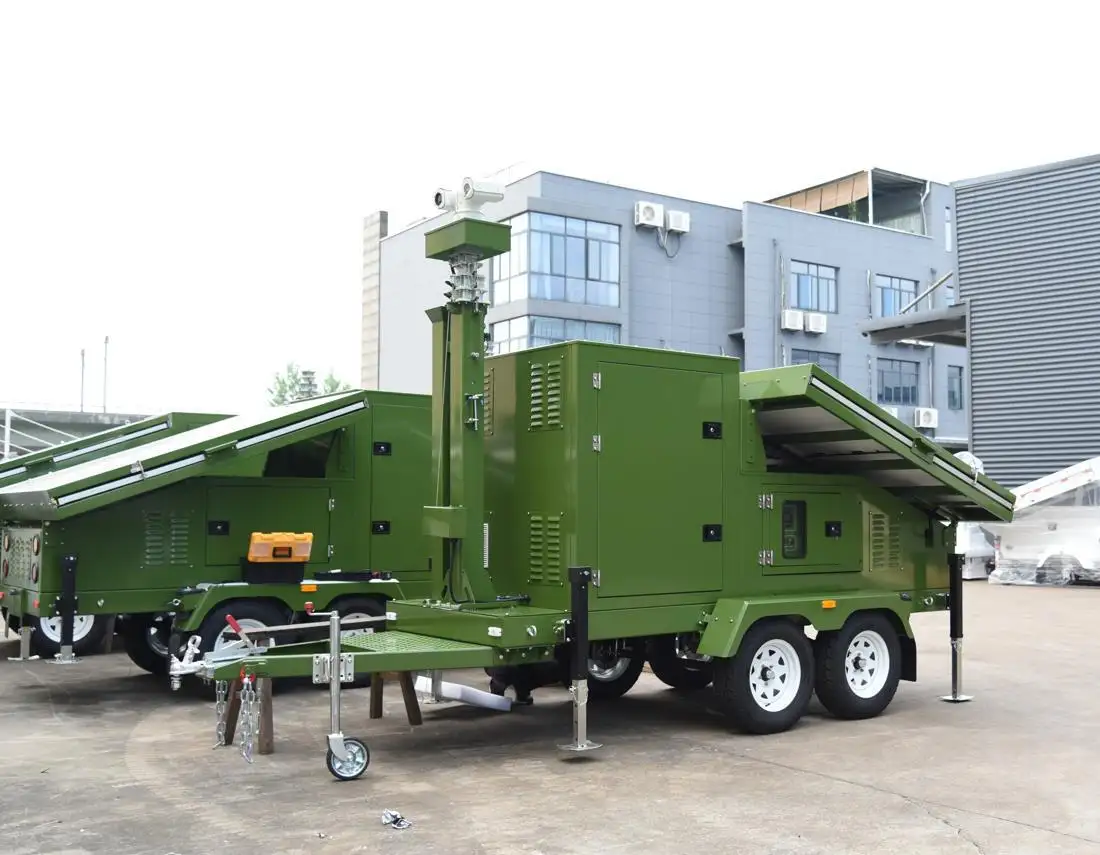

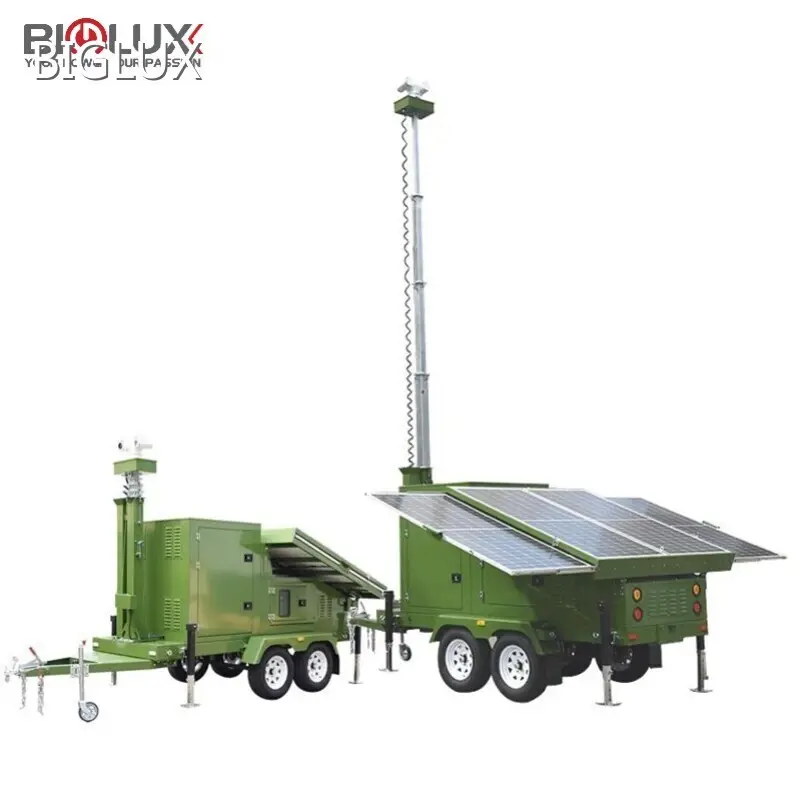

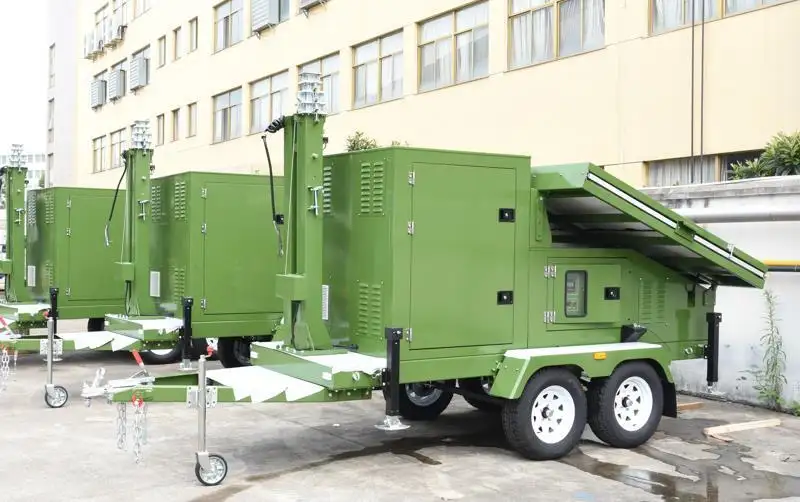

​Wifi Remote Security Surveillance Camera Solar Trailer

Biglux's SWifi Remote Security Surveillance Camera Solar Trailer mounted on trailers converts solar energy into electrical energy and stores the power in batteries. With the power, it can give security, surveillance, entertainment, education, etc to different applications, at the same time, provide power to other AC equipments if needed. Via app or software, the camera system can be remotely checked and controlled.

In addtion, because of the trailer and solar system, Remote Surveillance Camera System Tower is very flexible. Just be dragged and relocated.

Some configurations:

Solar Panel: 4× 435W, Mono, drawer design

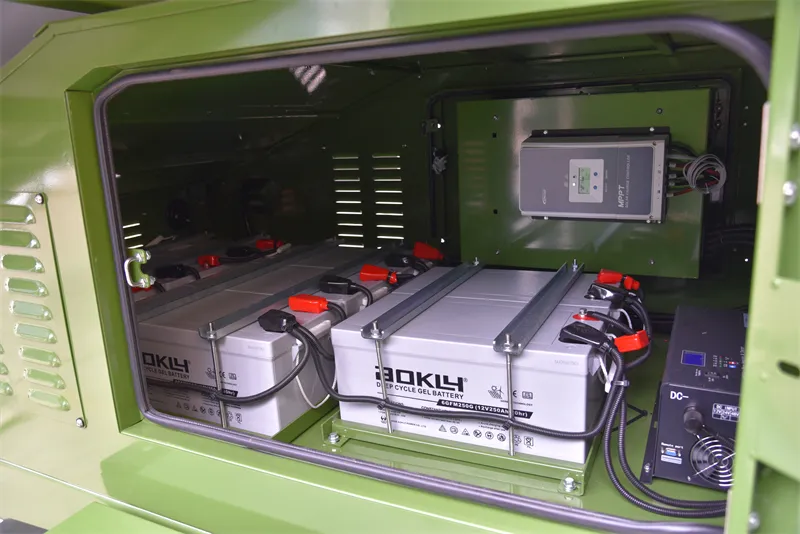

GEL battery: 8× 200Ah,DC12V, 19200wh, with DC48V system voltage
CCTV mounting box, junction connector; voltage power supply for camera
Spring Cable: 2 × Cat6 + 2 × Supply

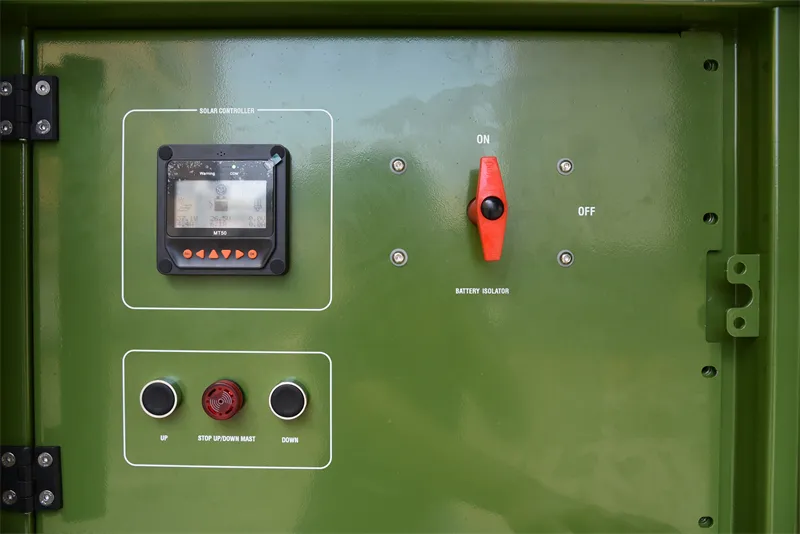

Controller: 60A MPPT,95% Efficiency
Backup Generator: Diesel Genset 5kW/5kVA, AC220V; with a battery charger, and hybrid system
Inverter: 3kW/3kVA,50/60 Hz,Pure Sine Wave with 2* 220VAC output sockets
Mast: Steel Q235,Square Telescopic type, galvanized, 8.5m, 5 Sections, Electric Winch Lifting, recommend load 5-70kg;

Trailer: EU Standard tail lights, Ball hitch, double Axle, 4pcs Manual Outriggers ; Longer with larger space
Charging time: 9.5 hours by solar
Running time: approx 115 hours for 100W with full charge at 80% DOD approx 96 hours for 120W with full charge at 80% DOD

The dimension:
3800*2200*2500mm (container shipping)
4800*2200*2500mm (Transporting)
4800*4400*9000mm (Operating)

This is customized version with a separate space in the trailer for clients devices.

We can customize according to clients needs or exact appliations.



There are different lifting type options of the telescopic mast:

for example, electric, manual, hydraulic lifting.





PTZ dome cameras, bullet cameras, and there are wide angle bullet cameras, and one cameras with both function of bullet and dome.

Different colors of the the Solar Remote Surveillance Camera System Tower available.

If you need your own colors, please let us know the color code, we will check with the supplier about the powders.

FAQ:

-Lithium batteries available? what's the difference of lead acid and lithium version.

Yes lithium Iron batteries (LFP) available. Lithium verison has much longer life space. but it is approx 3 times expensive than lead acid batteries too. And the lithium verion is more active, requiring special notice while transportation.

-What is the hybrid system for?

With this system, while the power is lack, it can be detected, and the diesel generator will work automatically. While with sunshine, the diesel generator stops working.

- Single Axle available?

Yes available, depends on the whole weight of the trailer, and the space you require.

If more details, please contact Biglux.

​
