BIGLUX Solar Power Trailer Systems
Product details of the solar power trailer systems
Quick Detail
Our solar power trailer systems varies from sizes, color and shapes. The product is proven to function timelessly on a basis of its reasonable design and fine craftsmanship. It can be used for a long time without breakdown. solar power trailer systems of BIGLUX Mobile Solar Power can play a role in various industries. The product has a considerable influence on the customers for its wide range of application prospects.
Product Description
Want to know more product information? We will provide you with detailed pictures and detailed content of solar power trailer systems in the following section for your reference.
High definition surveillance with mobile solar generator trailer off grid solar system for working site security monitoring
High definition surveillance with mobile solar generator trailer specification：
Base System
| Brand: | BIGLUX |
| Name: | Solar CCTV Trailer |
| Model: | HS4602G-6M |
| Material: | Steel Q235 |
| Powder: | Outdoor Type |
| Dimension: | Length×Width×Height |
| Transport: | 1900×1500×1100 (mm) |
| Operate: | 2900×2500×6200 (mm) |
| Weight: | 800kg / 1764lb |
| System Voltage: | DC24V |
| Work Temperature: | -35℃~50℃ / -31℉~122℉ |
Solar System
| Solar Panel: | 2 * 460W，Monocrystalline Silicon |
| Voltage: | DC42V |
Battery System
| GEL: | 4 * 200Ah，Free-main，Deep-cycle |
| Voltage: | DC12V |
| Series & Parallel: | 2 in series, then parallel |
| Power Capacity: | 9600Wh |
CCTV System
| Box: | Square type |
| Device: | Switch |
Control System
| Solar Controller: | MPPT,Hybrid 30A |
| Efficiency: | 95%+ |
| Detection & Protection: | Short-Circuit，Overload，High Voltage，High Temperature |
| Whole Machine: | Battery Isolator，Device on-off |
Mast System
| Body: | Aluminum Alloy 6063，Hard Anodized |
| Wire Rope: | Stainless steel 316，4mm |
| Type: | Round Telescopic |
| Height： | 6m / 20ft |
| Section: | 4 |
| Spring Cable: | 2 * Cat6e + 2 * Power Supply |
| Lifting Method: | Manual Winch |
| Recommended Loading: | 5kg ~ 50kg / 11lb ~ 110lb |
| Windproof: | 117km/h / 73mph |
Trailer System
| Standard: | US / AU / EU |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Axle: | Single Suspension |
| Outrigger: | 4 × Manual Galvanized |

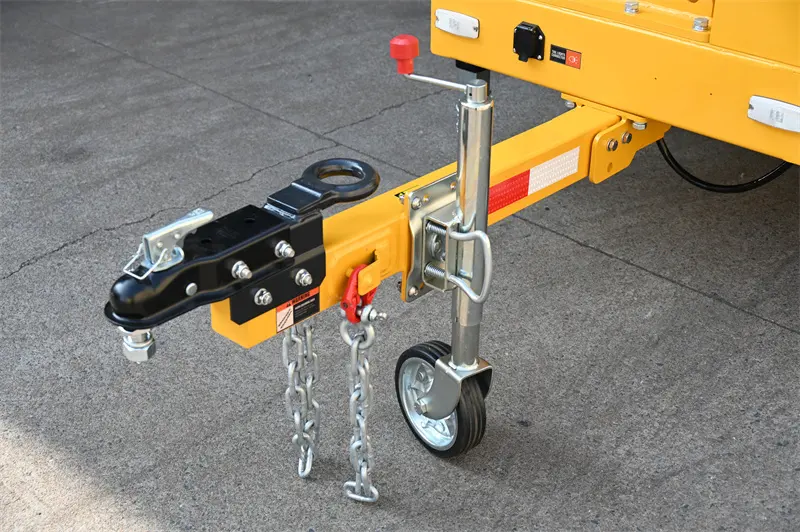

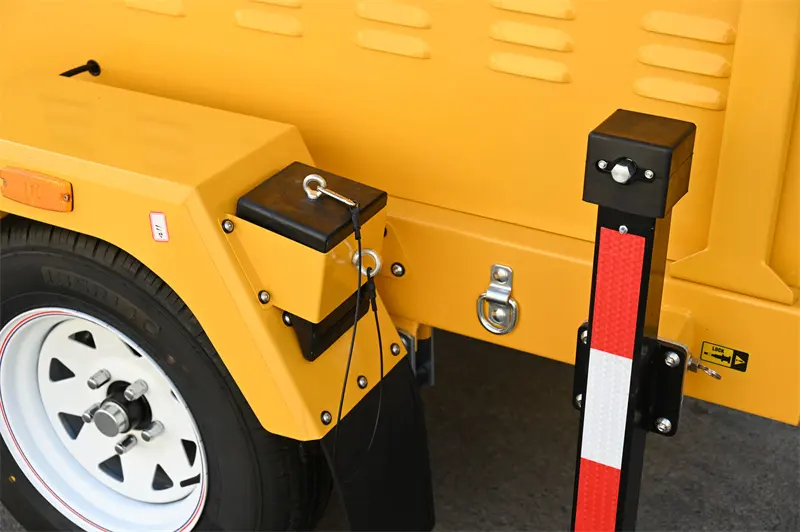

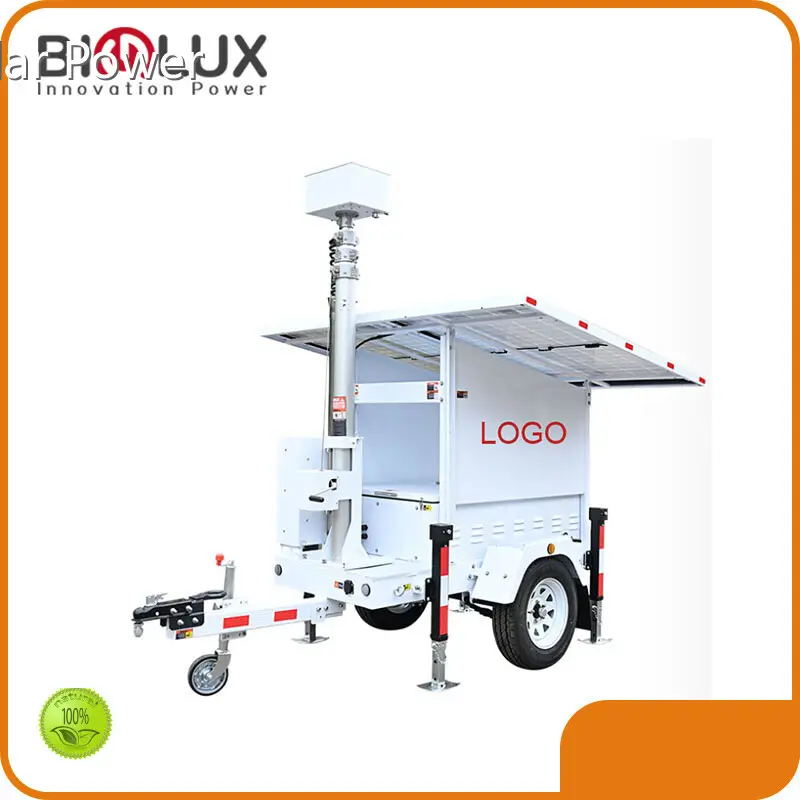

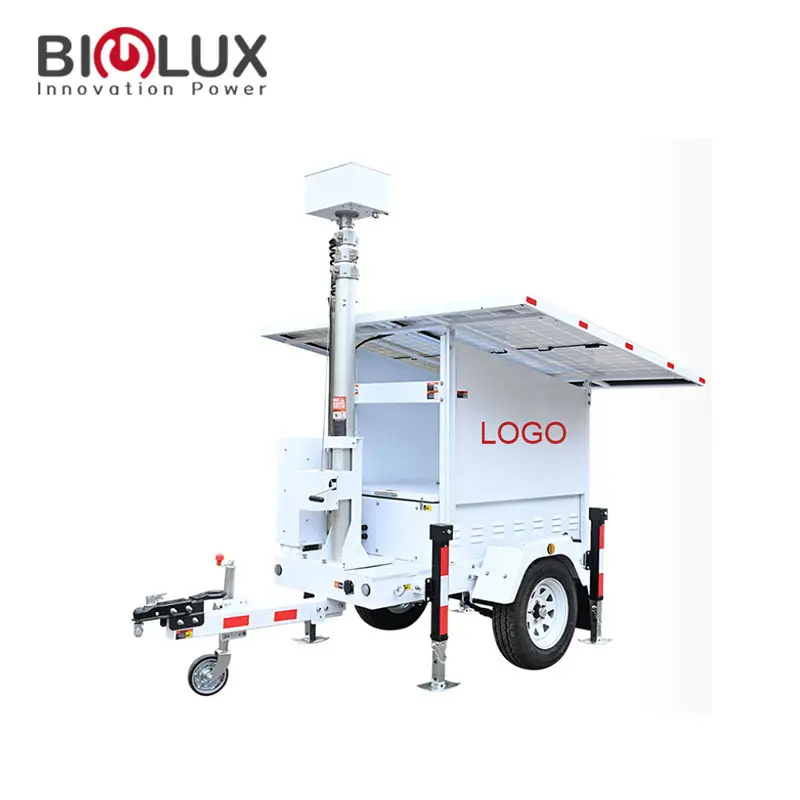

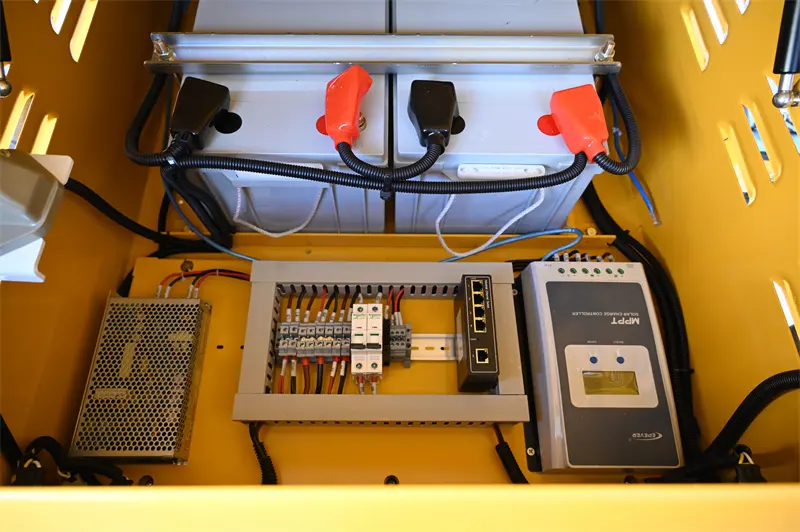

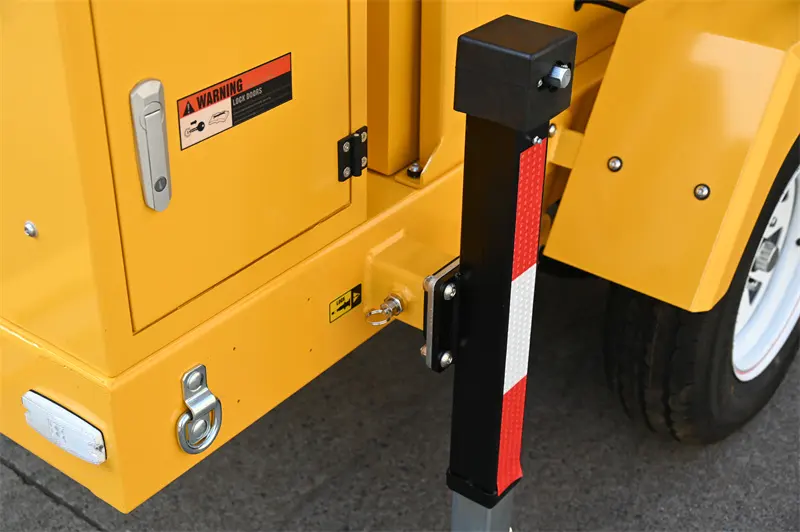

High definition surveillance with mobile solar generator trailer photo for reference.
Marketing News
How to solve the solar industry's trust problem
At present, the solar industry in Europe and the United States is facing some incomprehension, which is hindering the development of solar energy, so more trust needs to be built.
Trust is a very important thing in every industry. Lack of trust in the industry can lead to unnecessary explanations, as well as more time lost and too much money spent on hiring people to settle disputes. So trust becomes very important, and every new industry needs to focus on it.
In the solar industry, for example, the lack of trust means that all solar players have to spend more time and energy dealing with incomprehension.
The lack of trust in the solar industry revolves around one thing: data. Because they believe solar companies are constantly collecting personal information about their customers. But it doesn't, and since they are new to the solar industry, the idea may not be readily accepted.
In particular, after the sale of solar products, the service life of normal solar panels is about ten years, and the service life of batteries is five years. Other control systems are different. In addition, the current shortage of relevant technical personnel in the solar industry leads to many consumers unable to meet the future changes, so there is a crisis of trust.
Therefore, in the solar industry, our governments at all levels should set a good example, because the adjustment of new energy plays a crucial role in protecting the environment and reducing the use of fossil fuels. At the same time, encourage and train more solar industry practitioners, who will influence people around them imperceptively. At the same time, strengthen the training of solar industry technicians, which will greatly enhance people's understanding of solar energy from a professional point of view.
Besides, whenever there are different voices, or do not understand. It requires the patient treatment of every solar energy participant, which will help more consumers have better trust.
If you have any interested high definition surveillance with mobile solar generator trailer, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.
