Controller:

MPPT smart controller, 95% efficiency

Mounting Box:

Yes, for cameras easy mounting

Spring Cable:

2x cat6+2 power supply

Genset:

3KW petrol version with EPA

Trailer:

US/AU/EU standard and tail lights

Inquiry

Product details of the portable CCTV tower

Product Introduction

BIGLUX portable CCTV tower is designed using top class material and advanced tools & equipment under the guidance of highly skilled designers. All of our portable CCTV tower can be designed and customized, including pattern, logo and so on. It will surely accommodate customers' unique temperament and taste.

Solar Genset Hybrid System Powered LED Lights with Cameras

Product Name:	Hybrid Powered light and CCTV Tower
Model:	HL4604G-9E
Mobile Type:	Trailer with forklift holes
Solar Panel:	4 × 460W，Monocrystalline Silicon
System Voltage:	DC48V
GEL Battery:	8 × 200AH 12VDC, 19200WH (Lithium available)
LED:	4 × 100W outdoor
Lumens:	60000Lm
Beam angle:	20° 40° 60° 90° 110° for your option
Solar Controller:	MPPT
Efficiency:	95%+
Body:	Steel Q235 with powder
Genset:	3KW/3KV petrol version, EPA
Matched:	Matched chargers with hybrid system
Mast Height：	5 section 9m galvanized telescopic mast
Lifting Method:	Electric
Spring Cable:	2cat6+2 Power Supply wires
Recommended Loading:	5kg ~ 70kg
Trailer Standard:	US / AU / EU
Safety Chain	Yes
Tow Hitch:	50mm / 2'' Ball Type
Trailer Light:	7 Pin
Axle:	Single Suspension Bump Brake
Outrigger:	4 × Manual Galvanized
Cameras	(Optional) 1Dome, 2 bullet
Image	24/7 colorful image
Remote control	Yes via APP

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 7

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 8

Advantages of Solar Genset Hybrid System Powered LED Lights with Cameras:

- Powered by solar energy most of the time, it can fully adapt to various meteorological conditions;

-- Automatic control of equipment operation, which can realize unattended and remote monitoring; Only fill up regularly in winter when the sun is low, depending on how often you use it, say, a tank every 30 days.

-- Simple and convenient management and maintenance, very low operating costs;

- Self use or rent, a one-time investment, long-term benefits.

Petrol generator as backup:

We can prepare a backup generator for your exact application based on local sunshine situation.

There will be a separate room for the generator.

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 9

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 10

Hikvison's different kinds of cameras for your choice, for example:

24/7 colorful imaging

High quality imaging with 4 MP resolution

12 × optical zoom and 16 × digital zoom provide close up views over expansive areas

Audio visual alarm: The white flashing light and audible

warning can be triggered by certain events

Expansive night view with up to 150 m IR distance and 100 m white light

Focuses on human and vehicle targets classification based

on deep learning

Face capture: Up to 5 faces captured at the same time

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 11

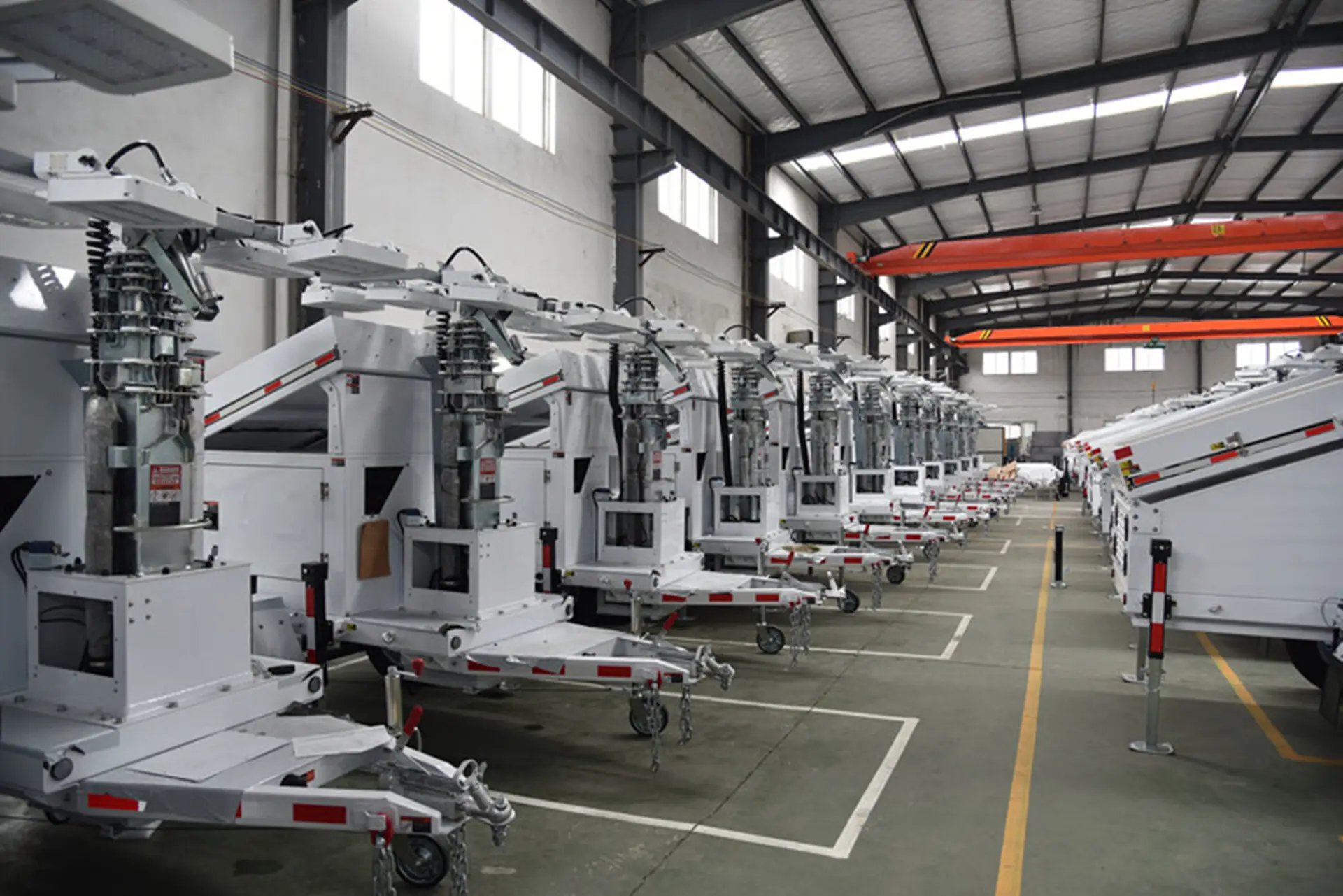

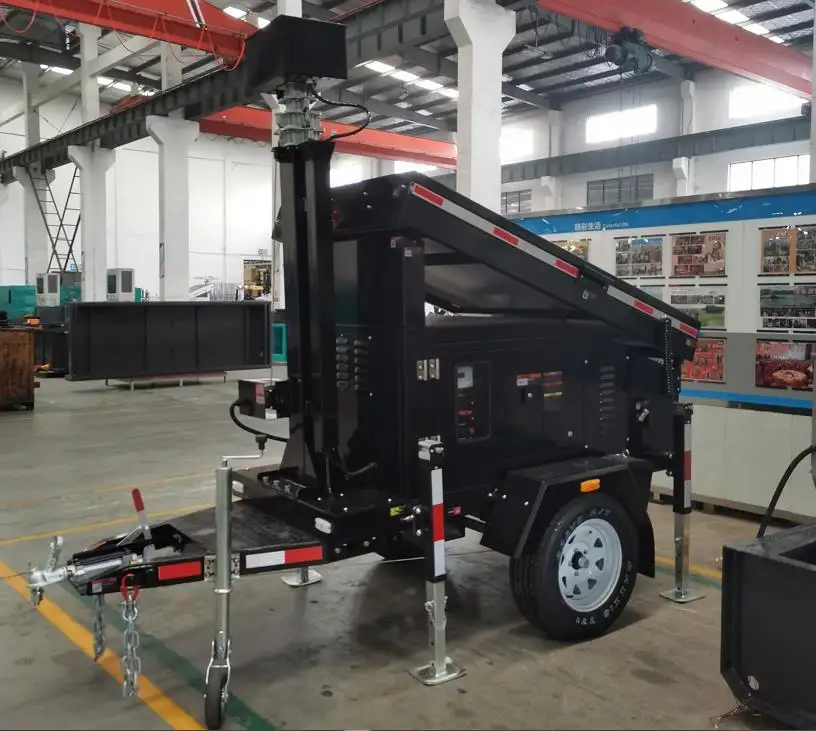

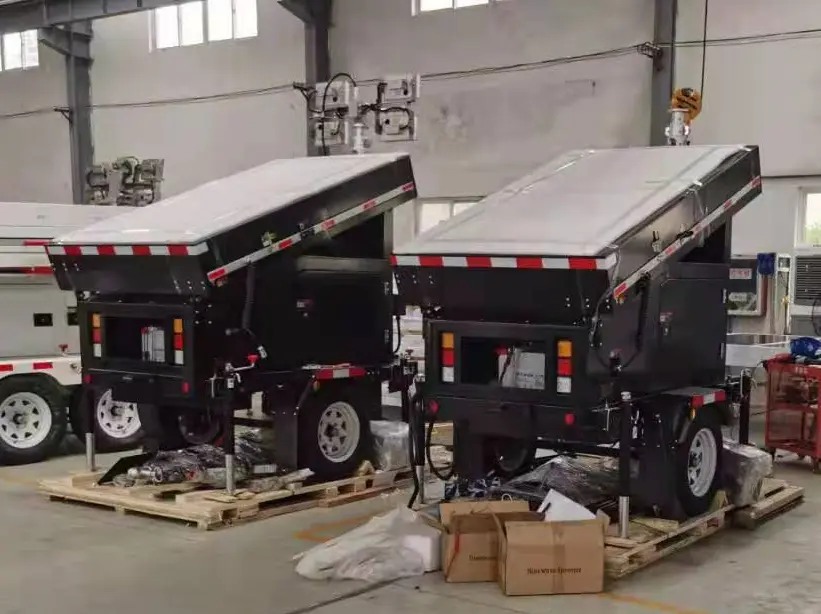

Doing assembly of the Solar Genset Hybrid System Powered LED Lights with Cameras

Good qualit sliders:

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 12

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 13

BIGLUX Portable CCTV Tower, MPPT Smart Controller, for Cameras Easy Mounting | BIGLUX 14

Biglux mobile solar light tower trailers are lighting in the parking lot of Qatar 2022 FIFA World Cup

The Qatar World Cup is the first to be held in the Northern Hemisphere winter and the first to be hosted by a country that has never played in a World Cup.

Alkassa 800MW photovoltaic power plant adopts 1500V inverter solution of solar power supply. After grid-connection, it becomes the first full-capacity grid-connection photovoltaic power plant in Qatar and the third largest single photovoltaic power plant in the world.

The power station will generate about 1.8 billion kilowatts of green electricity per year, reducing about 900,000 tons of carbon emissions, and supply clean electricity to the 2022 Qatar World Cup stadiums, helping the kingdom of Qatar fulfill its ambitious promise of the world's first "carbon neutral" World Cup.

You will find there are many mobile solar light tower trailers in the parking lot of Khalifa International Stadium. For your application, Biglux can customize the configurations accordingly. More details please feel free to contact us.

Company Advantage

• BIGLUX Mobile Solar Power has obvious geographical advantages with great traffic convenience.
• BIGLUX Mobile Solar Power was founded in After years of development, we become a leader in the industry.
• Our products have been exported to many foreign countries. They have occupied a certain proportion of the local market.
• BIGLUX Mobile Solar Power runs the business in good faith and strives to provide thoughtful and quality services for customers and to achieve mutual benefit with them.
You can purchase our quality mobile solar power,mobile solar generator,mobile CCTV tower at the most favorable price. Hurry up and contact BIGLUX Mobile Solar Power for details!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
