Product details of the solar mobile trailer



Product Overview


Our production technology of BIGLUX solar mobile trailer is ahead in the industry. The strict quality management is conducted according to international standards. This product is used in a multitude of applications.



Product Information


Compared with similar products, our solar mobile trailer's outstanding advantages are as follows.

Telescopic Mast Mobile Solar CCTV Trailer Portable Surveillance Trailer For Work Site Off Grid Solar System



Security camera with mobile solar trailer specification:



Base Trailer System

Brand: BIGLUX

Name: Solar CCTV Trailer

Model: HS4601G-6M

Material:Steel Q235

Powder:Outdoor Type

Dimension:Length*Width*Height

● Transport:1750*1450*1100 (mm) 5.7*4.7*3.6 (ft)

● Operate:2750*2450*6200 (mm) 9*8*20 (ft)

Weight:650kg / 1433lb

System Voltage:DC12V

Work Temperature:-35℃~50℃ / -31℉~122℉

Solar System

Solar Panel:1 * 460W ▲Monocrystalline Silicon

Battery System

GEL:2 * 200Ah

〓Free-main

〓Deep-cycle

Voltage:DC12V

Series & Parallel:2 in series, then parallel

Power Capacity:4800W·h

CCTV System

CCT Box:Square type

Device:Switch

Control System

Solar Controller: MPPT,Hybrid ▲30A

Efficiency:95%+

Detection & Protection:

〓Short-Circuit

〓Overload

〓High Voltage

〓High Temperature

Timer:Dusk & Dawn

Whole Machine:Battery Isolator ▲Device on-off

Mast System

Mast Body:Aluminum Alloy 6063 ▲Hard Anodized

Type:Round Telescopic

Height:6m / 20ft

Section:4

Spring Cable:2 * Cat6 + 2 * Power Supply

Lifting Method: Manual Winch

Recommended Loading:5kg ~ 50kg / 11lb ~ 110lb

Windproof:117km/h / 73mph

Trailer System

Standard:US / AU / EU

Tow Hitch:50mm / 2'' Ball Type

Trailer Light:7 Pin

Jockey Wheel:200mm / 8''

Axle:Single Suspension

Wheel Chock:2

Forklift Hole:2

Outrigger:4 * Manual ▲Galvanized

Warranty:2 years

Accessories

〓Operation Manual

〓Parts Manual

〓Controller Manual

〓Allen Wrench

〓Hex Wrench

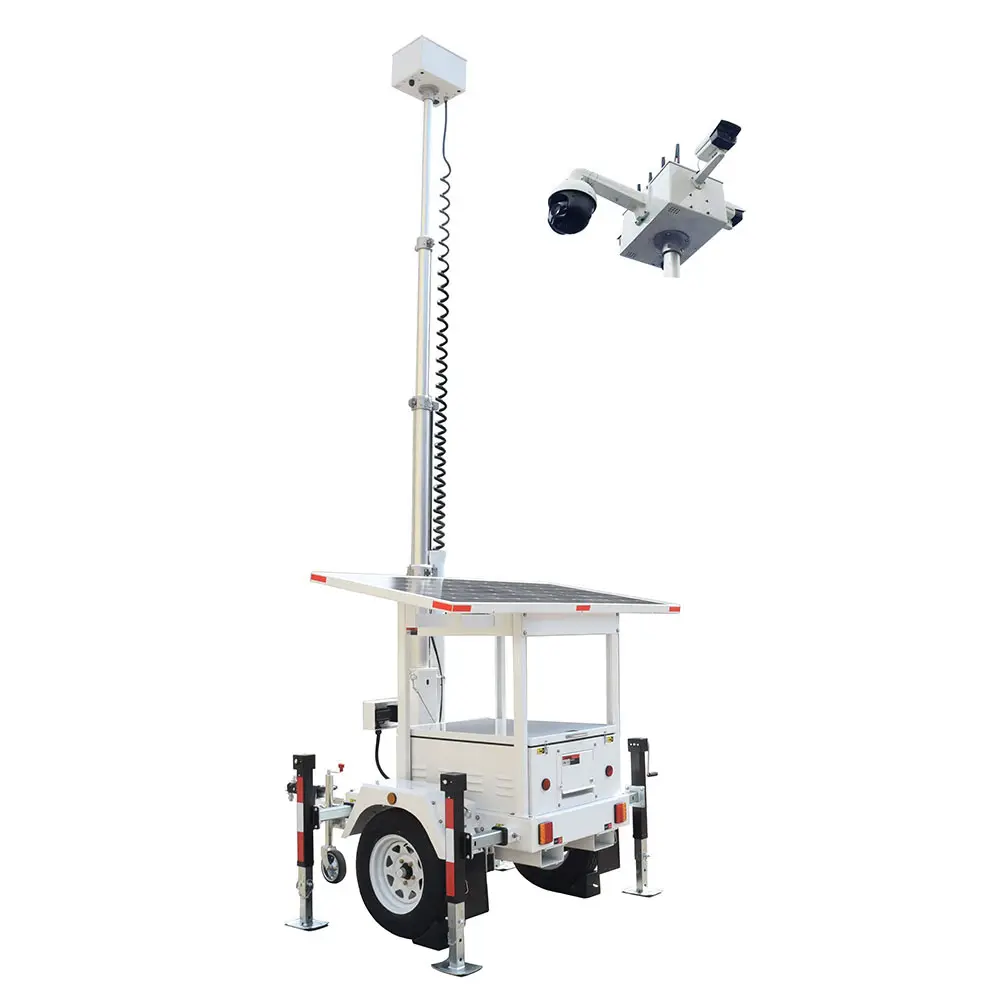

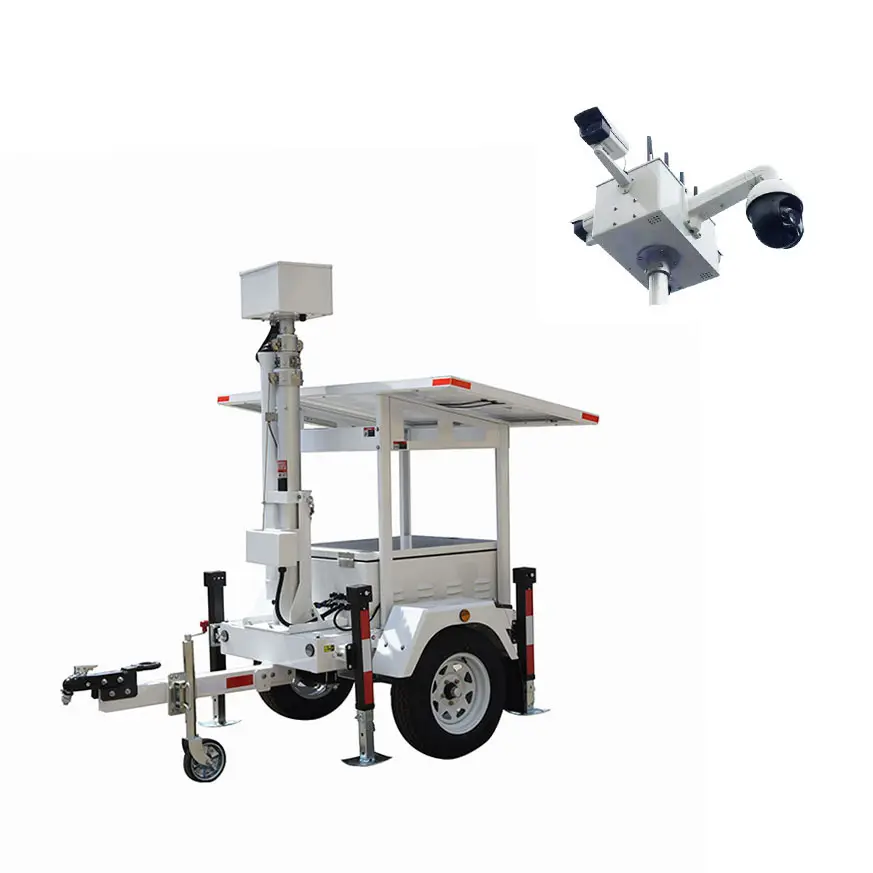

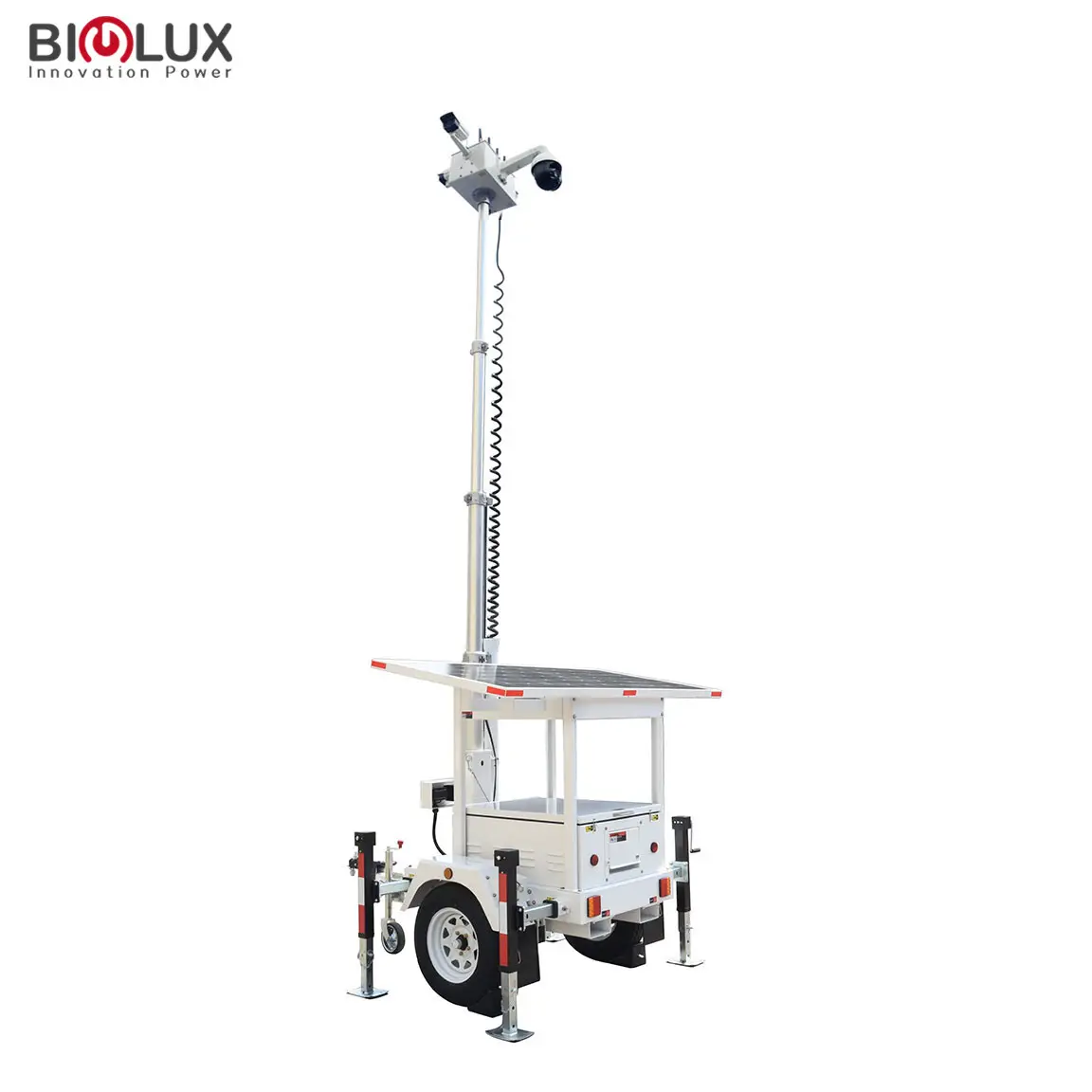

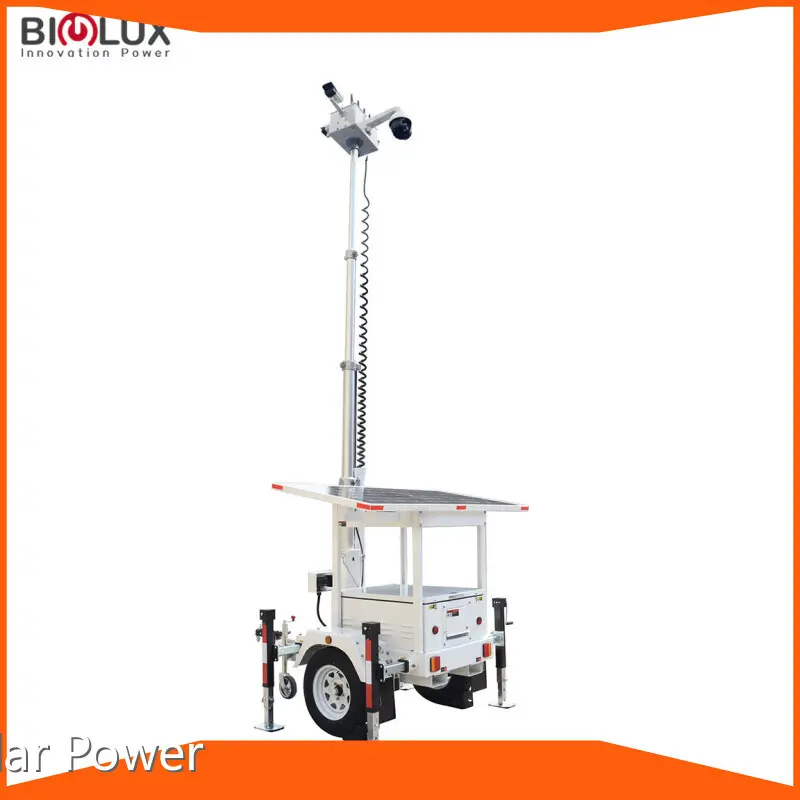

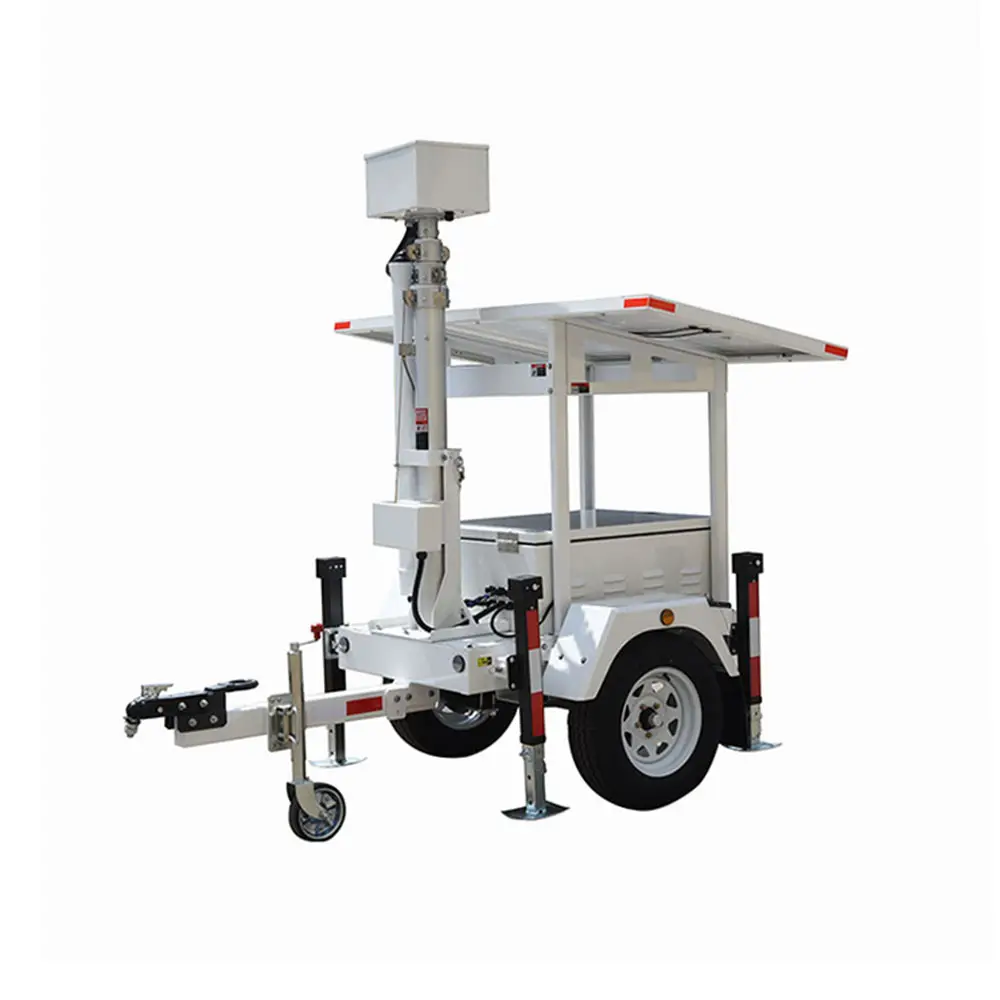

Security camera with mobile solar trailer photo for reference.

3



Knowledge:



Daily maintenance items of off-grid solar cctv power supply



In order to keep optimal long-term performance, it is recommended to check the following items.



● Check all exposed wires for insulation damage caused by sunlight, friction with other objects around, dry rot, insects or rodents. If there is any damage, repair or replace the lead in time.



● Check all terminals for signs of corrosion, insulation damage or burning/discoloration, and ensure terminals are tightened.



● Check for dirt, nesting insects or corrosion, and clean up in time if any of the above conditions exist.



● Check whether the lightning arrester is invalid. If the arrester is invalid, replace it in time to prevent the controller or other devices from being damaged by lightning.



● In some specific areas with special weather conditions, necessary maintenance is needed to ensure the normal operation of the system. For example, in dry and dusty areas with little rain, a lot of dust will accumulate on the solar panels, affecting the power generation efficiency of the system; In cold, snowy, frozen regions, solar panels can be covered in snow and ice, resulting in reduced or no power generation. Therefore, solar panels should be cleaned of dust regularly. Snow generated snow must be cleared in time.



● Check the growth of plants around the system regularly to see if there is a block on the solar panel. If there is a block, clean it in time.



● According to the use of the battery, every 35 years, replace the performance of the degraded battery.



If you have any interested in Security camera with mobile solar trailer , please welcome to contact us.
