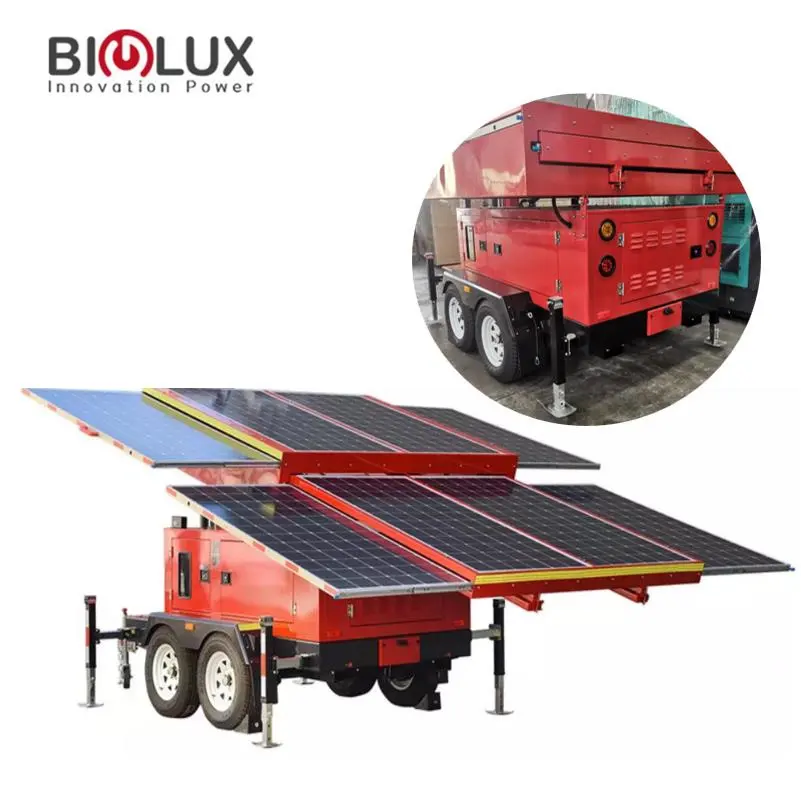

BIGLUX Brand 8x460W Mono Crystalline Silicon One 19.2 Hours for 1.6kW Mobile Solar Power Units...

Product details of the mobile solar power units

Product Specification

Certificate: CE

Product Overview

As a competitive product, mobile solar power units also ranks top in its design. Its climbing sale figure is the best testimony of the excellent performance and high quality. Mature sales network will not only contribute to the sales of mobile solar power units but also help BIGLUX develop more partners.

Product Description

We pursue perfection in every detail of the mobile solar power units we produce. And our products represent the excellent quality.

CONFIGURATIONS:

Solar Panel: 8* 460W, Monocrystalline Silicon

Battery: 16*200Ah,DC12V, 38400W·h lead acid batteries

Controller: 95% Efficiency smart MPPT controler

Genset: 5KW diesel genset

Charger: charger with AC 240/110V plug in

Output Sockets: 3 × AC240V / AC120V

Inverter:  8kW/8kVA,50/60 Hz,Pure Sine Wave

Trailer: US/EU/AU Standard, Ball Hitch, double Axles, 4pcs Manual Outriggers, safety chains

Charging Time: 8.8 hours with good sunshine

Running Time: 19.2 hours for 1.6KW at 80% DOD

Solar panels:

-It is drawer design with pulling in and out easily, saving space for transportation, and easy deployment

-The panels are lifting by hydraulic lifting power; and it is 0-30 degree adjustment based on your location with sunshine

QC Test of the Mobile Solar CCTV System Tower before packaging

Different colors and even your color available

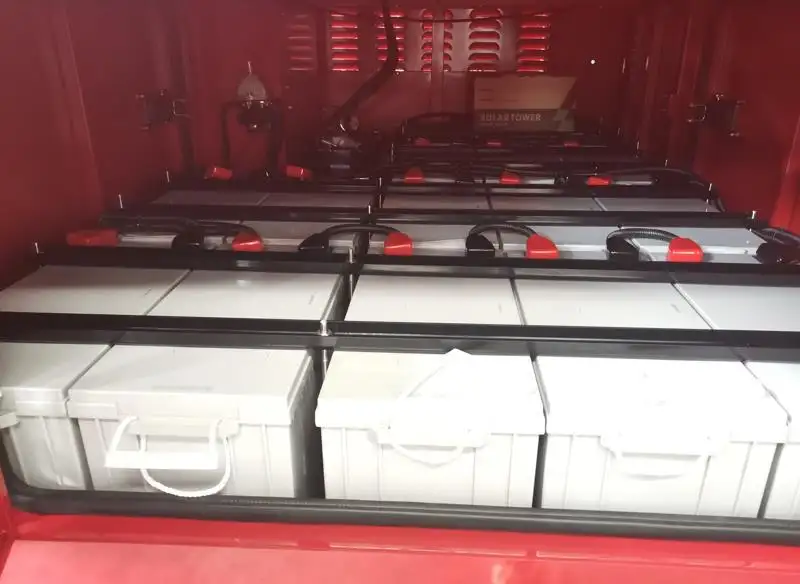

Lead acid batteries

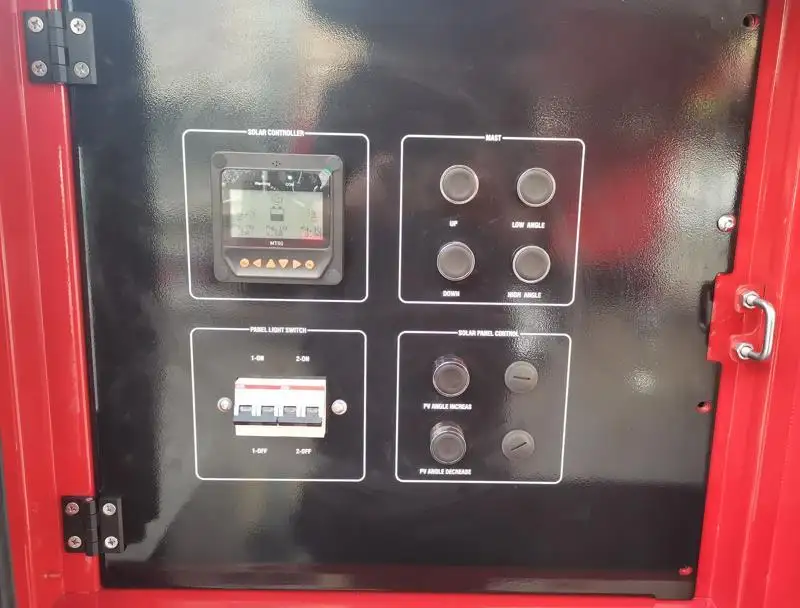

Control panels of the trailer

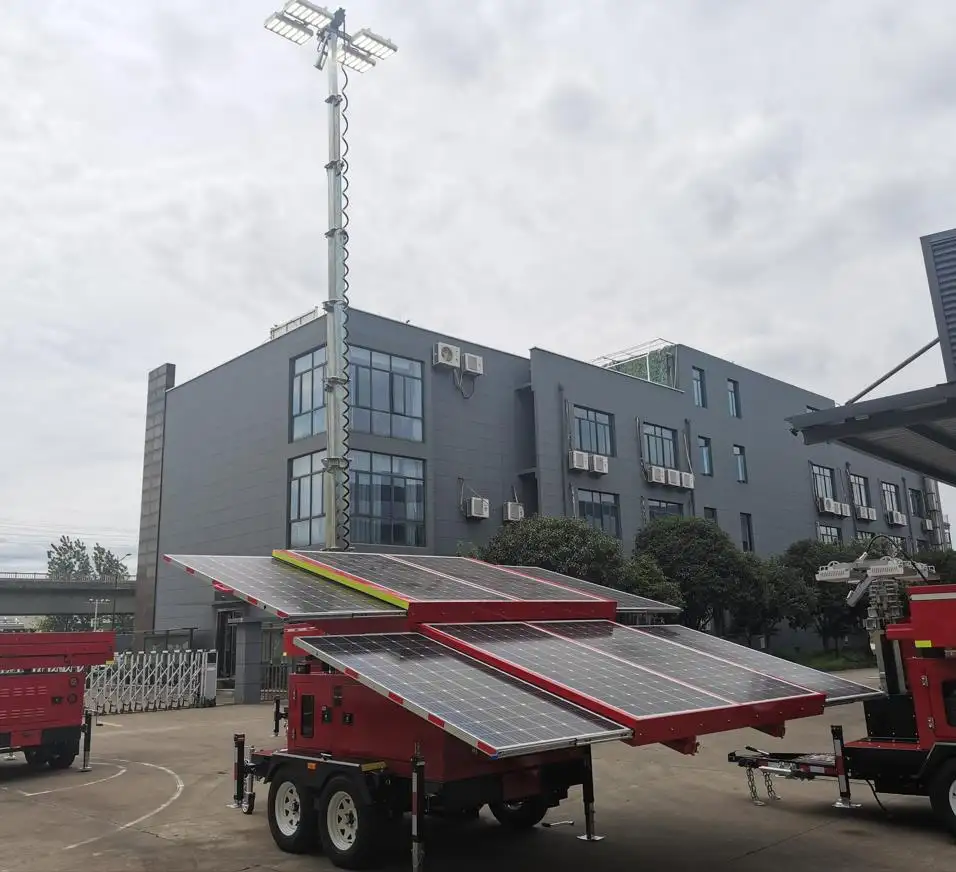

You can connect to high power led lights on a hydraulic lisfting telescopic mast as lighting tower

-Light illumination: different LED light towers with different brightness and height, then the cover size different. For some areas requiring exact information, you can try to use Dialux for simulations.

-Telescopic mast height: In some worksites, it is important to consider how high the mast of the lamp can be extended. You should also check the flexibility of the mast in case you need to adjust the angle of the light. Biglux led light towers have different lens, and after installation, there are options of rotation and tilt.

-Working hours of lamps: better to consider the solar charging time of the batteries, and the working time after each charge.

If more details of  mobile solar hybrid power station required, welcome to contact Biglux.
