BIGLUX- Mobile Solar Trailer And Solar Generator Manufacturer For 10+Years

BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 1
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 2
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 3
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 4
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 5
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 6
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 7
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 1
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 2
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 3
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 4
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 5
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 6
BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 7

BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier

Solar Panel:
2 × 460W,Mono
Battery:
4 × 200Ah,DC12V,9600W·h
Controller:
40A MPPT,95% Efficiency
Trailer:
US/EU/AU Standard, Ball Hitch
Charging Time:
8.8 hours
Inquiry

Product details of the solar camera trailer


Product Information

BIGLUX solar camera trailer is developed incorporating sophisticated technology and is made available to patrons at market leading prices. The product is tested on numerous quality parameters before supplying to patrons At present, solar camera trailer produced by BIGLUX INNOVATION LTD has already applied for national invention patents.



High definition camera installed on mobile trailer 6 to 9 meters mast with solar generator for security monitoring



Mobile surveillance trailer together with solar generator specification:

Base System

Brand: BIGLUX
Name: Solar CCTV Trailer
Model:  HS4602G-6M
Material: Steel Q235
Dimension: Length×Width×Height
Transport: 1900×1500×1100 (mm)
Operate: 2900×2500×6200 (mm)
Weight: 800kg / 1764lb
System Voltage: DC24V
Work Temperature: -35℃~50℃ / -31℉~122℉

Solar System

Solar Panel: 2 × 460W Monocrystalline Silicon
Voltage: DC42V

Battery System

GEL: 4 × 200Ah,Free-main,Deep-cycle
Voltage: DC12V
Series & Parallel: 2 in series, then parallel
Power Capacity: 9600W·h

CCTV System

Box: Square type
Device: PoE Switch

Control System

Solar Controller:  MPPT,Hybrid,30A
Efficiency: 95%+
Detection & Protection: Short-Circuit,Overload,High Voltage,High Temperature
Whole Machine: Battery Isolator,Device on-off

Mast System

Body: Aluminum Alloy 6063,Hard Anodized
Type: Round Telescopic
Height: 6m / 20ft
Section: 4
Spring Cable: 2 × Cat6e + 2 × Power Supply
Lifting Method:  Manual Winch
Recommended Loading: 5kg ~ 50kg / 11lb ~ 110lb
Windproof: 117km/h / 73mph

Trailer System

Standard: US / AU / EU
Tow Hitch: 50mm / 2'' Ball Type
Trailer Light: 7 Pin
Outrigger: 4 × Manual Galvanized
Warranty: 2 years

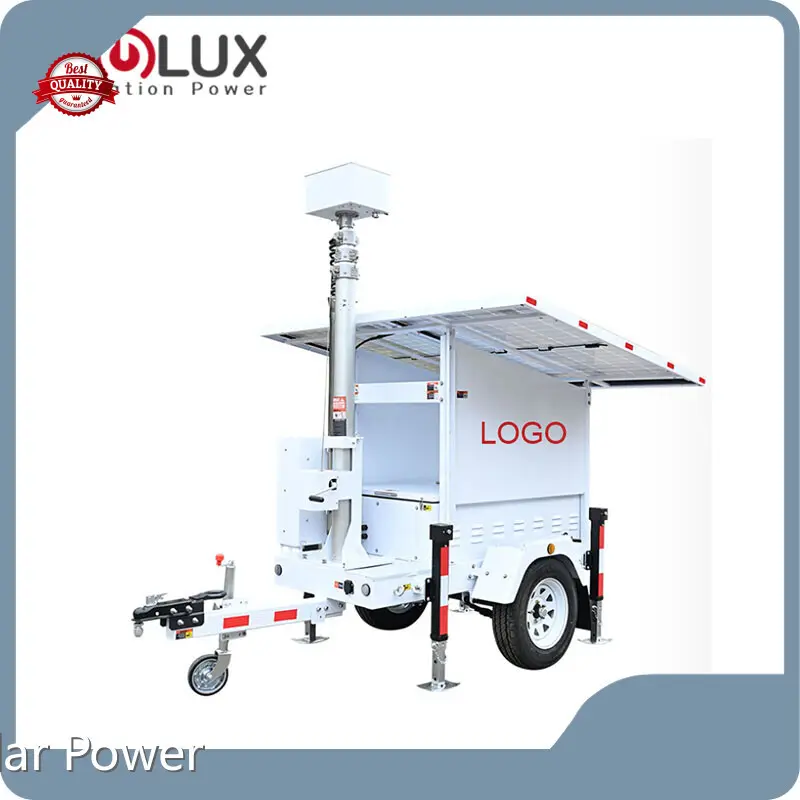

Mobile surveillance trailer together with solar generator photo for reference

BIGLUX Brand 8.8 Hours 9600W·h Solar Camera Trailer 95% Efficiency Supplier 8

Marketing News



Australia's largest solar farm is starting to export to the grid



The Australian arm of French renewable energy developer Neoen is rapidly moving towards full production on a massive 400-megawatt solar farm in the western Queensland Downs, which is now being exported to the grid.



Neoen Australia said the 400-megawatt solar farm, part of its $600 million Western Downs Green Power Centre, was under way and nearing completion in testing work with Queensland transmission network operator Powerlink and the Australian Energy Market Operator (AEMO).



While final testing and commissioning activities were continuing, Queensland Energy Minister Mick de Brenni said in a statement that the project, developed on a 1,500-hectare site near Chinchilla, had already begun producing electricity into the national electricity market.



"The largest solar farm under construction in Australia has reached a major milestone, with the project now able to export more than 100 megawatts of clean energy to the country's grid," the statement said.



"This solar farm is the largest of its kind in Australia and will be able to generate electricity for an area the size of Logan and Redlands combined," de Brenny said. "This is an important step towards achieving the government's target of 50% renewable energy by 2030."



As with the mission of our company, Using renewable solar energy to contribute to the goodness of the world.



BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years.



If you have any interested Mobile surveillance trailer together with solar generator, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.
