BIGLUX- Mobile Solar Trailer And Solar Generator Manufacturer For 10+Years

BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 1
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 2
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 3
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 4
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 5
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 6
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 1
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 2
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 3
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 4
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 5
BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 6

BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory

Solar Panel:
4 × 460W,Mono
Battery:
8 × 200Ah,DC12V,19200W·h
Controller:
60A MPPT,95% Efficiency
Lamp:
6 × 100W LED,IP65,120000Lms
Mast:
Steel Q235,Square Telescopic type,9 m,5 Sections
Inquiry

Product details of the mobile solar power trailer


Product Introduction

It is true that a fantastic design is a boon to the popularity of mobile solar power trailer. In our strict quality assurance procedures, any defects of the products have been avoided or eliminated. The excellent characteristics give the product greater market application potential.

LED flood light Solar Portable Telescopic Mast Mobile Light Tower for World Cup Qatar 2022



LED lights with mobile solar trailer specification:



Base System

Name:Solar Light Tower

Model: HL4604G-9H-1006

Material:Steel Q235

Powder:Outdoor Type

Dimension:Length×Width×Height

2600×2275×2400 (mm) Transport

3800×6475×9250 (mm) Operate

Weight:2100kg / 4630lb

System Voltage:DC48V

Work Temperature:-35℃~60℃ / -31℉~140℉

Solar System

Solar Panel:4 × 460W Monocrystalline Silicon 72pcs

Battery System

Battery GEL:8 × 200Ah Free-main Deep-cycle Electric Fan

Voltage:DC12V

Series & Parallel:4 in series, then parallel

Power Capacity:19200W·h

Light System

LED:6 × 100W Module Outdoor Type

Protection Class:IP65

Lumens:90000Lm

Beam angle:20° 40° 60° 90° 110°

Voltage:DC48V

Control System

Solar Controller: MPPT

Efficiency:95%+

Detection & Protection:

  • Short-Circuit

  • Overload

  • High Voltage

  • High Temperature

Timer:Dusk & Dawn

Whole Machine:

  • Battery Isolator

  • Each Light on-off

  • Light up-down

  • Mast up-down

Mast System

Body:Steel Q235 Hot Dip Galvanized

Type:Square Telescopic

Height:9m / 30ft

Section:9

Rotation:Horizontal 360° Manual Vertical 90° Electric

Spring Cable:Power Supply

Lifting Method:Hydraulic

Recommended Loading:5kg ~ 100kg / 11lb ~ 220lb

Windproof:118km/h / 73mph

Trailer System

Standard:US / AU / EU

Tow Hitch:50mm / 2'' Ball Type

Trailer Light:7 Pin

Axle:Single Suspension Bump Brake

Wheel Chock:2

Forklift Hole:2

Outrigger:4 × Manual Galvanized

Warranty:2 years

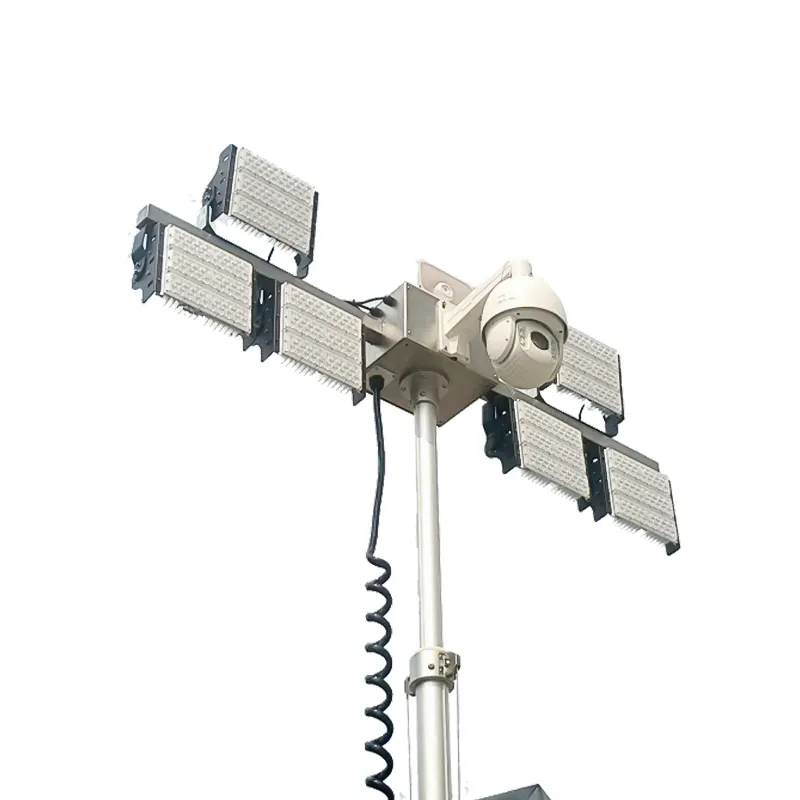

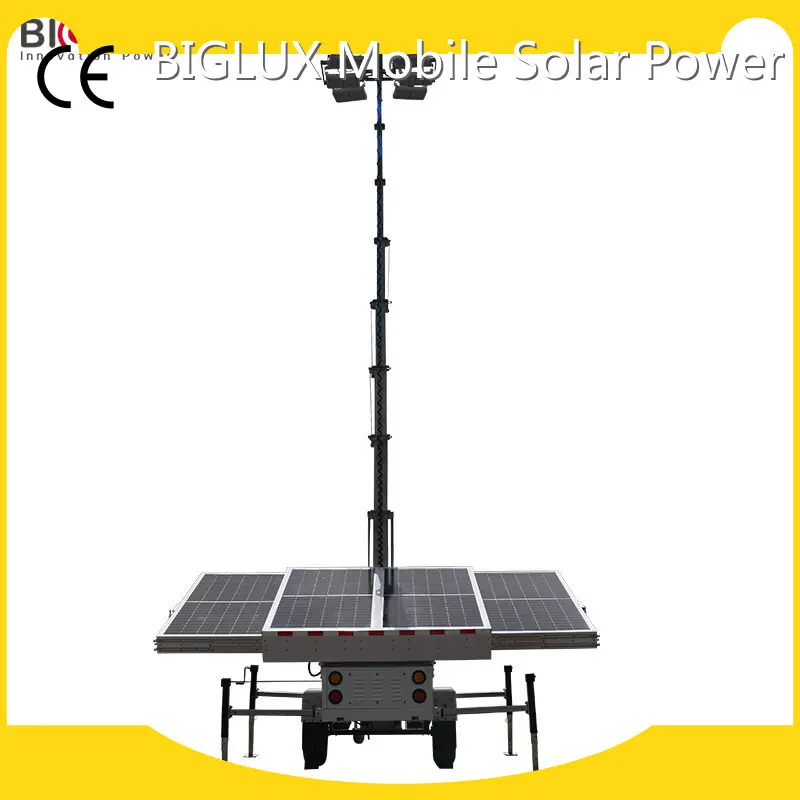

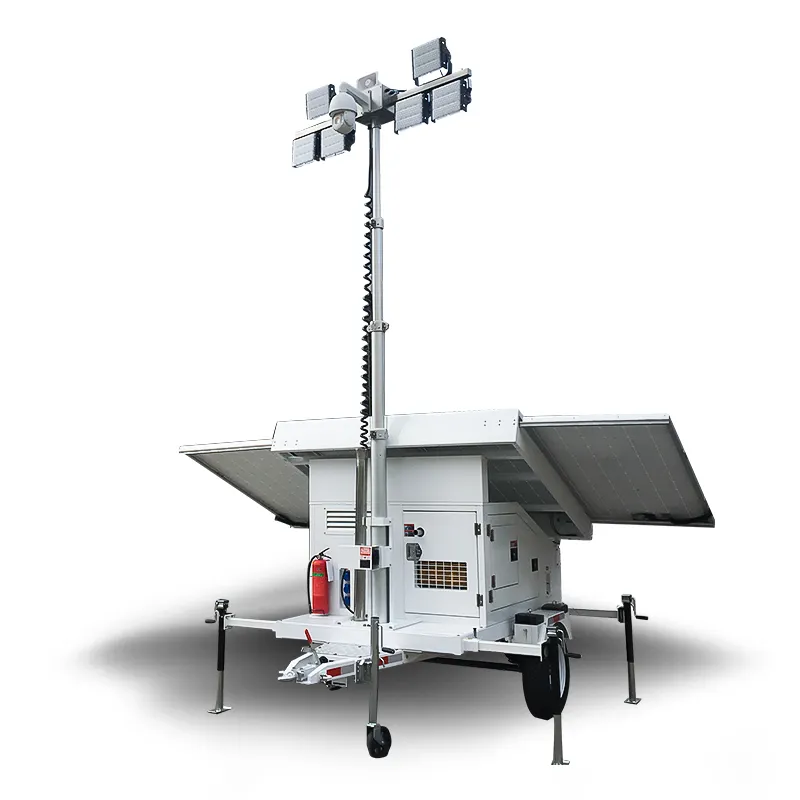

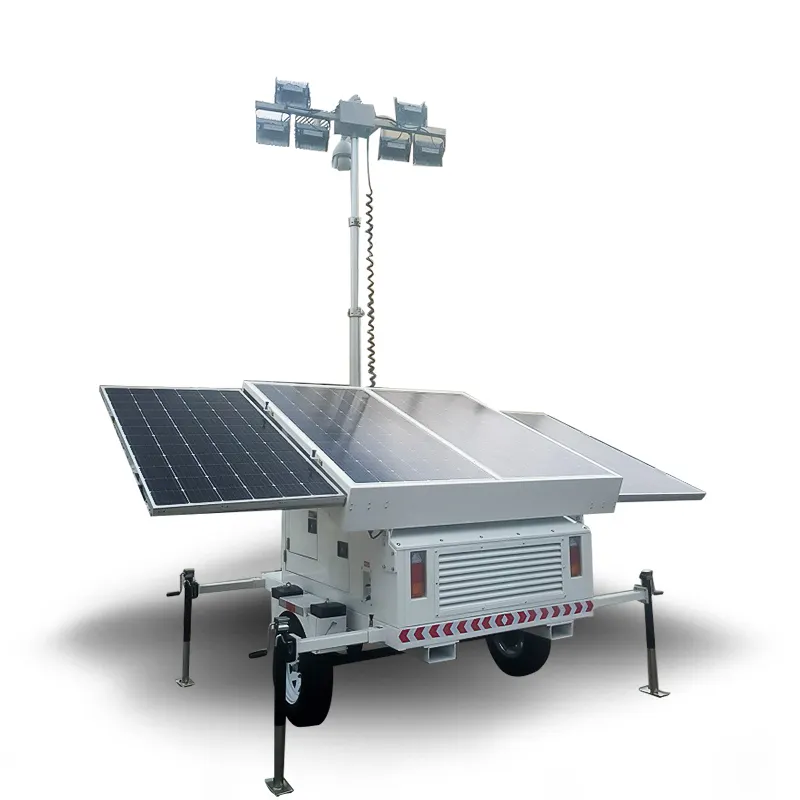

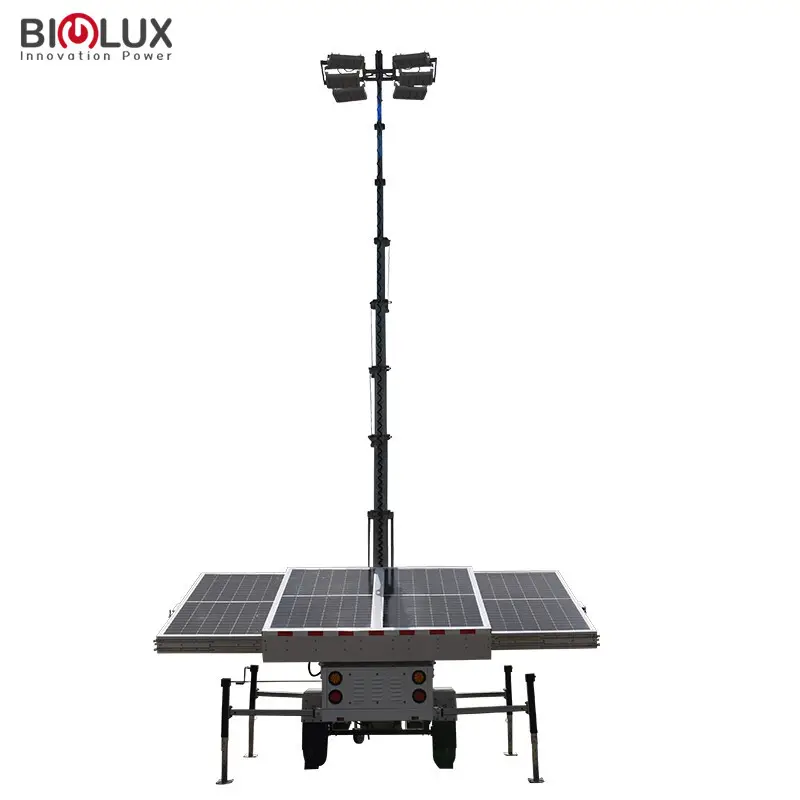

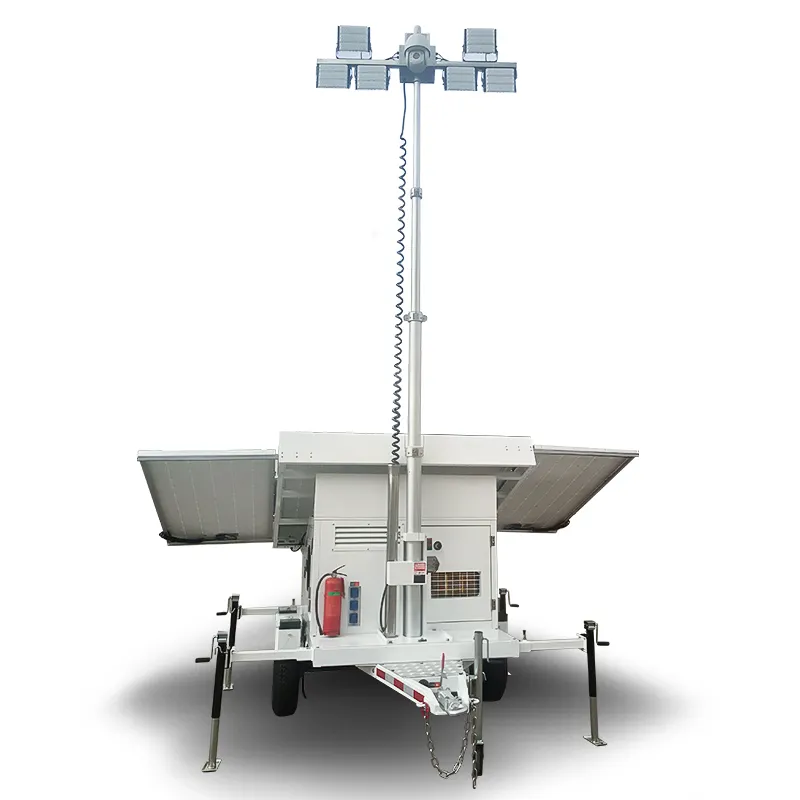

LED lights with mobile solar trailer photo for reference.

BIGLUX Brand 6 × 100W LED 60A MPPT Mobile Solar Power Trailer 4 × 460W Factory 7



Knowledge News



What Matters Should Be Paid Attention To In The Daily Maintenance Of Solar Monitoring Cameras?



Check and maintain battery (group) and photovoltaic controller and inverter



Check and maintain batteries



(1) Keep the battery room clean to prevent dust from entering; Keep the room dry and well ventilated and well lit, but should not direct sunlight onto the battery.



(2) Indoor fireworks are strictly prohibited, especially when the battery is in charging state.



(3) When maintaining batteries, maintenance personnel should wear protective glasses, body protective equipment, and use insulation devices to prevent personnel from damaging batteries electric shock to prevent battery short circuit and circuit break.



(4) Often carry out the normal inspection of the battery.



(5) When using the battery normally, please do not use any organic solvent to clean the battery, and do not remove the battery for safety valve or in the battery to add any substance, battery discharge should be charged as soon as possible, so as not to affect the capacity of the battery.



Inspection and maintenance of pv controller and inverter



(1)The operation and use of photovoltaic controller and inverter should be carried out in strict accordance with the requirements and provisions of the operation manual. Check whether the input voltage is normal before starting; When operating, we should pay attention to whether the order of the switch is correct, and whether the indicator light and the head of the table are normal.



(2)Controller and inverter in the occurrence of open, over current, over voltage, overheating and other faults, generally will enter the automatic protection state and stop working. Once these equipment is down, do not turn on immediately, to find out the cause and repair the power again.



(3)When there is high pressure in the inverter chassis or cabinet, operators should not open the chassis or cabinet, and the cabinet door should be locked at ordinary times. When the ambient temperature exceeds 30 ° C, take cooling and heat dissipation measures to prevent device faults and prolong device service life. Check the temperature, sound and smell inside the machine regularly.



(4)Maintenance and overhaul of controllers and inverters: Strictly check whether the cables of controllers and inverters are loose (such as fuses, fans, power modules, input and output terminals, and grounding), and immediately repair the loose cables.



BIGLUX develops and implements the most energy saving and convenient mobile solar energy products over ten years, Our products mainly include mobile solar power tower fully featured with lighting tower, CCTV security trailer, telecom tower and power charging trailer.



If you are interested LED lights with mobile solar trailer, please feel free to contact us. Or click here to have direct access to our website at www.bigluxled.com to get the right solution.




Company Advantage

• The products of BIGLUX Mobile Solar Power have been sold in major domestic markets. Besides, they are exported to br /> • Founded in our company has been continuously developed in the years. With strong management, technology and service strength, we have successfully entered the leading position in the industry.
• BIGLUX Mobile Solar Power is committed to providing quality products and services for customers. We have a talents team with rich experience and mature technology. The team members focus on innovation and excellence.
• Our company has established a perfect pre-sales and after-sales service system. As a result, we can effectively protect the consumers' rights and interests and provide quality products and services for consumers.
Hello, thanks for your support and attention to BIGLUX Mobile Solar Power! If you are interested in our medicine or services, please call our hotline. We are looking forward to working with you!
