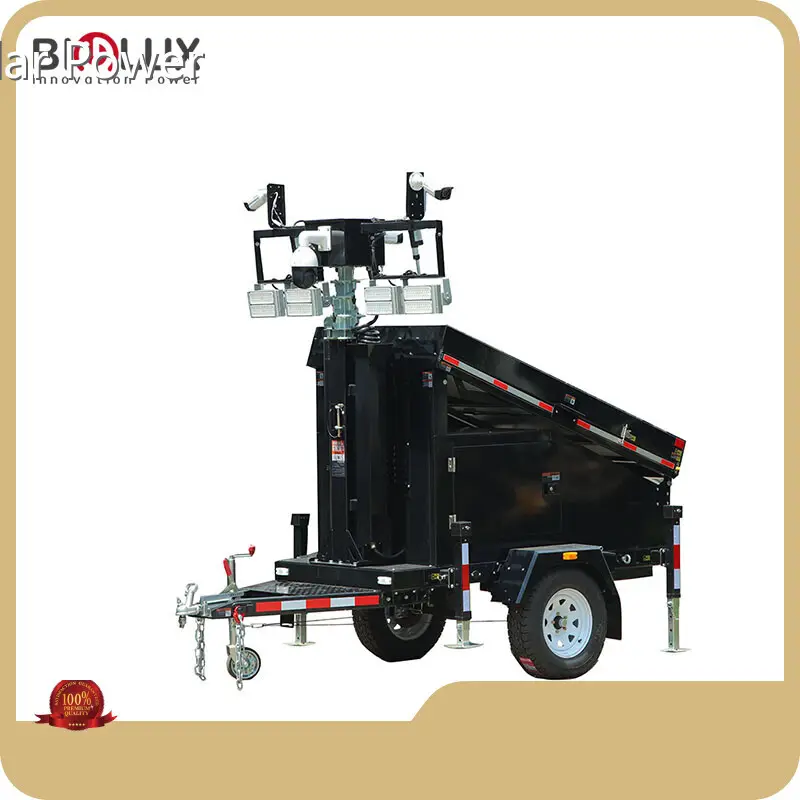

Product details of the mobile solar security trailer
Quick Overview
BIGLUX INNOVATION LTD has adopted new technology to change the existing structure of mobile solar security trailer. We use the guaranteed raw materials we source for trusted suppliers to guarantee the quality of this product. BIGLUX INNOVATION LTD' requirement for the quality and properties of mobile solar security trailer is very high.
Product Description
Based on the production concept of 'detail determines result, quality creates brand', our company strives for excellence in every detail of products.
Solar Genset Hybrid System Powered LED Lights with Cameras
| Product Name: | Hybrid Powered light and CCTV Tower |
| Model: | HL4604G-9E |
| Mobile Type: | Trailer with forklift holes |
| Solar Panel: | 4 × 460W，Monocrystalline Silicon |
| System Voltage: | DC48V |
| GEL Battery: | 8 × 200AH 12VDC, 19200WH (Lithium available) |
| LED: | 4 × 100W outdoor |
| Lumens: | 60000Lm |
| Beam angle: | 20° 40° 60° 90° 110° for your option |
| Solar Controller: | MPPT |
| Efficiency: | 95%+ |
| Body: | Steel Q235 with powder |
| Genset: | 3KW/3KV petrol version, EPA |
| Matched: | Matched chargers with hybrid system |
| Mast Height： | 5 section 9m galvanized telescopic mast |
| Lifting Method: | Electric |
| Spring Cable: | 2cat6+2 Power Supply wires |
| Recommended Loading: | 5kg ~ 70kg |
| Trailer Standard: | US / AU / EU |
| Safety Chain | Yes |
| Tow Hitch: | 50mm / 2'' Ball Type |
| Trailer Light: | 7 Pin |
| Axle: | Single Suspension Bump Brake |
| Outrigger: | 4 × Manual Galvanized |
| Cameras | (Optional) 1Dome, 2 bullet |
| Image | 24/7 colorful image |
| Remote control | Yes via APP |
Advantages of Solar Genset Hybrid System Powered LED Lights with Cameras:
- Powered by solar energy most of the time, it can fully adapt to various meteorological conditions;
-- Automatic control of equipment operation, which can realize unattended and remote monitoring; Only fill up regularly in winter when the sun is low, depending on how often you use it, say, a tank every 30 days.
-- Simple and convenient management and maintenance, very low operating costs;
- Self use or rent, a one-time investment, long-term benefits.
Petrol generator as backup:
We can prepare a backup generator for your exact application based on local sunshine situation.
There will be a separate room for the generator.
Hikvison's different kinds of cameras for your choice, for example:
24/7 colorful imaging
High quality imaging with 4 MP resolution
12 × optical zoom and 16 × digital zoom provide close up views over expansive areas
Audio visual alarm: The white flashing light and audible
warning can be triggered by certain events
Expansive night view with up to 150 m IR distance and 100 m white light
Focuses on human and vehicle targets classification based
on deep learning
Face capture: Up to 5 faces captured at the same time
![BIGLUX Brand 19200W·h GEL 2 at Rear Custom Mobile Solar Security Trailer 11]()
Doing assembly of the Solar Genset Hybrid System Powered LED Lights with Cameras
![BIGLUX Brand 19200W·h GEL 2 at Rear Custom Mobile Solar Security Trailer 14]()
Biglux mobile solar light tower trailers are lighting in the parking lot of Qatar 2022 FIFA World Cup
The Qatar World Cup is the first to be held in the Northern Hemisphere winter and the first to be hosted by a country that has never played in a World Cup.
Alkassa 800MW photovoltaic power plant adopts 1500V inverter solution of solar power supply. After grid-connection, it becomes the first full-capacity grid-connection photovoltaic power plant in Qatar and the third largest single photovoltaic power plant in the world.
The power station will generate about 1.8 billion kilowatts of green electricity per year, reducing about 900,000 tons of carbon emissions, and supply clean electricity to the 2022 Qatar World Cup stadiums, helping the kingdom of Qatar fulfill its ambitious promise of the world's first "carbon neutral" World Cup.
You will find there are many mobile solar light tower trailers in the parking lot of Khalifa International Stadium. For your application, Biglux can customize the configurations accordingly. More details please feel free to contact us.
