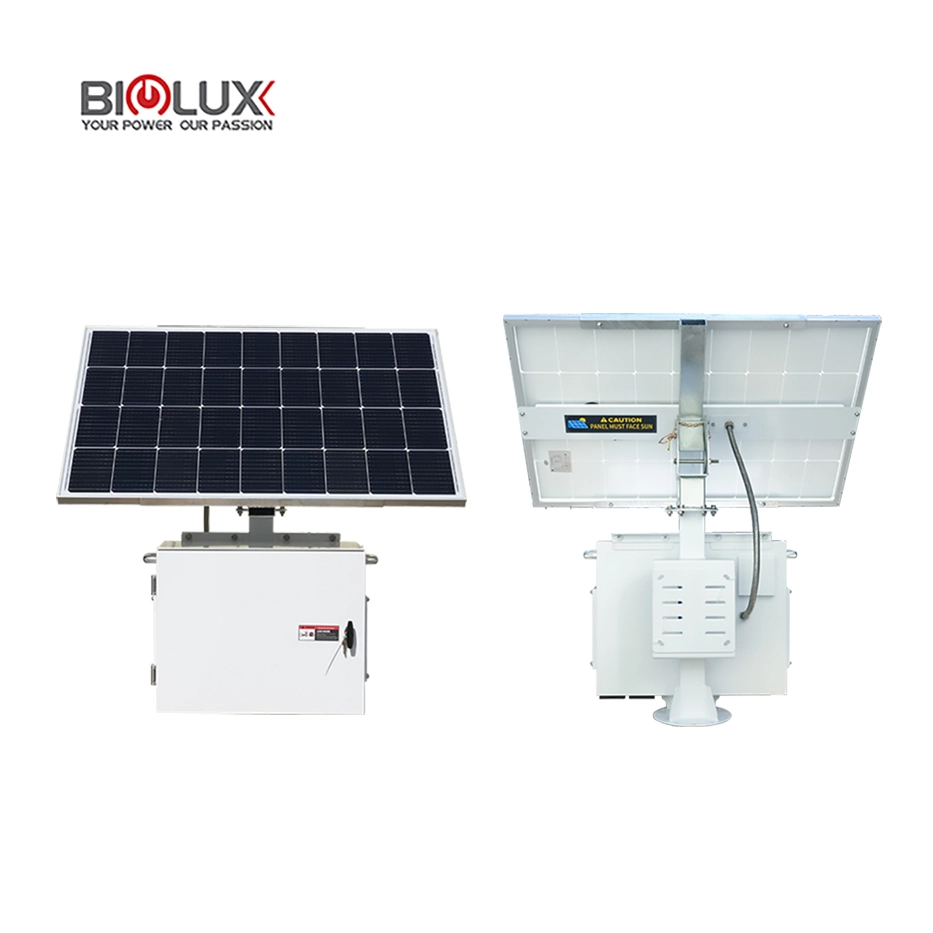

HiTOP Solar CCTV Tower Kit With 4MP PTZ Bullet 4G Network Camera Kit
Video Description
Products Details
1. Solar Panel
The solar panel of the solar powered CCTV tower system features four core specifications: 200W power capacity (for steady energy supply), bifacial monocrystalline silicon structure (to boost light absorption), superior power generation efficiency (against conventional panels), and uninterrupted power supply assurance (for continuous energy support).
It offers four main benefits:
✔ stable electricity supply (200W output meets daily energy demands)
✔ increased solar energy capture (bifacial design absorbs more sunlight)
✔ efficient energy conversion (higher power generation lowers energy waste)
✔ hassle-free utilization (fits long-term outdoor scenarios without power concerns).
2. Flexible Adjustment
The adjustable solar panel mechanism supports two key structural capabilities: 90° rotational adjustment (for horizontal direction tuning) and 90° tilting (for vertical angle modification), along with adaptable installation flexibility (to suit diverse installation environments) and optimal solar irradiation layout (to maximize light utilization).
It offers three main benefits:
✔ multi-angle adaptability (90° rotational range & 90° tilt suits various landscapes)
✔ convenient terrain compatibility (adaptable deployment cuts down installation duration)
✔ maximized power output (optimal solar irradiation boosts energy generation).
3. CCTV Box
The CCTV box comes with four key built-in components: 1280Wh lithium-ion battery (for power reserve), built-in MPPT charge controller (to optimize charging performance), and selectable AC power input (for backup power support).
It offers four main benefits:
✔ durable power storage (enables prolonged operation)
✔ high-efficiency energy capture (built-in MPPT controller enhances energy conversion)
✔ versatile power supply choices (selectable AC input adapts to diverse power sources)
✔ consistent operational performance.
4. Camera Mounting Plate
The camera mounting bracket comes with two core installation capabilities: side and bottom mounting locations (for versatile camera positioning), a tool-free quick-mount structure (to streamline the setup procedure), and 12V DC power output (to deliver power to surveillance cameras).
It offers three main benefits:
✔ versatile camera positioning (dual-location mounting adapts to various monitoring requirements)
✔ efficient installation process (tool-free quick-mount cuts down on labor expenses)
✔ universal power compatibility (12V DC output works with the majority of surveillance cameras).
5. Strobe Light
The strobe light comes with two key components: high-brightness LED beads (for intense flashing output), and a user-friendly switch (for instant activation).
It offers four main benefits:
✔ Strong visual deterrence (intense flashing deters unwanted activity at night)
✔ Instant activation (one-switch operation for quick on-demand response)
✔ Surveillance system compatibility (seamlessly pairs with monitoring setups)
✔ Steady nighttime performance (maintains consistent flashing for reliable warning).
Products Specifications
| Product | HiTOP Mobile Solar CCTV Tower Kit |
| Model | BL1P-L0NHTPS0N |
| Solar Panel | 1 × 200W, Bifacial |
| Panel Adjustment | 90° rotatable and tiltable |
| MPPT Controller | 15A MPPT |
| Battery | LFP, 1280Wh, DC12V/24V/48V |
| Box Accessories | 1 inner temp fan, 2 side strobes |
| Estimated Solar Charging Time | 5.4 hours |
| Battery Backup Time | 72 Hours Under 14W |
| Mounting & Dimensions | Pole Mounting: Pole diameter ≤φ88-φ148 |
| Wall Mounting: M12 chemical/expansion bolts needed | |
| HiPT Mounting: Direct Mounting | |
| Cameras Mounting Plate |
1 per side, 2 at bottom
|
| Working Temp | -20℃~55℃ |
| Box Size | 620*500*330mm |
| Panel Size | 1170*780*30mm |
| Typical Combined Install Dimensions | 1700*508*1246mm |
| Gross Weight | 90KG |
| QTY in 20GP / 40HQ | 30 units / 60 units |
| Application Scenarios | Outdoors, Parking Lots, Construction Site, Mining & Oil Site, Emergency, Industry, Rental, Job Site, and so on. |
Mounting Methods
The BIGLUX HiTOP solar CCTV tower kit installs with minimal technical expertise. Position the tower on stable, level ground with clear sightlines to monitored areas. Extend and secure the stabilizing outriggers for stability. Assemble the telescopic mast sections and raise to the required height. Mount the 4MP PTZ bullet camera on the designated bracket, ensuring 360-degree coverage capability. Connect the camera to the solar power system using weatherproof cables. Insert a 4G SIM card into the network module for remote connectivity. Adjust the solar panel angle toward maximum sunlight exposure.
Power on the system and configure camera settings via the mobile app or web interface. Test pan, tilt, zoom functions and verify live video feed transmission. The solar powered CCTV tower unit operates independently once activated.
Packaging & Logistics
Packaging Details
* Sample Shipment: 1 solar CCTV kit sample is packed in a wooden box. This ensures the product stays intact during transit, protecting its components like the solar panels and surveillance fixtures.
* Bulk Shipping: 30 units can be loaded into a 20GP container. 60 units fit perfectly into a 40HQ container.
Logistics Highlights
We handle every step with precision—from using forklifts to load the well-packed solar surveillance kits onto trucks to ensuring they're securely placed in containers for global delivery. Whether you need a single unit for testing or bulk orders for large-scale projects, our packaging and logistics ensure safe, on-time arrival.
FAQ
Q: Can I customize the LOGO and colors on your solar CCTV kit?
A: Yes, color and logo can be customized.
Q: Does this HiTOP include a camera?
A: No, it doesn't. Generally, customers prefer to install cameras locally. To ensure a plug - and - play experience, we provide DC outputs of 12V/24V/48V and ample CCTV box space for installation. Of course, if needed, we also offer Hikvision cameras and pre-installation services.
Q: What are the standards for the electrical components of HiTOP?
A: Our solar panels, MPPT controllers, batteries, etc., are from well - known brands and all comply with various certifications such as CE and FCC.
Q: What's the production lead time?
A: A standard sample is generally shipped within 2 weeks; batch orders generally take about 1 month. Please kindly consult our sales team for specifics.
Q: How many cameras can this HiTOP power?
A: The specific quantity depends on the power of the camera. Generally, our customers install one PTZ camera or 2-3 turret-type cameras. We have installation plates on the bottom, front, and back of the box for customers to install.
Q: What's the warranty period?
A: 2-year standard warranty. During the warranty period, if any product failure occurs, we will provide technical support and free replacement parts.
